IKAR DB-A3 TRIPOD / X4002XX00

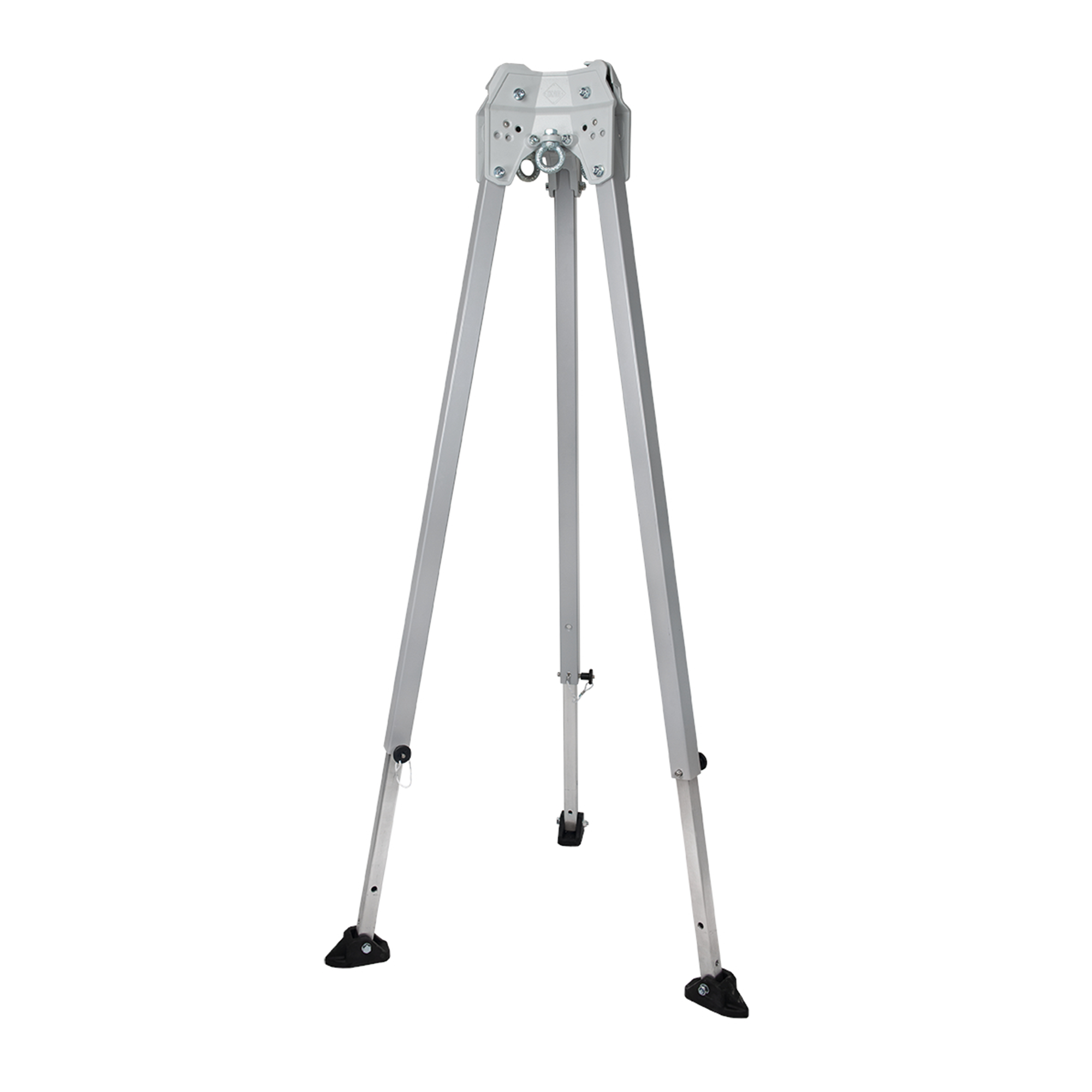

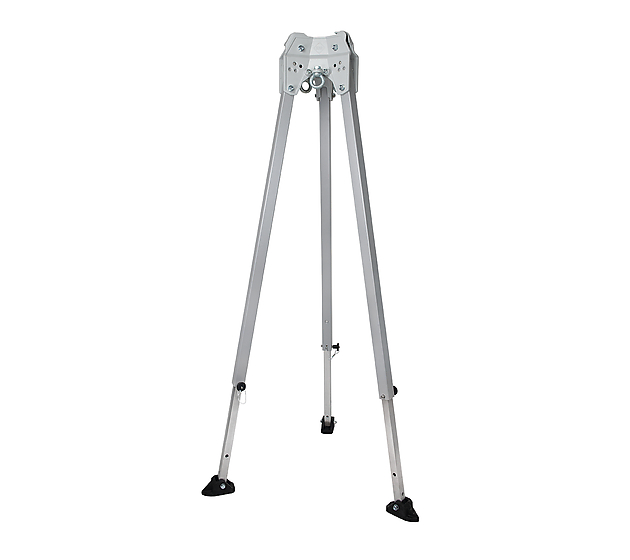

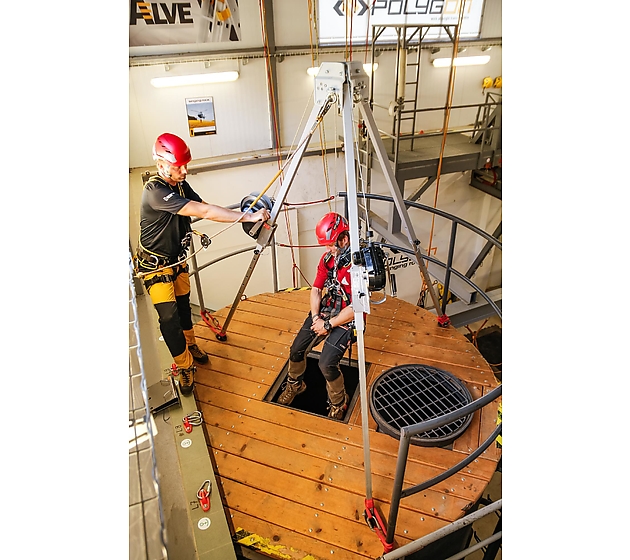

Portable tripod with adjustable locking legs and 3 intergated pullies. Head construction allows a variety of leg angles and a safety-chain-free design. Ideal for economical compliance in many basic confined space, fall arrest applications and rescue.

  • up to 2.54 m high aluminium tripod with corrosion-resistant coating featuring 3 bolts-in anchor points
  • 1.56 m in collapsed setup for transportation, weight is 24 kg
  • 2 stage independently adjustable telescopic legs with stainless steel pins and foldable rubber shoes with spiked edges - the individually adjustable legs are advantageous as they can be used on uneven ground

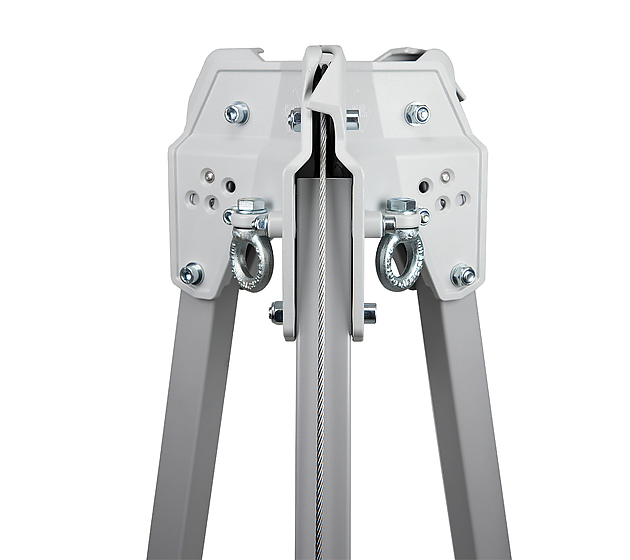

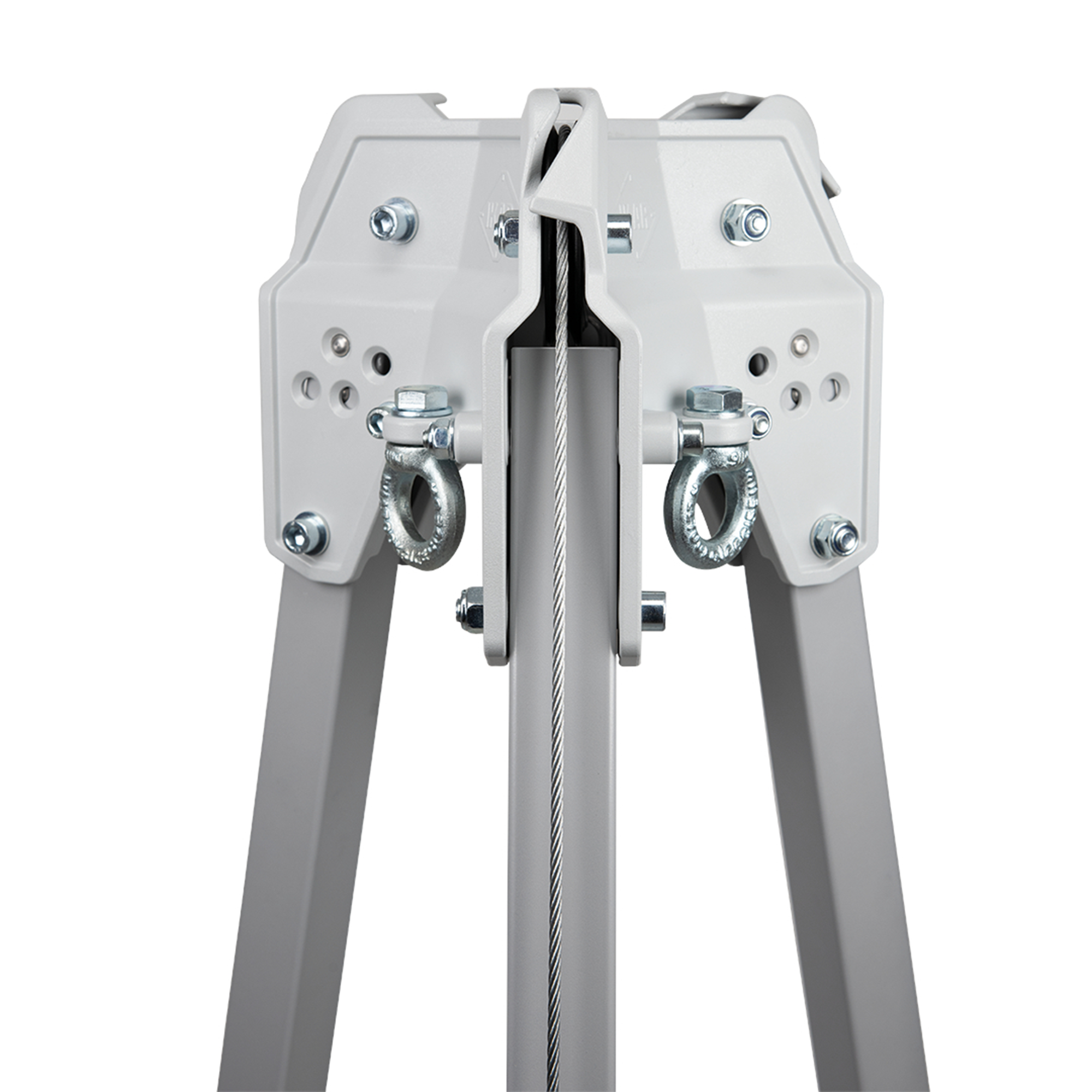

  • 3 pulleys built into a die casted head
  • tripod is designed to be used without support safety chain, which reduces a risk of tripping
  • suitable for two persons with a load capacity of 300 kg

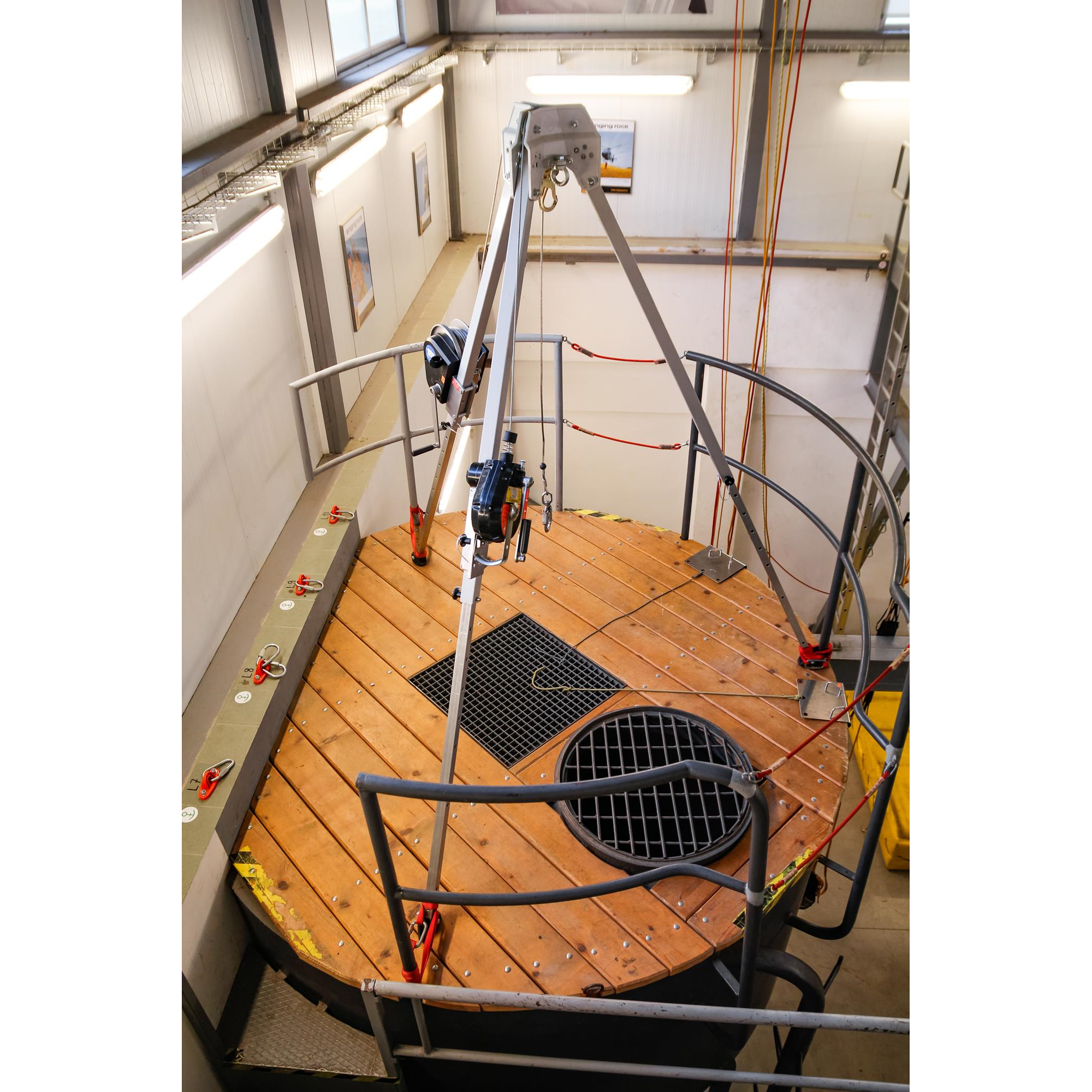

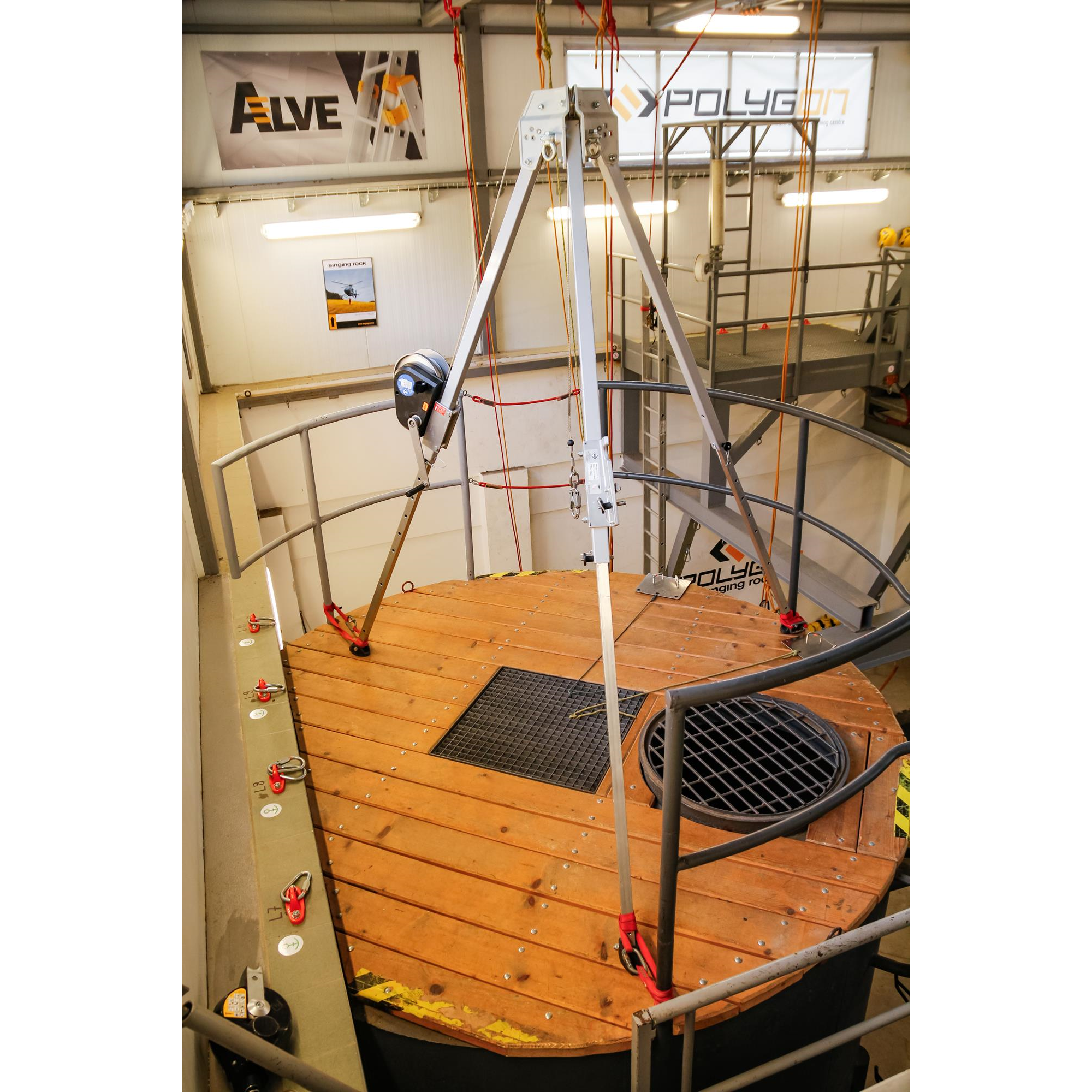

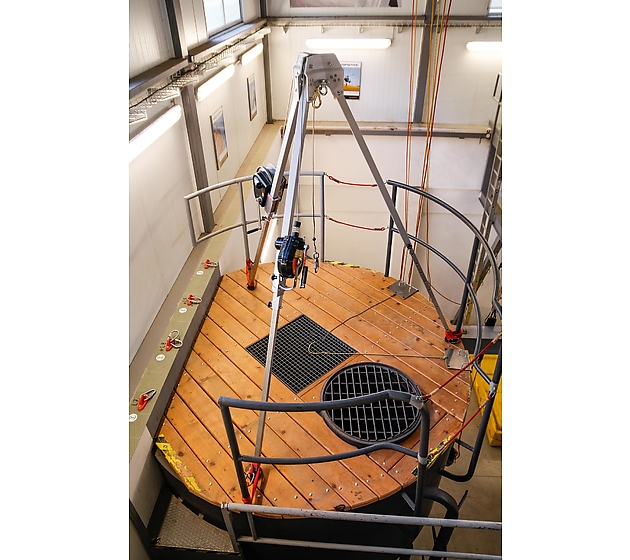

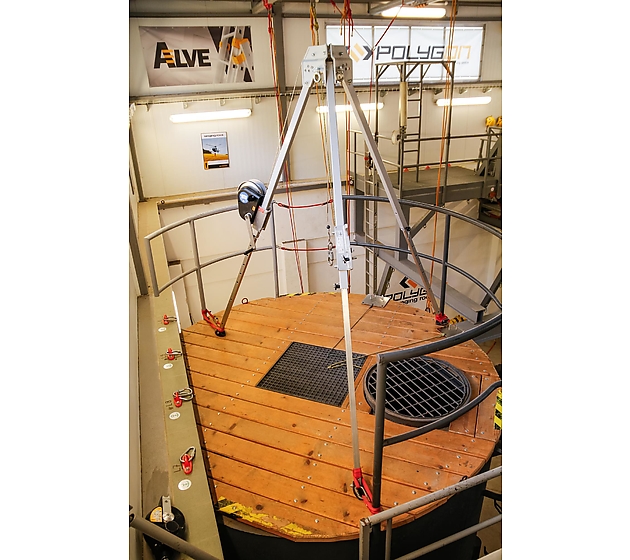

Note. Accessories depicted on the pictures 1, 2 and 3 (arrester/console) are not included.

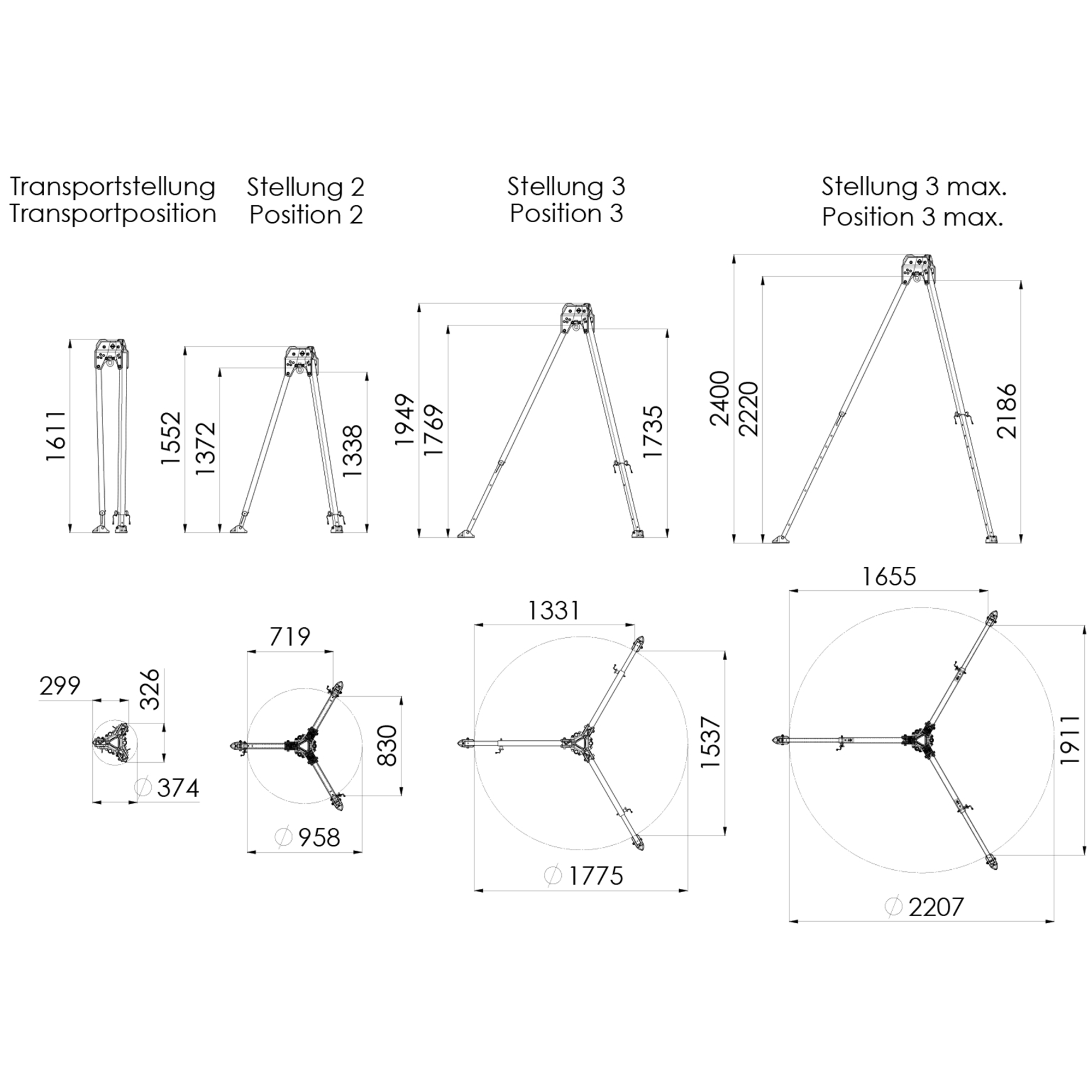

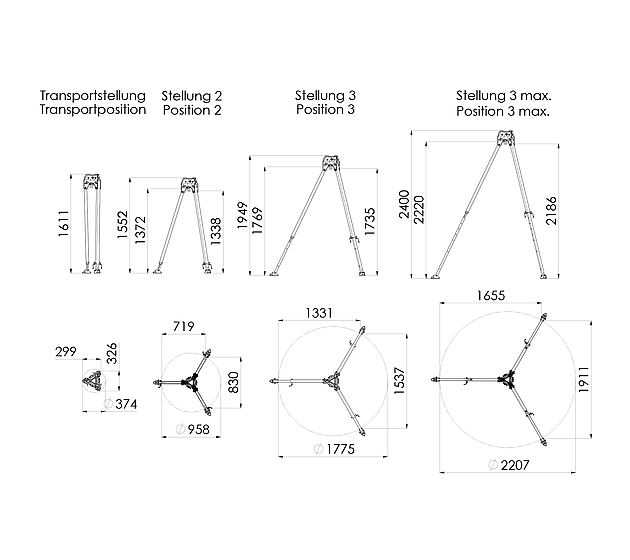

Height:
min. 1.43 m, max. 2.54 m
Diameter: min. 0.64 m, max. 2.19 m
Weight: 24 kg



Accessoires:

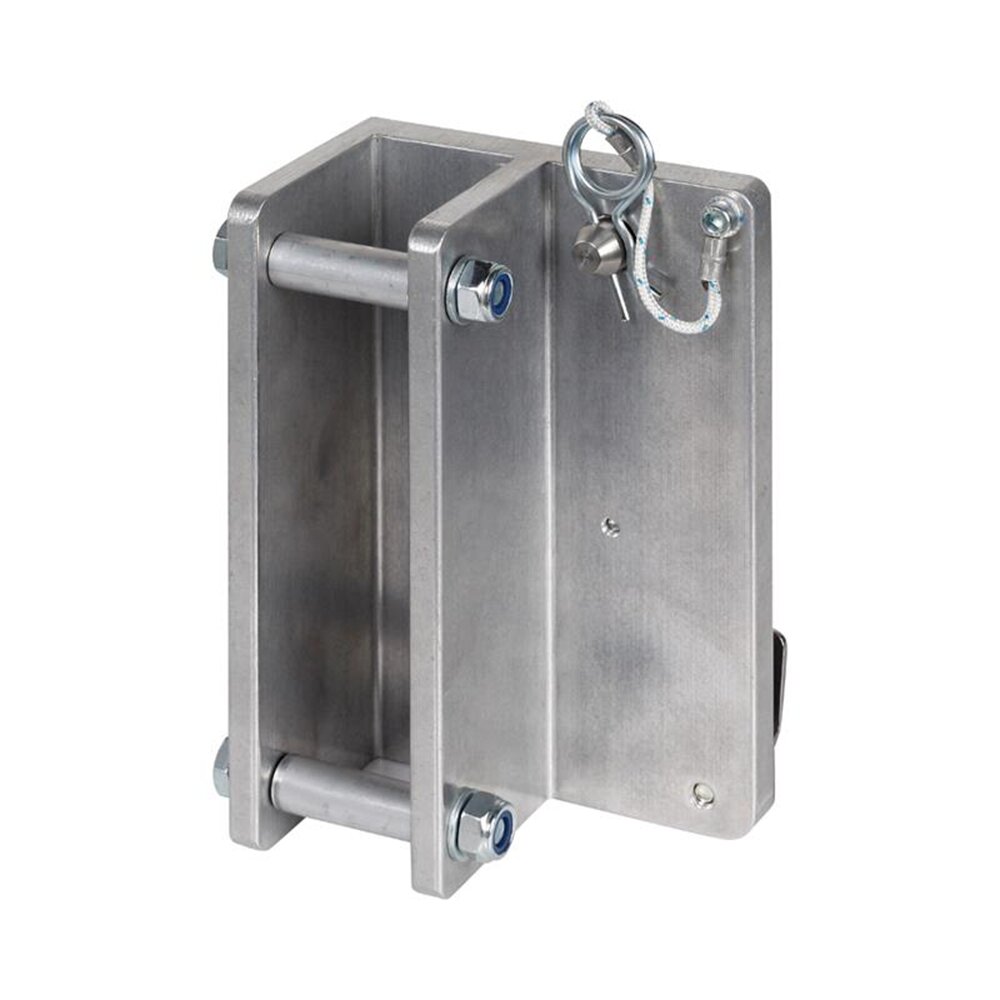

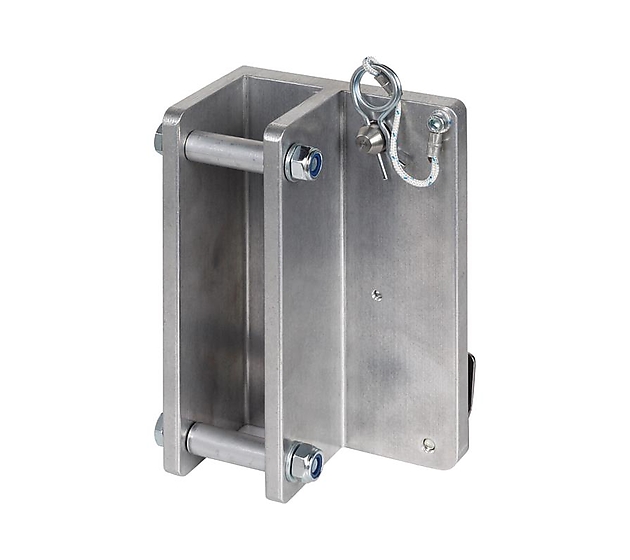

IKAR WINCH TRIPOD CONSOLE / X4004XX00
  • aluminium bracket to connect IKAR PLW winch to IKAR DB-A3 TRIPOD
  • dimensions: 200 x 130 x 82.5 mm (length x width x height)
  • weight: 2 kg

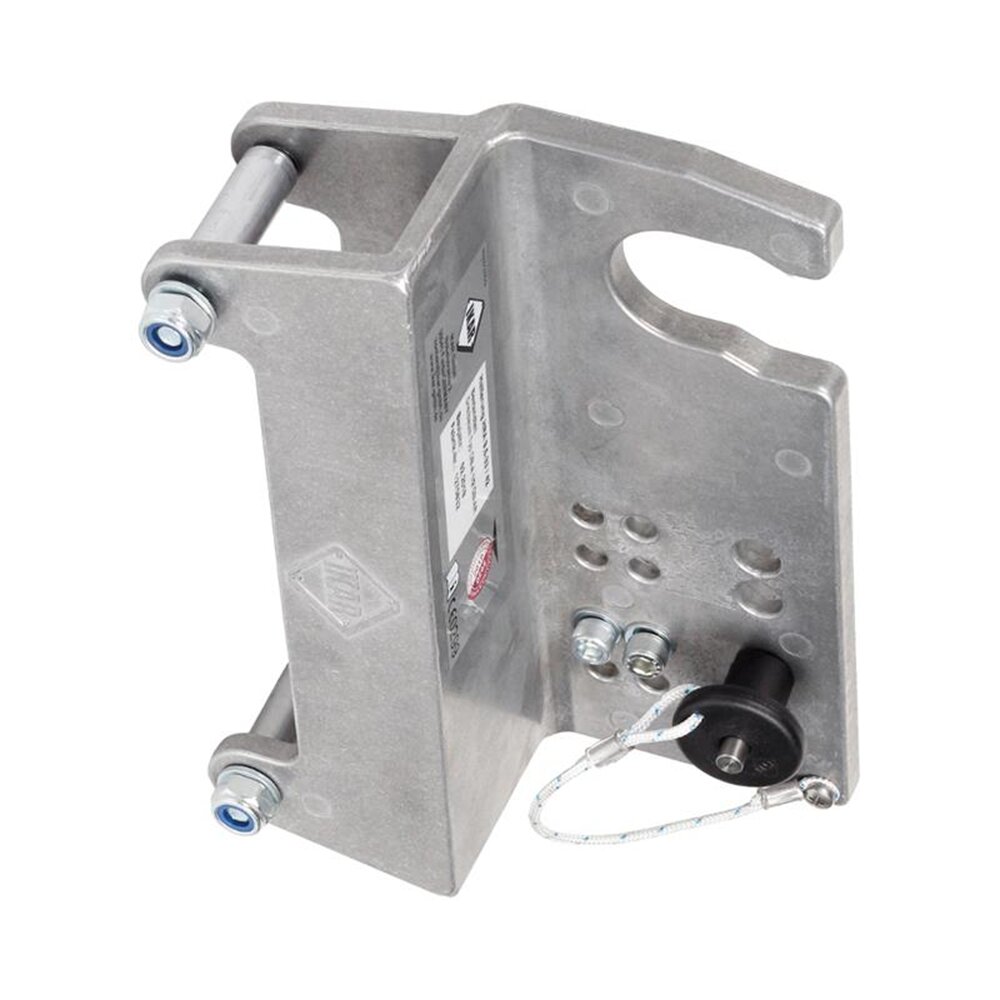

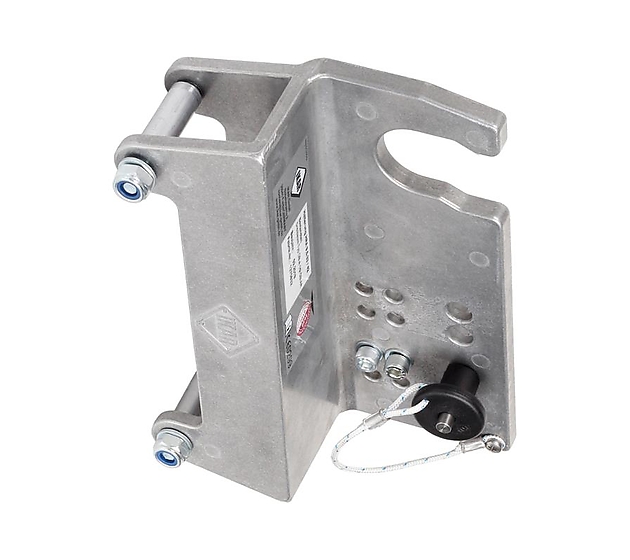

IKAR HRA TRIPOD CONSOLE / X4003XX00
  • universal aluminium bracket to connect IKAR HRA recovery devices (up to 60 m) to IKAR DB-A3 TRIPOD
  • dimensions: 255 x 165 x 78 mm (length x width x height)
  • weight: 1.8 Kg
ce 0299, EN 795 Type B, CEN/TS 16415

Download

instructions of use PDF - 4,2 MB
Activities at height such as climbing, via ferrata, caving, rappelling, ski-touring, rescue, work at height and exploration are dangerous activities, which may lead to severe injury or even death. This the following is essential before use:
careful reading and understanding of the instructions for useacquaintance with the possibilities and limitations of the productadequate apprenticeship in appropriate techniques and methods of useunderstanding and acceptance of the risk involved
In case of doubt or problem of understanding, contact SINGING ROCK.
