Davit has a modular design that allows to build a system, which would precisely fit all possible applications in every confined environment. The swivelling davit sets are free standing or attachable to walls, tanks or other entrances. A simple plug-in mechanism allows quick and purposeful installation. In order to build your davit system, order a cantilever arm, choose from a range of fixed or temporary bases and sleeves and add required consoles for IKAR HRA self-retracting lanyards or PLW winch attachment.

Designed with an integrated, easy to set fall brake system and the ability to mount mechanical devices as winches and retractable fall arresters, IKAR davits provide the customer with peace of mind for years to come.

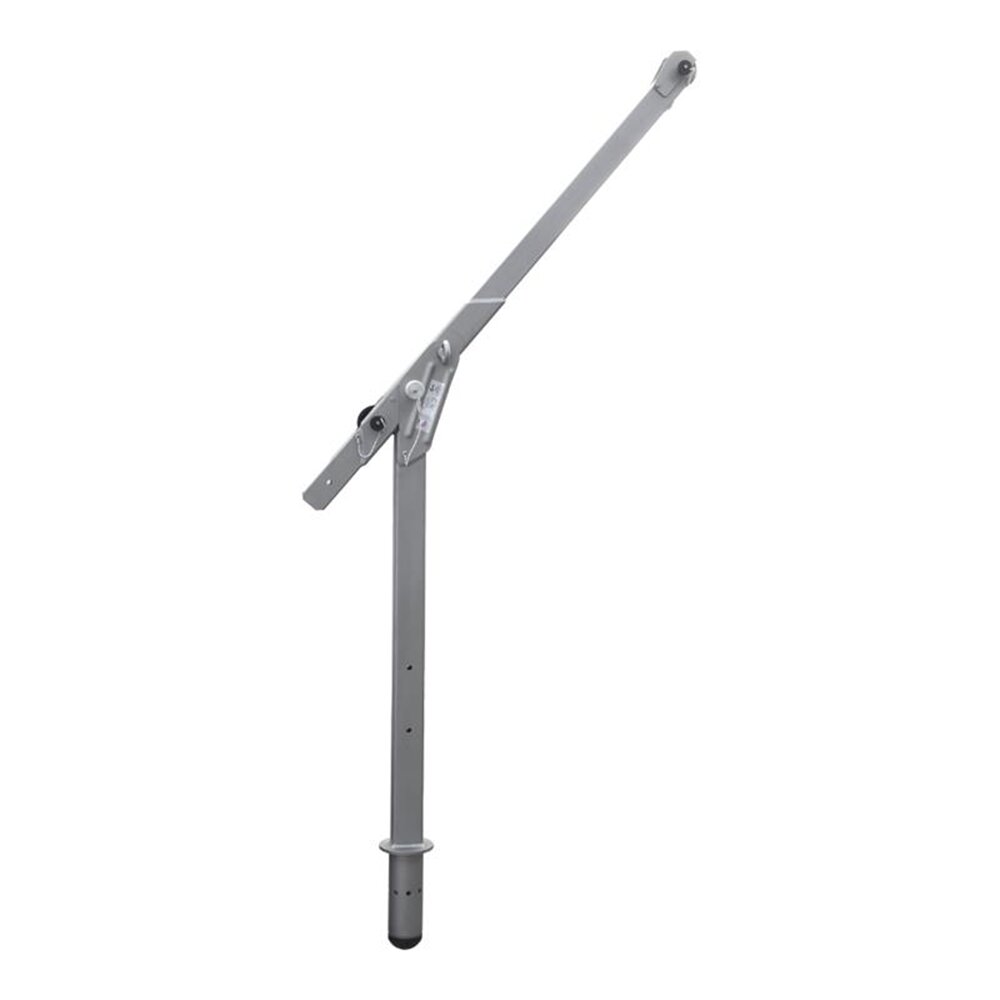

IKAR ASS-1 CANTILEVER ARM / X4005XX00
Cantilever arm with permanent angle of 49° is developed for stationary use in safety and rescue cases for two persons, as well as for lifting and lowering loads.

  • built-in 3 pulleys redirect wire ropes from the winch and SRL to a confined space entry (PLW winch and HRA arresters are sold separately)
  • cantilever arm is made of high quality V4A stainless steel
  • suitable for fast relocation from one sleeve to another thanks to foldable design of 2 detachable parts – upper davit and lower mast
  • additional attachment point provides a possibility of attaching an SRL or fall absorber with lanyard to secure a cantilever arm operator or assistant
  • suitable for two persons with load capacity of 300 kg
Material: stainless steel V4A
Height: 2.01 m
Reach: 0.74 m
Weight: 28.7 kg
CE 0299 • EN 795 Type B • CEN/TS 16415

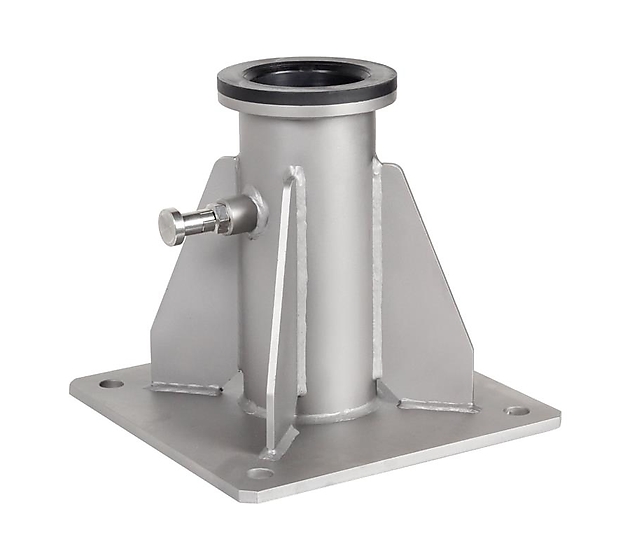

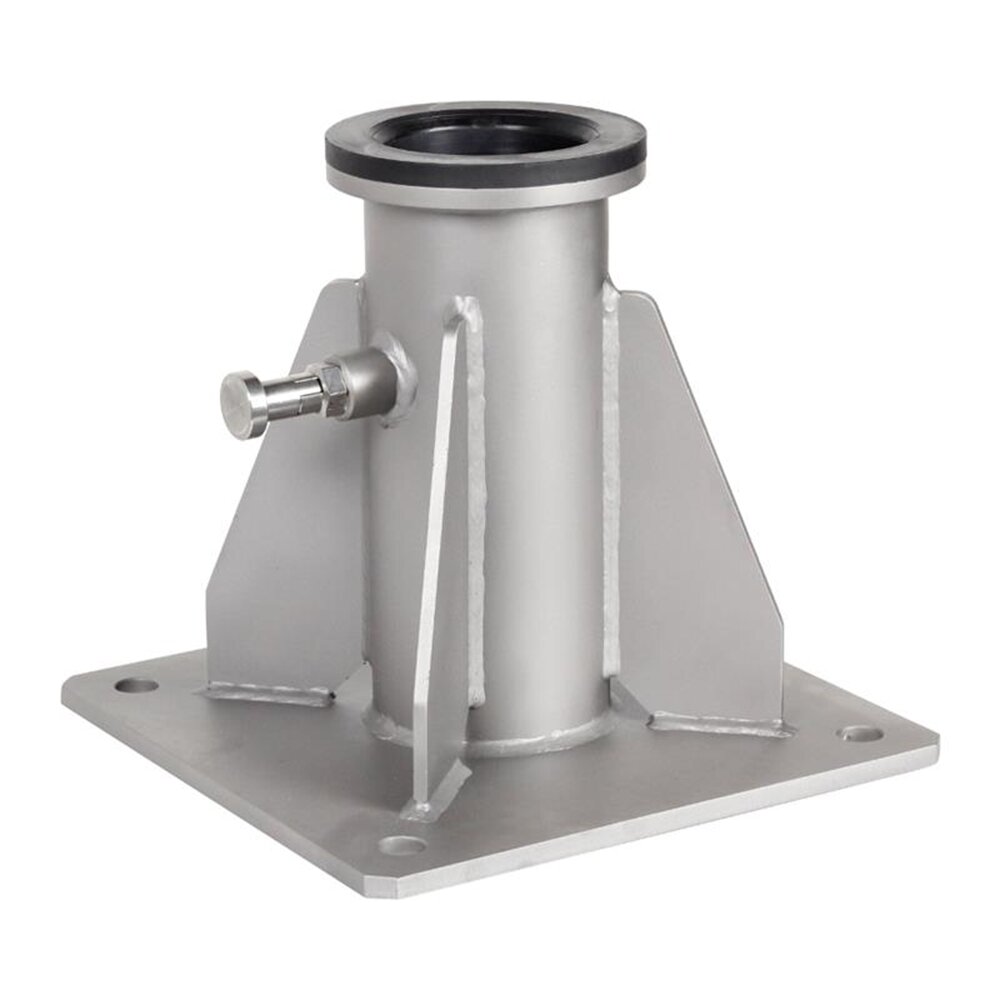

IKAR GROUND SLEEVE / X4006XX00
Sleeve with pivot bearing made of durable PA is designed to be installed onto the ground. Sleeve can be mounted on existing concrete surfaces using the recommended composite anchor system Type MKT VMZ-AA4 145 M16-30/200 or steel constructions with screw connections M16 grade 8.8.
Material: stainless steel 1.4571 (V4A), PA
Dimensions: 300 x 240 x 280 mm (length x width x height)
Weight: 13.5 kg
EN 795 Type A •  CEN/TS 16415

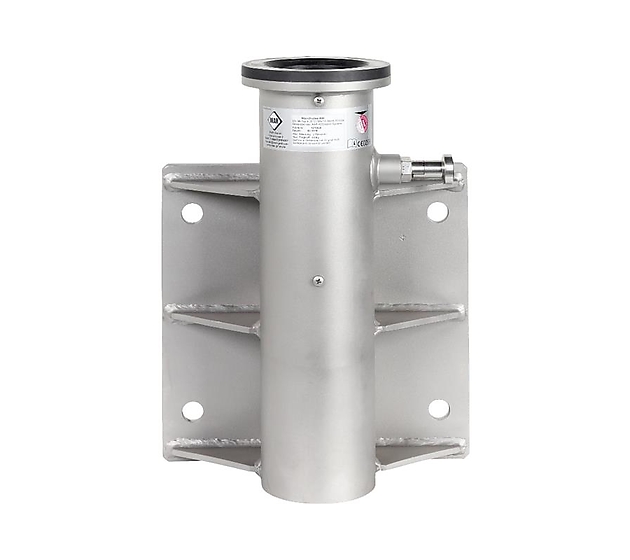

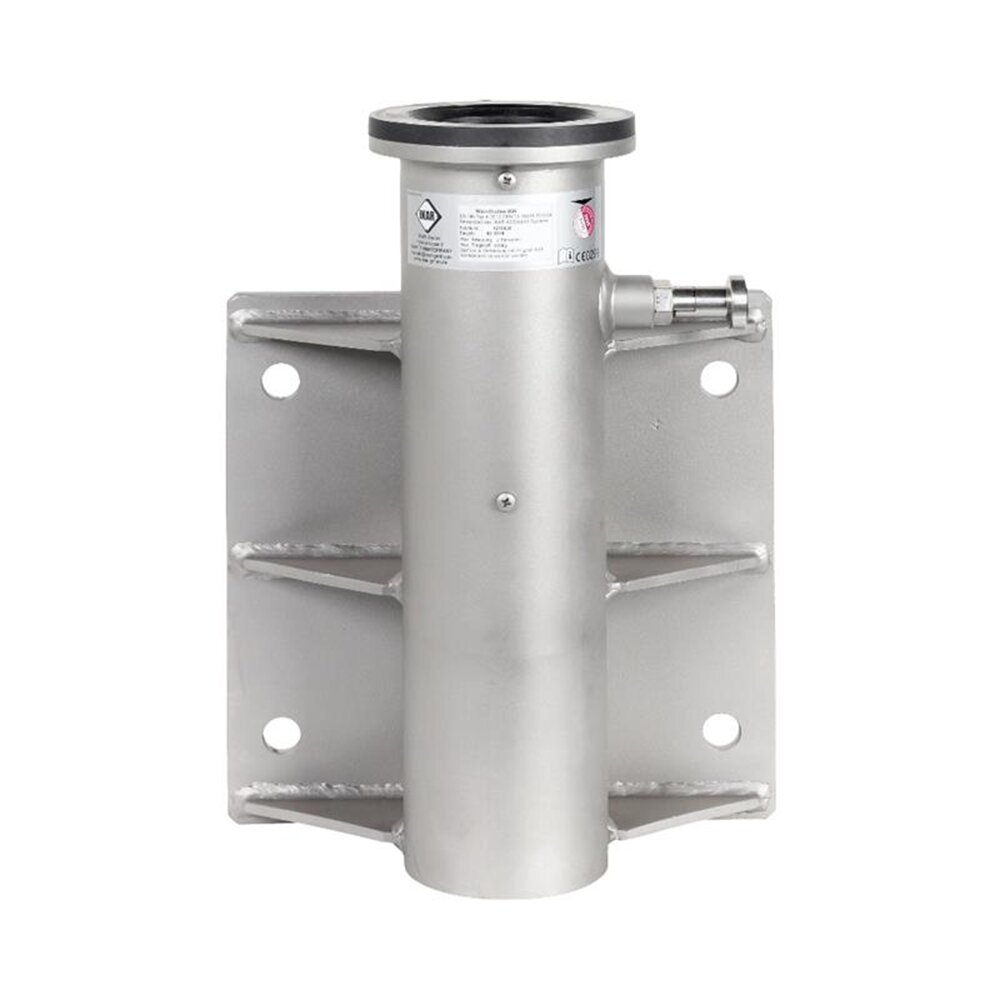

IKAR WALL SLEEVE / X4007XX00
Sleeve with pivot bearing made of durable PA is designed to be installed onto the wall. Sleeve can be mounted on existing concrete surfaces using the recommended composite anchor system Type MKT VMZ-AA4 145 M16-30/200 or steel constructions with screw connections M 16 grade 8.8.
Material: stainless steel 1.4571 (V4A), PA
Dimensions: 290 x 300 x 410 mm (length x width x height)
Weight: 14.9 kg
EN 795:2012 Type A • CEN/TS 16415:2013

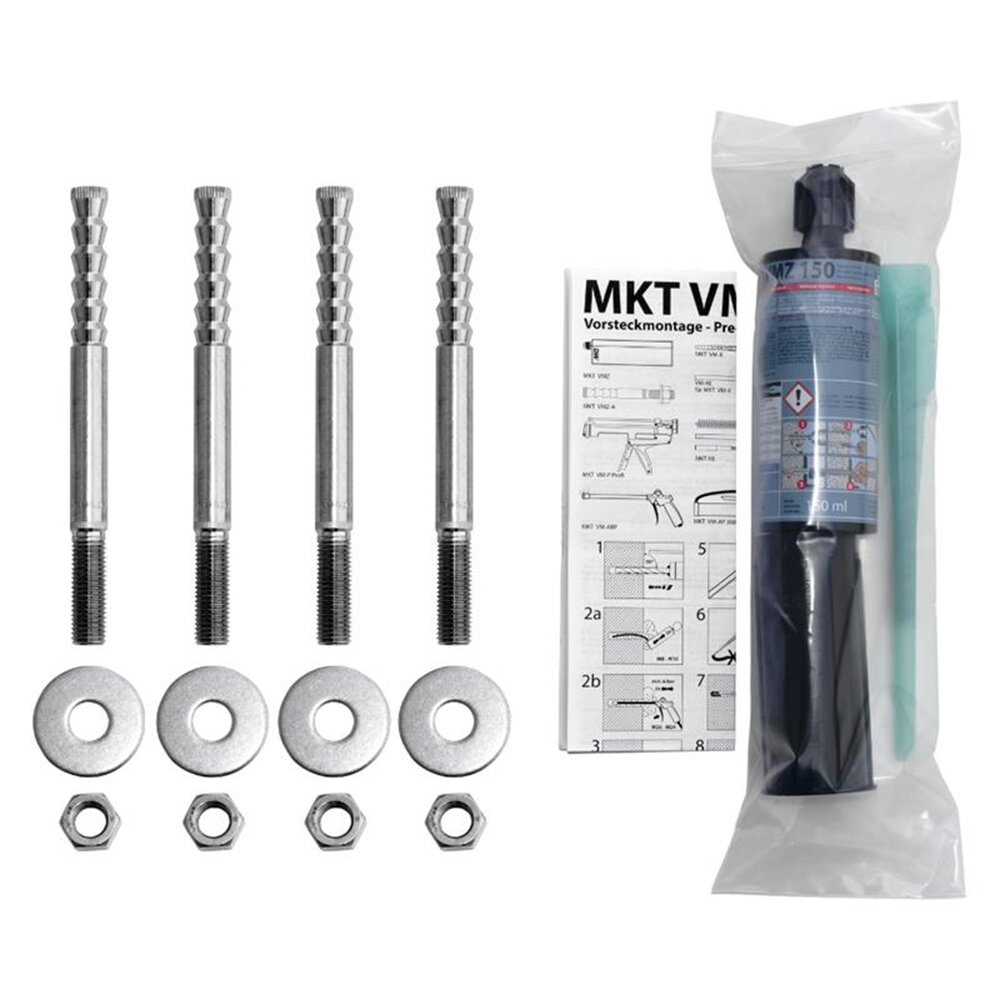

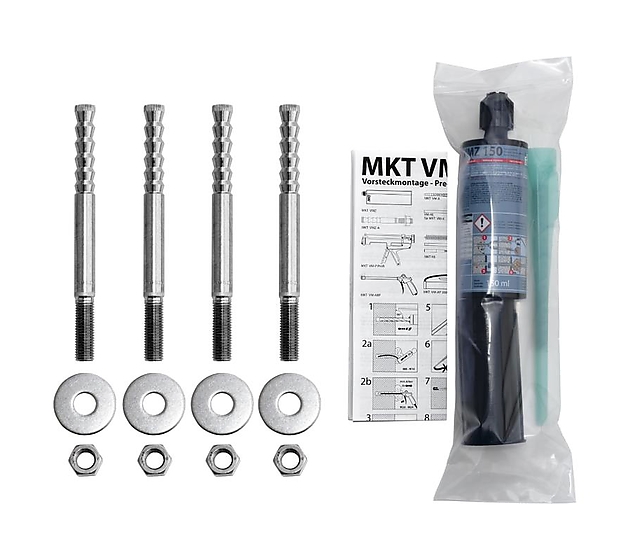

FIXING MATERIAL FOR GROUND AND WALL SLEEVE / X4008XX00
Composite anchor system Type MKT VMZ-AA4 145 M16-30/200 for IKAR ground and wall sleeve.

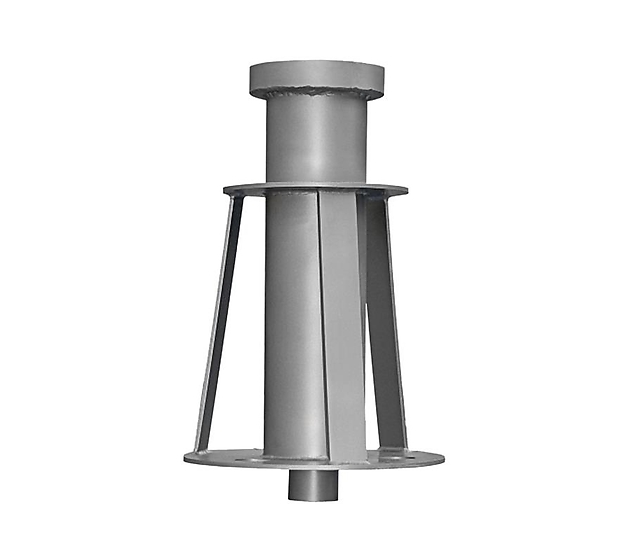

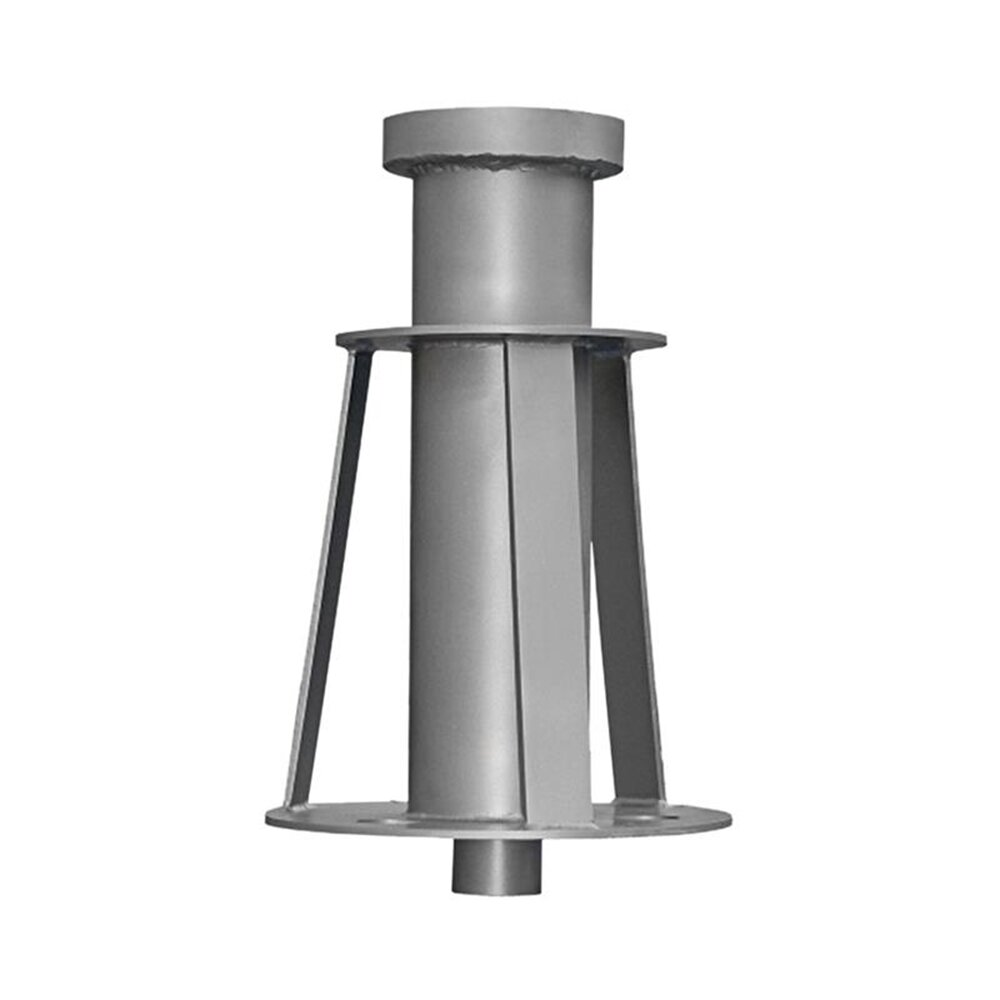

IKAR LOWER GROUND SLEEVE  / X4009XX00
Flush floor sleeve with pivot bearing made of durable PA and drainage pipe connection can be mounted to rebar before pouring concrete. A concrete quality of at least B25 concrete must be ensured.
Material: stainless steel 1.4571 (V4A), PA
Dimensions: 280 x 420 mm (width x height)
Weight: 12 kg
EN 795 Type A • CEN/TS 16415

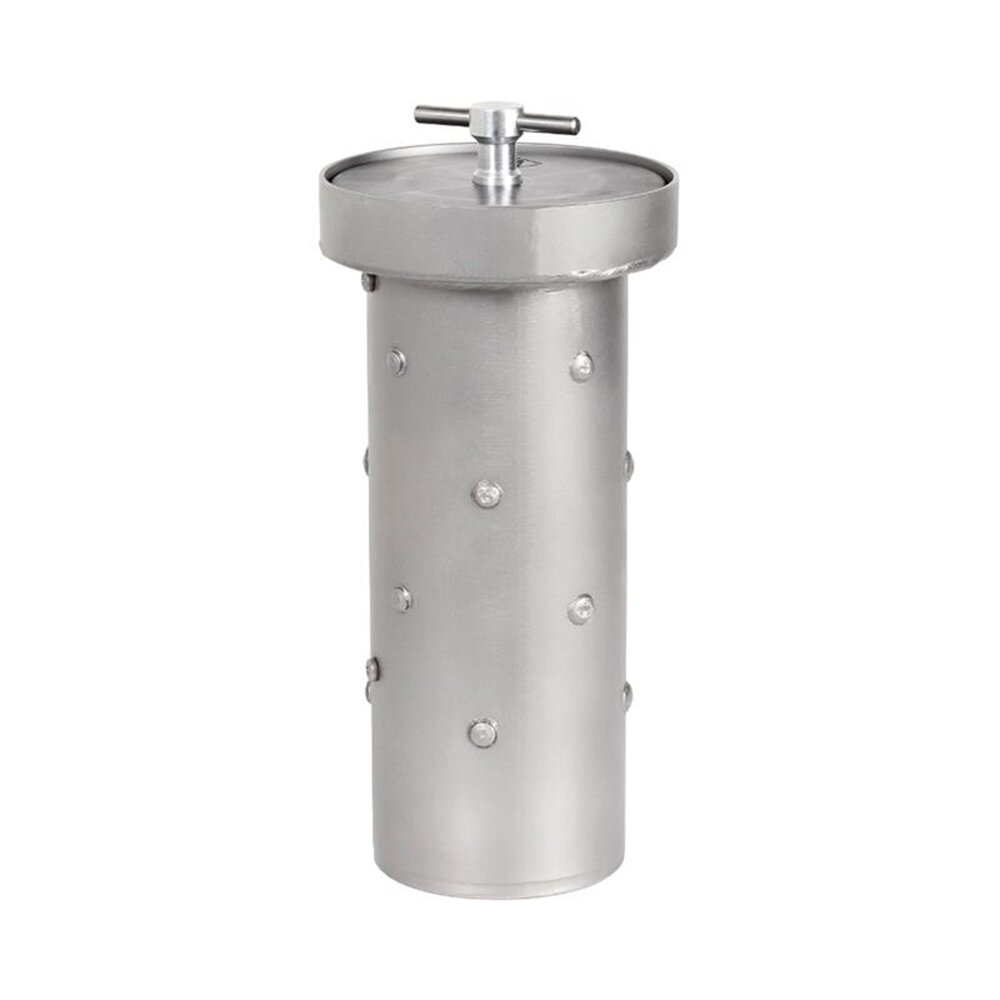

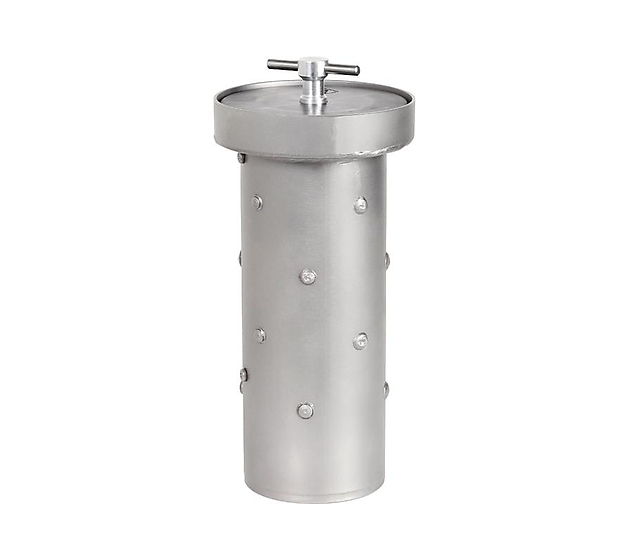

IKAR LOWER GROUND SLEEVE CORE HOLE / X4010XX00
Flush floor sleeve with pivot bearing made of durable PA and drainage pipe connection to be installed to existing concrete by core-drilling and resin mortar fix. A suitable shrink-free grout is PCI swelling mortar with the designation „Grout 100“.
Material: stainless steel 1.4571 (V4A), PA
Dimensions: 160 x 335 mm (width x height)
Weight: 4.6 kg
EN 795 Type A • CEN/TS 16415

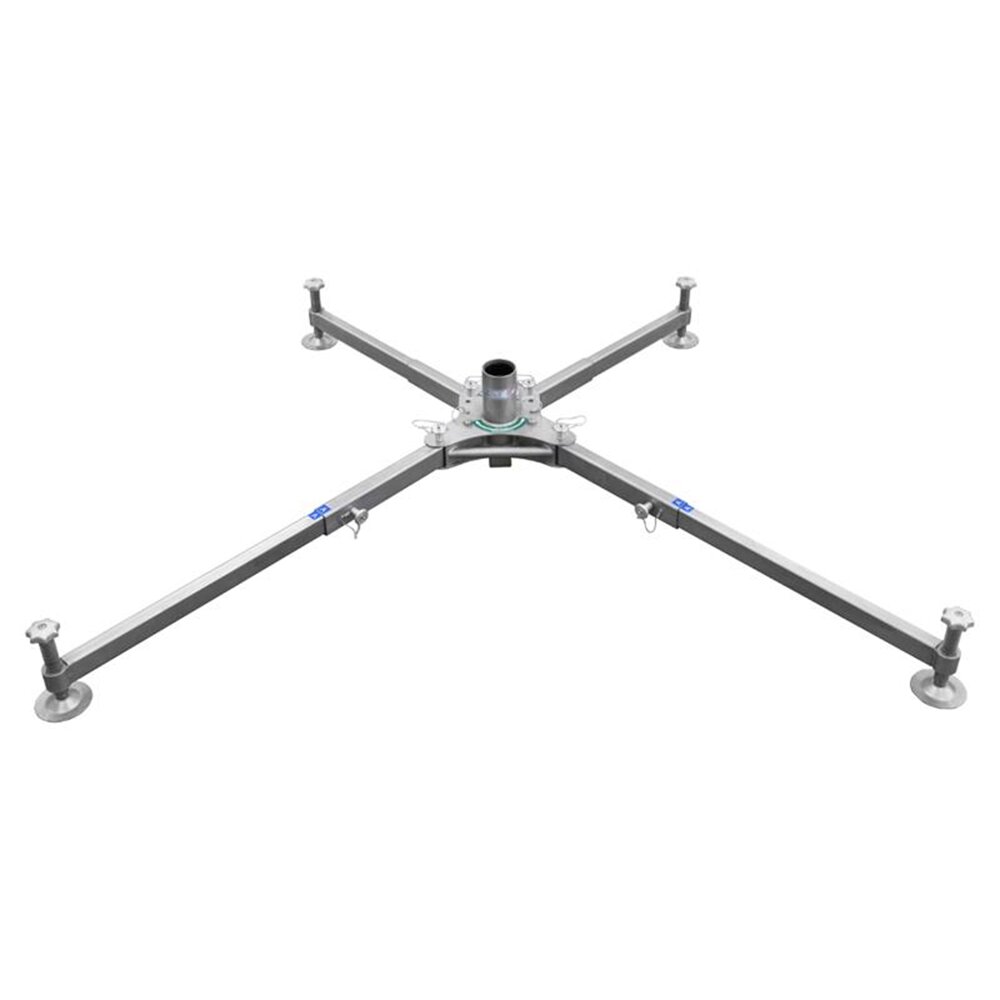

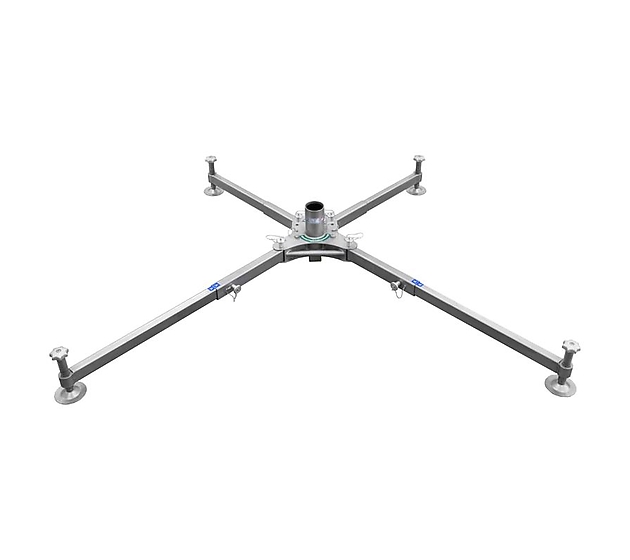

IKAR MOBILE GROUND BASE / X4011XX00
Free standing base with pivot bearing made of durable PA featuring quick and easy assembling on site. The base consists of a central socket and height adjustable pairs of front and back legs secured with ball-lock pins. Cantilever arm rotates 360°.
Material: stainless steel 1.4571 (V4A), PA
Dimensions: 1763 x 2228 x 450 mm (length x width x height)
Weight: 23.4 kg for central socket, front leg 8.1 kg each, back leg 9.2 kg each
CE 0299 • EN 795 Type B • CEN/TS 16415

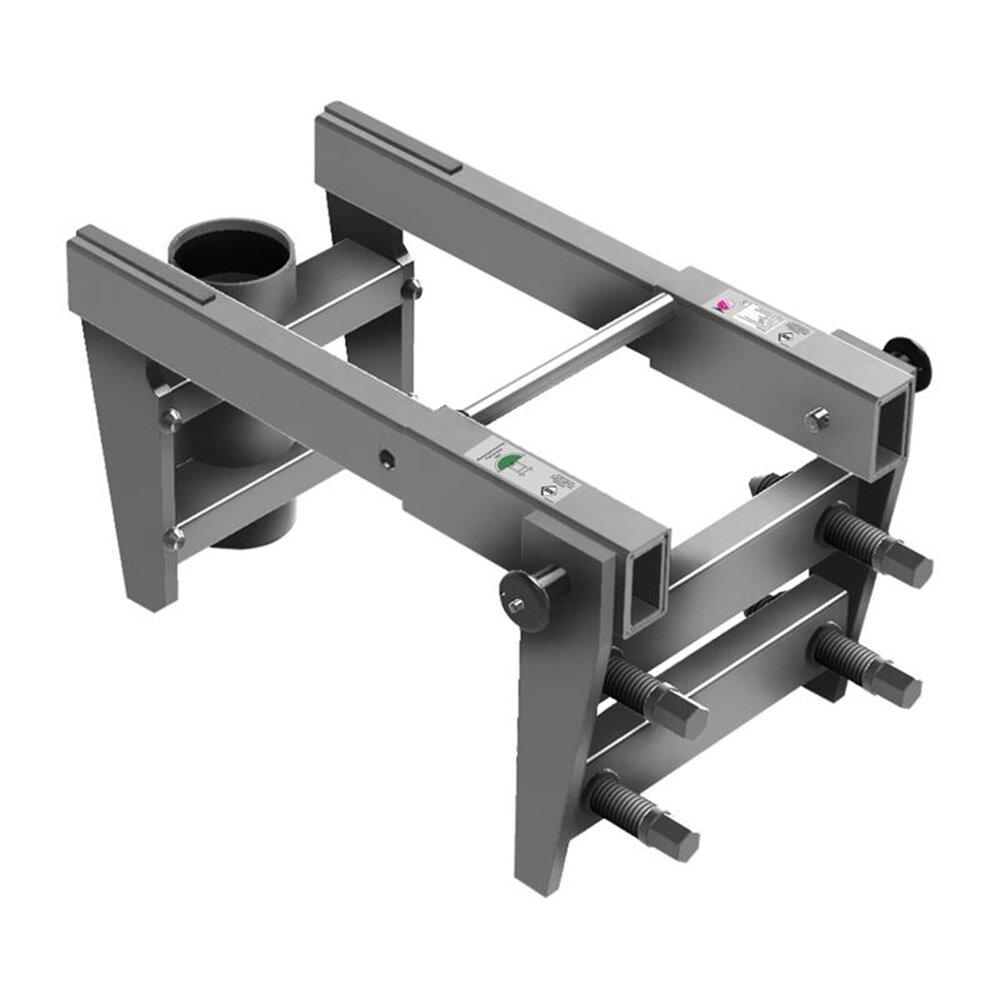

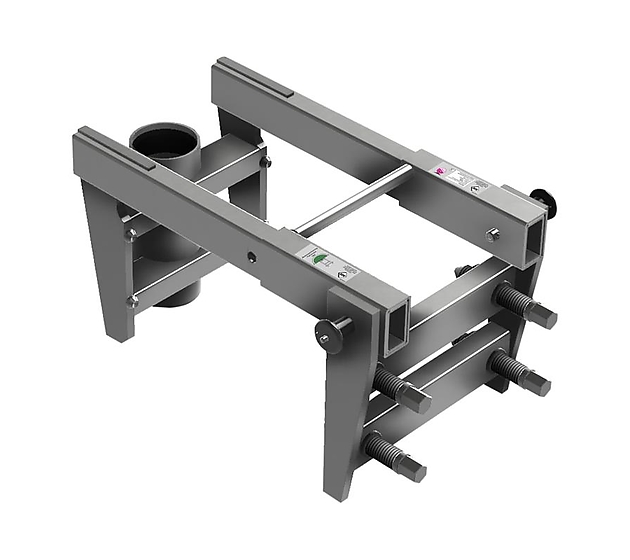

IKAR MOBILE ATTICS SLEEVE / X4012XX00
Sleeve with pivot bearing made of durable PA is designed to sit on the top of a concrete bund wall 200 mm - 400 mm or container edges. It is ideal for work areas where frequent assembly and disassembly is required.
Material: stainless steel 1.4571 (V4A), PA
Dimensions: 350 x 729 x 335 mm (length x width x height)
Weight: 35 kg
CE 0299 • EN 795 Type B • CEN/TS 16415

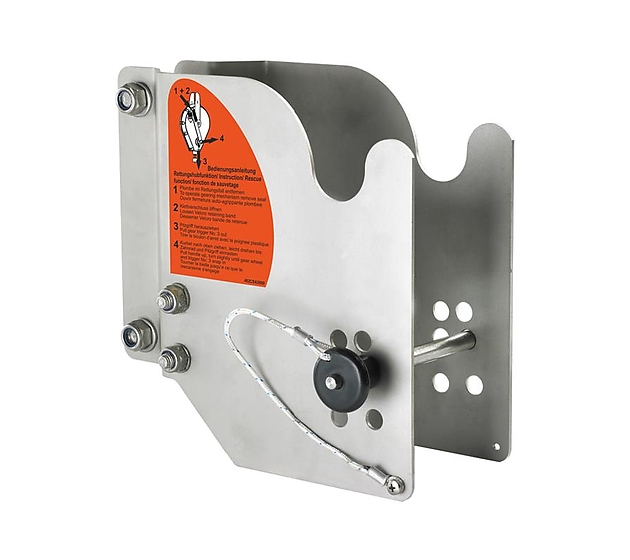

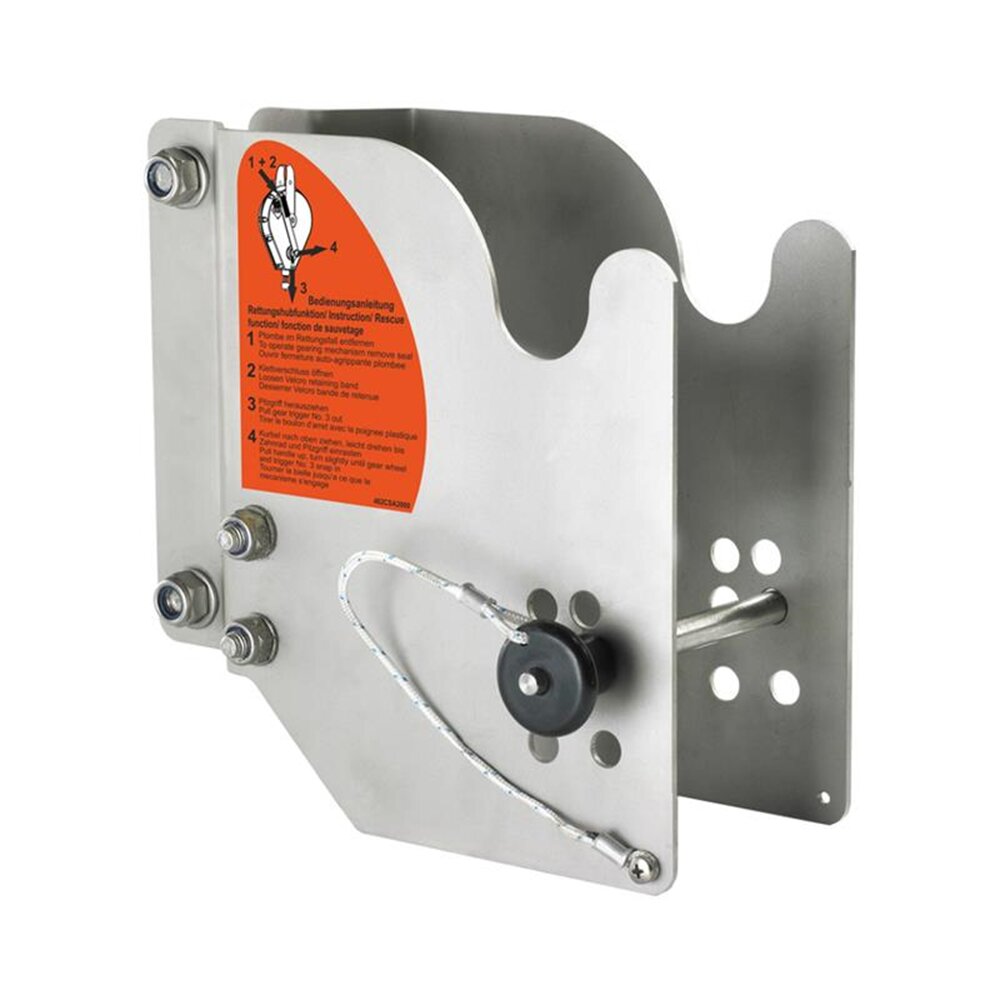

IKAR HRA 12-24 CANTILEVER ARM CONSOLE / X4013XX00
IKAR HRA 33 CANTILEVER ARM CONSOLE / X4014XX00

Stainless steel bracket designed to fit IKAR HRA recovery devices to IKAR Davit’s mast. Bolts directly onto the davit’ mast and comes complete with fixings and a stainless-steel fixing pin for the device.
Material: stainless steel 1.4571 (V4A)
Dimensions: 264 x 162 x 250 mm (length x width x height)
Weight: 3.5 kg (5 kg for HRA 33 version)

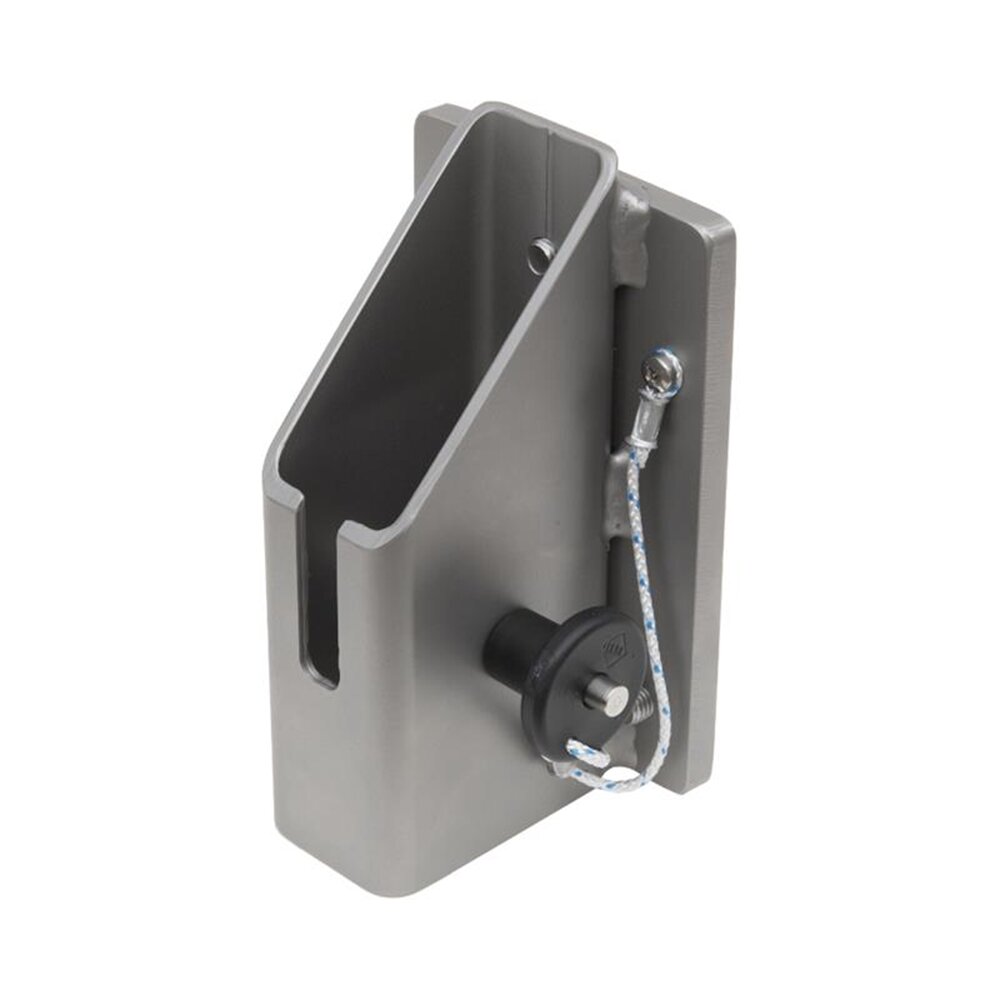

IKAR WINCH CANTILEVER ARM CONSOLE / X4015XX00
Aluminium bracket designed to fit the IKAR PLW winch to the cantilever arm. Bolts directly onto the davit’s arm and comes complete with fixings and a stainless-steel fixing pin for the PLW winch.
Material: aluminium
Dimensions: 200 x 130 x 82,5 mm (length x width x height)
Weight: 2.4 kg

Download

instructions of use PDF - 19,9 MB
