IKAR PLW
IKAR PLW / A4064XX30

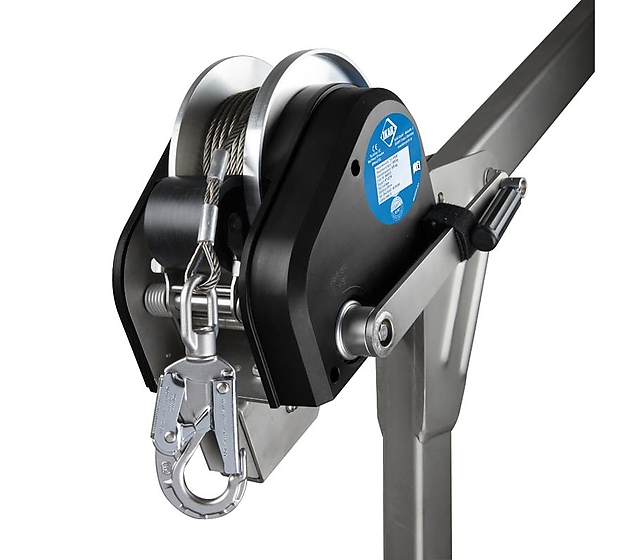

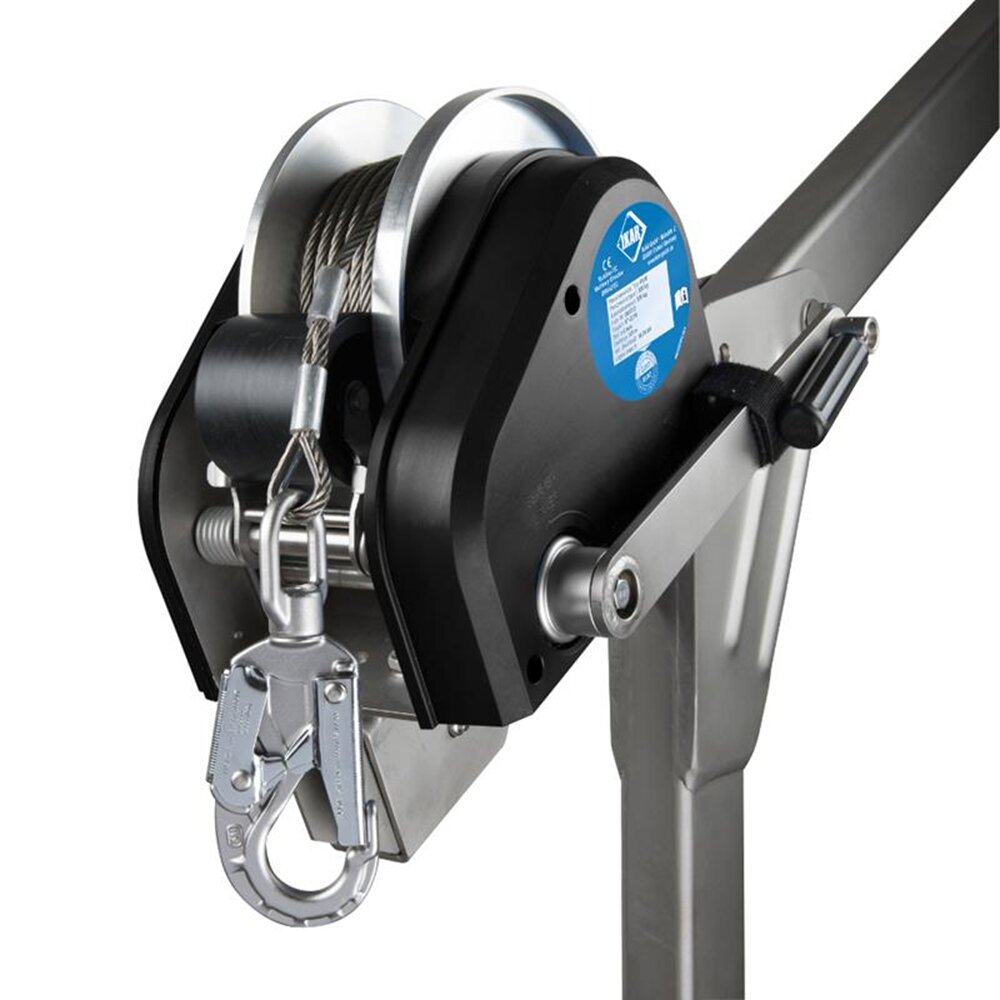

Hand crank winch for easy and jerk-free lifting and lowering of persons and loads according to Directive 2006/42/EG with 30 m stainless steel rope of Ø 6mm (min. breaking load 18.76 kN). SWL is 300 kg.
Hand crank winch for easy and jerk-free lifting and lowering of persons and loads according to Directive 2006/42/EG with 30 m stainless steel rope of Ø 6mm (min. breaking load 18.76 kN). SWL is 300 kg.
- winch can be mounted using certified consoles to IKAR DB-A3 Tripod and IKAR AASS-1 Cantilever Arm
| Weight | 18.5 kg |
|---|---|
| Size | 230 x 336 x 200 mm (length x width x height) |
| Material | stainless steel 1.4571 (V4A), PA |
| Working load | max. 300 kg |
| Length | 30 m |
EN 1808
Download
instructions of use
PDF - 4,9 MB
Related goods
Activities at height such as climbing, via ferrata, caving, rappelling, ski-touring, rescue, work at height and exploration are dangerous activities, which may lead to severe injury or even death. This the following is essential before use:
careful reading and understanding of the instructions for useacquaintance with the possibilities and limitations of the productadequate apprenticeship in appropriate techniques and methods of useunderstanding and acceptance of the risk involved
In case of doubt or problem of understanding, contact SINGING ROCK.
careful reading and understanding of the instructions for useacquaintance with the possibilities and limitations of the productadequate apprenticeship in appropriate techniques and methods of useunderstanding and acceptance of the risk involved
In case of doubt or problem of understanding, contact SINGING ROCK.
