IKAR HRA

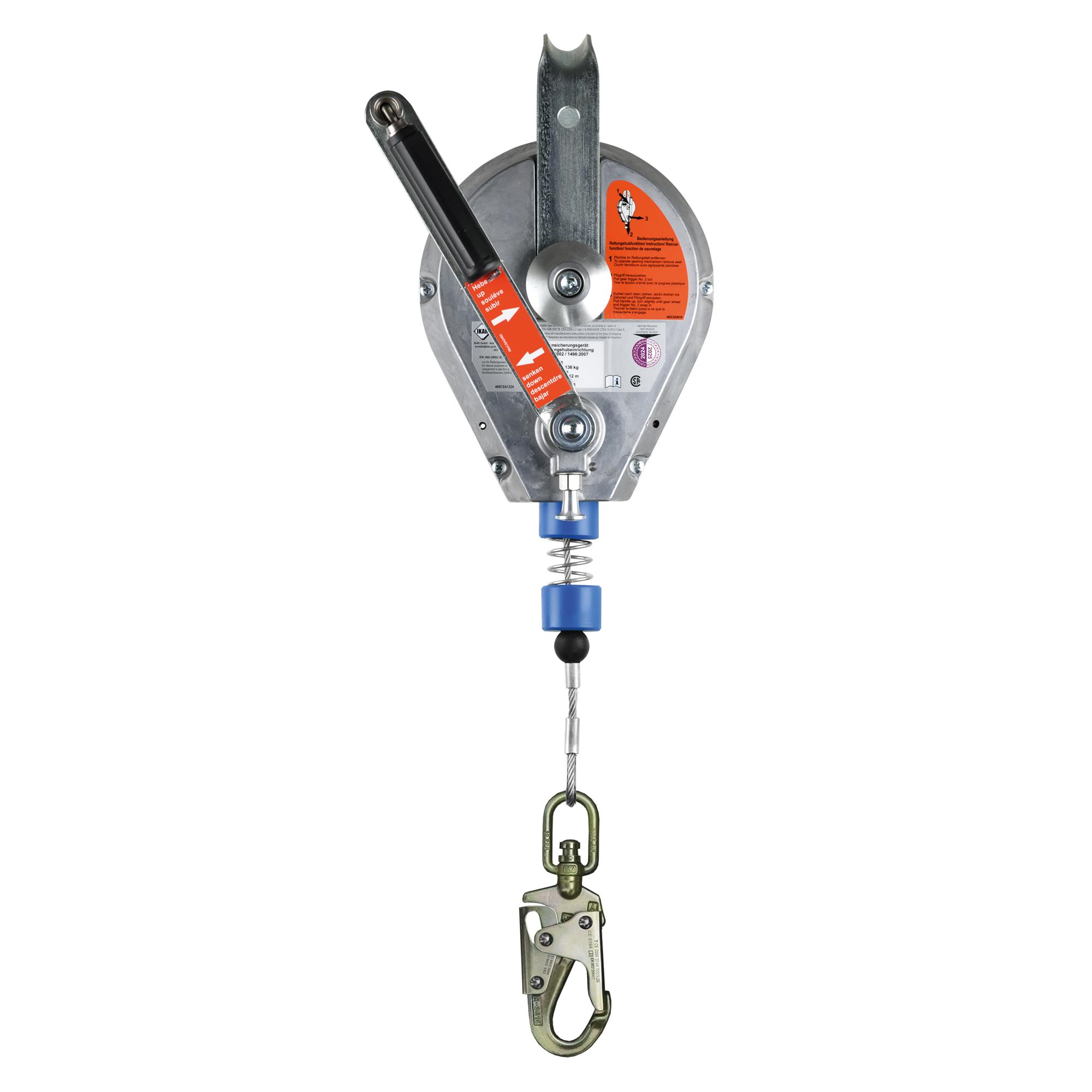

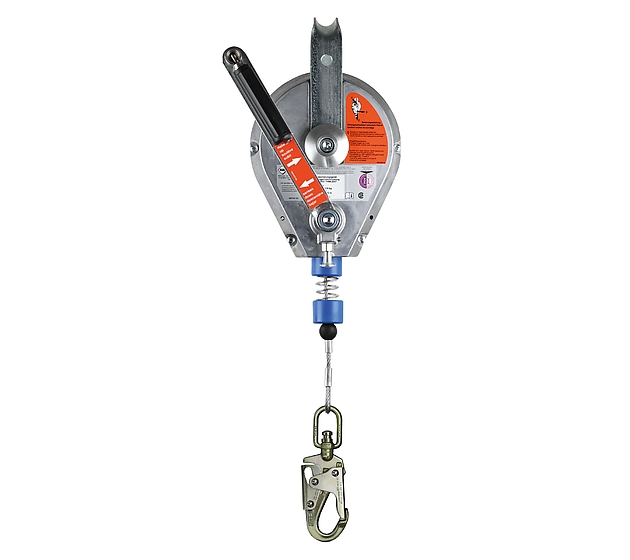

IKAR HRA 12 / A4004BS12 - length 12 m

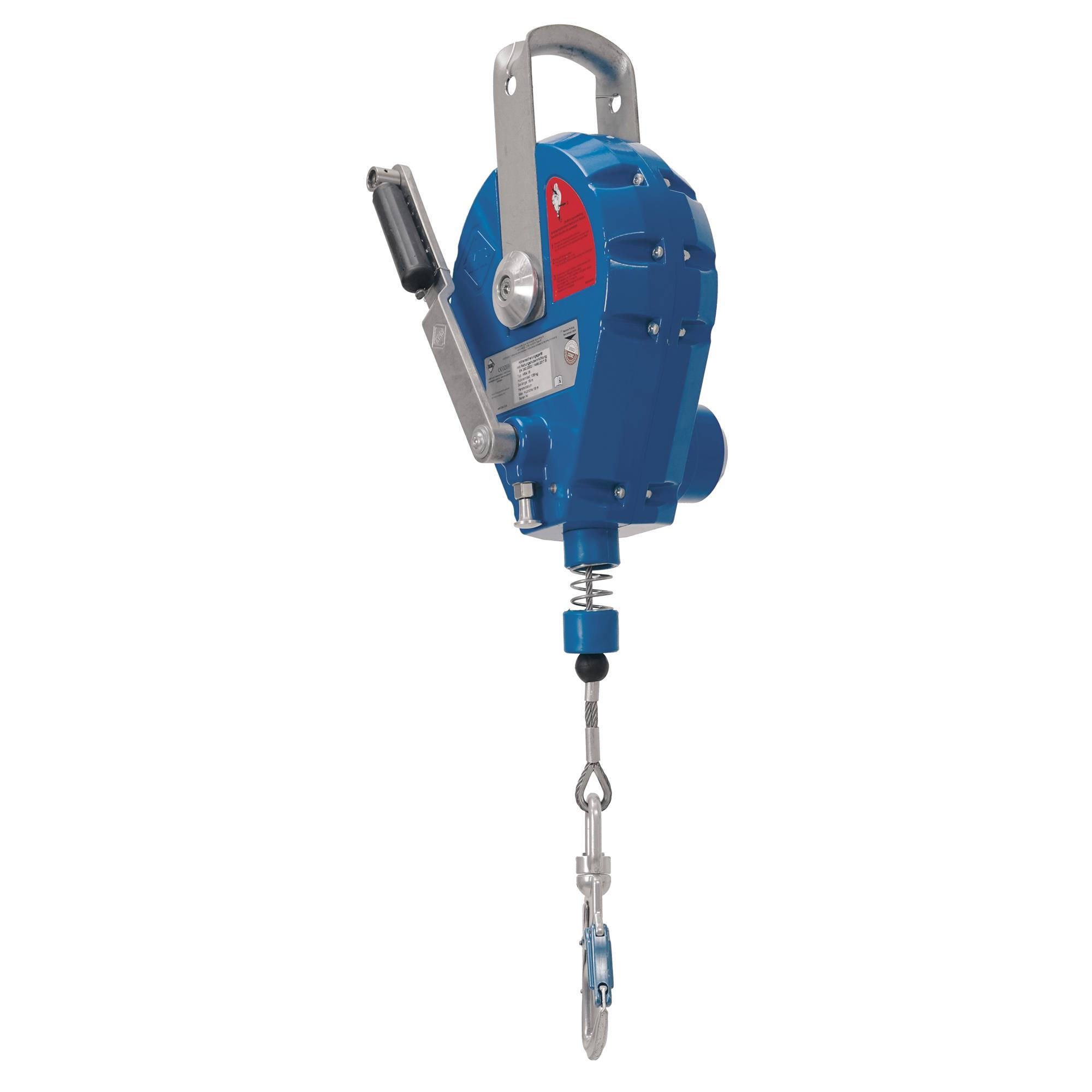

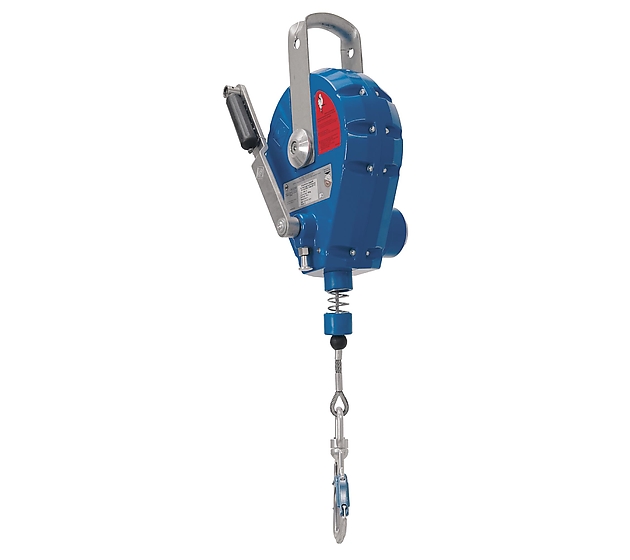

IKAR HRA 18 / A4004BS18
- length 18 m

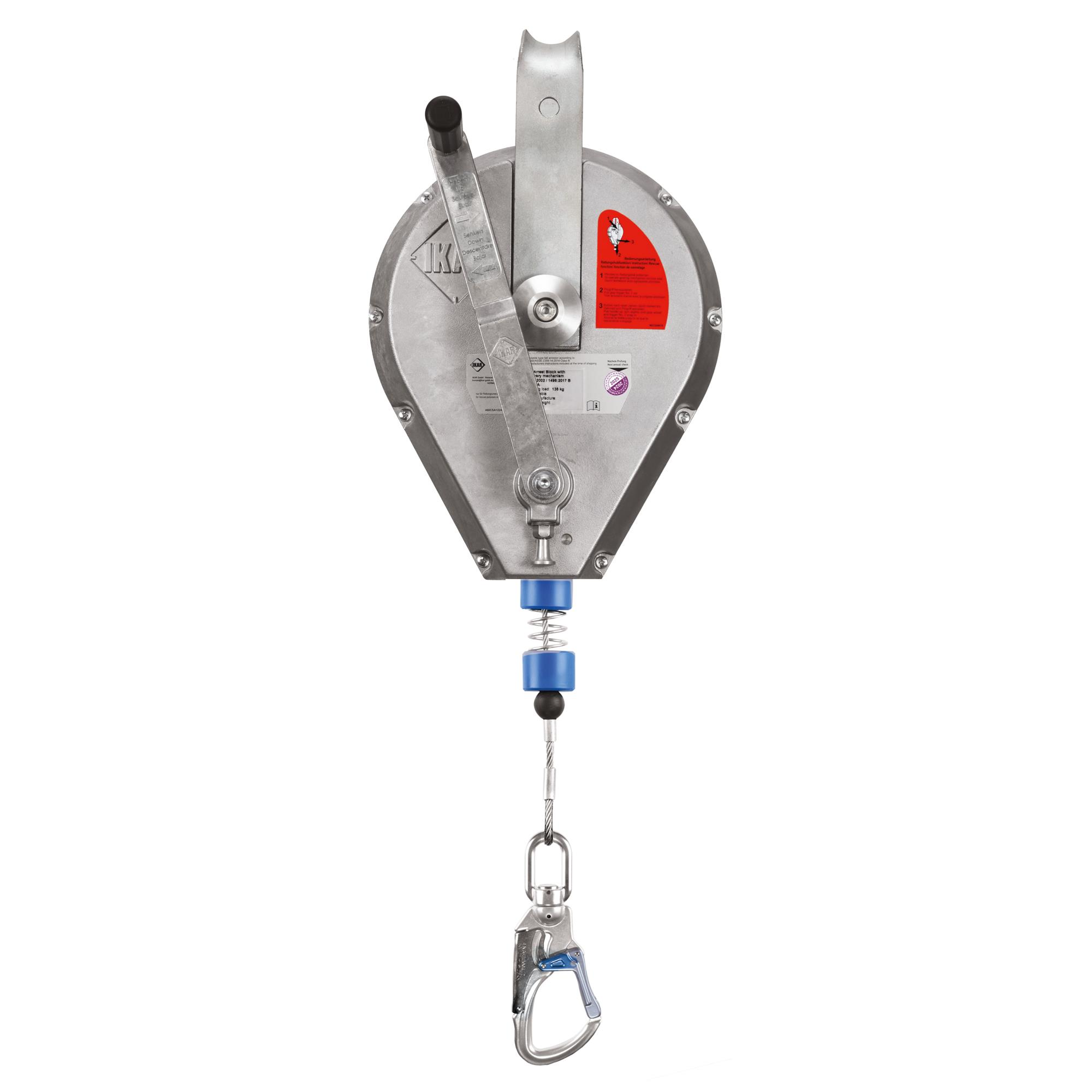

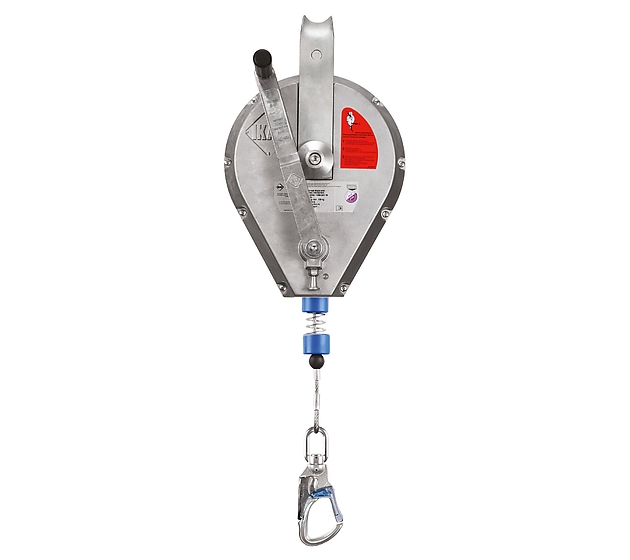

IKAR HRA 33 / A4004BS33 - length 33 m

Retractable fall arrester with a galvanised steel cable lifeline and built-in shock absorber, equipped with a two-way rescue/recovery mechanism and double action swivel connector.

After an arrested fall, or if the user becomes incapacitated at the bottom of a shaft, the recovery mechanism can easily be engaged by a second person to raise or lower the person to a place of safety.

  • fall arrest device with rescue lifting and lowering facility
  • equipped with a release pin and a recovery mechanism operated by a device mounted handle
  • lightweight aluminium housing with a galvanised steel cable lifeline
  • fixed handle anchor attachment point
  • steel double action swivel hook with a fall indicator on the end of the lifeline


HRA is not suitable for use over a leading edge and has not been edge tested.


Weight: 7 / 11.5 / 21 kg
Length: 12 / 18 / 33 m
Gate opening (d): 22 mm
Working load: 136 kg

Download

high resolution picture instructions of use

0229, EN 360, EN 1496, ANSI/ASSE Z359.1-2007, ANSI/ASSE Z359.14-2014, CSA Z259.2.2
