IKAR HWB

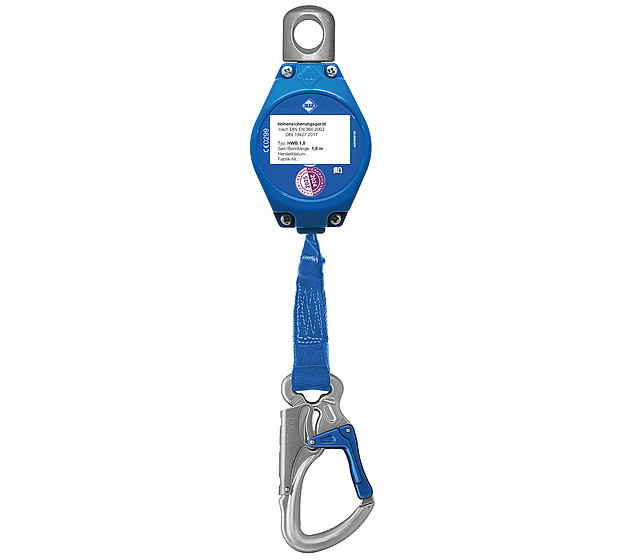

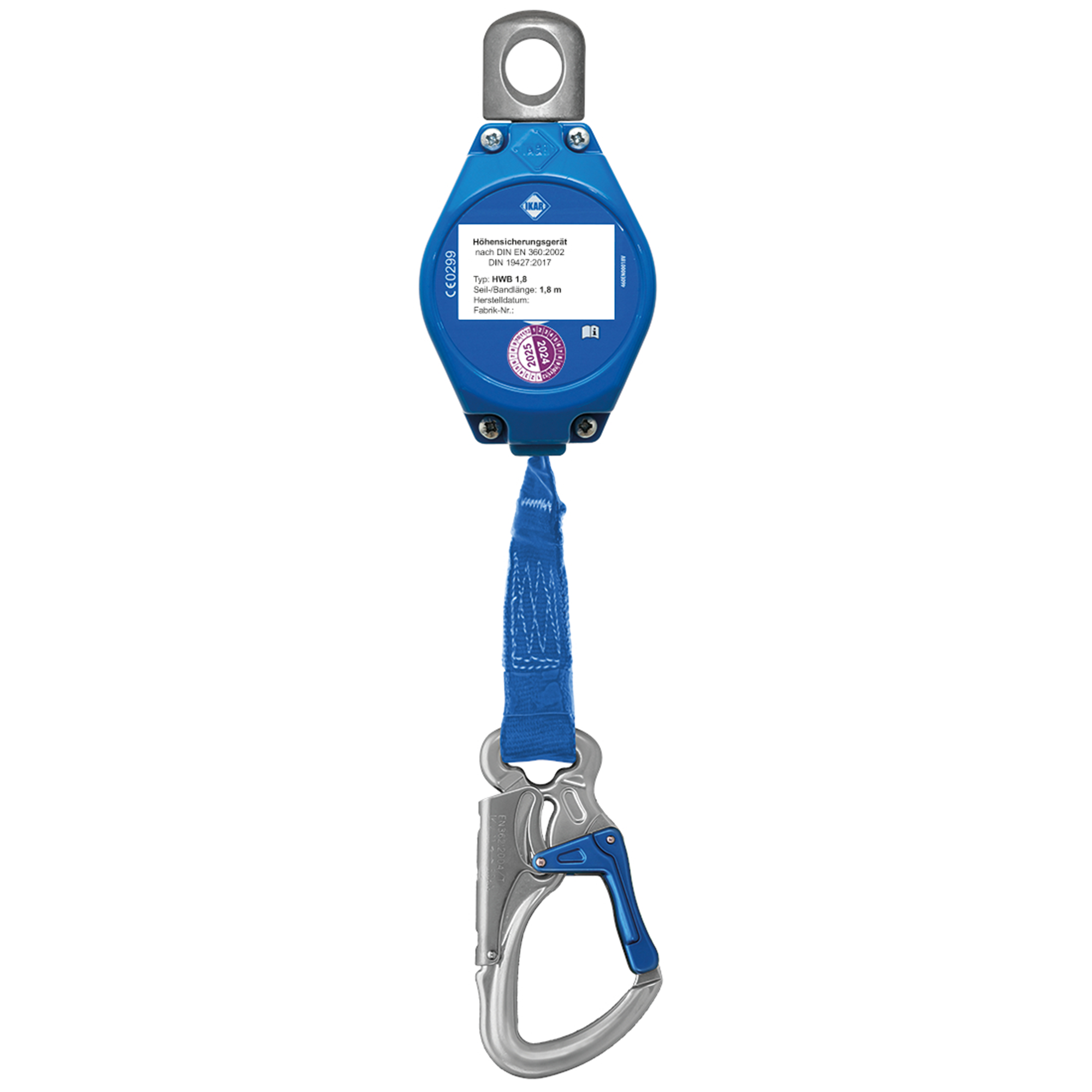

IKAR HWB 1.8 / A4000W018 - length 1.8 m

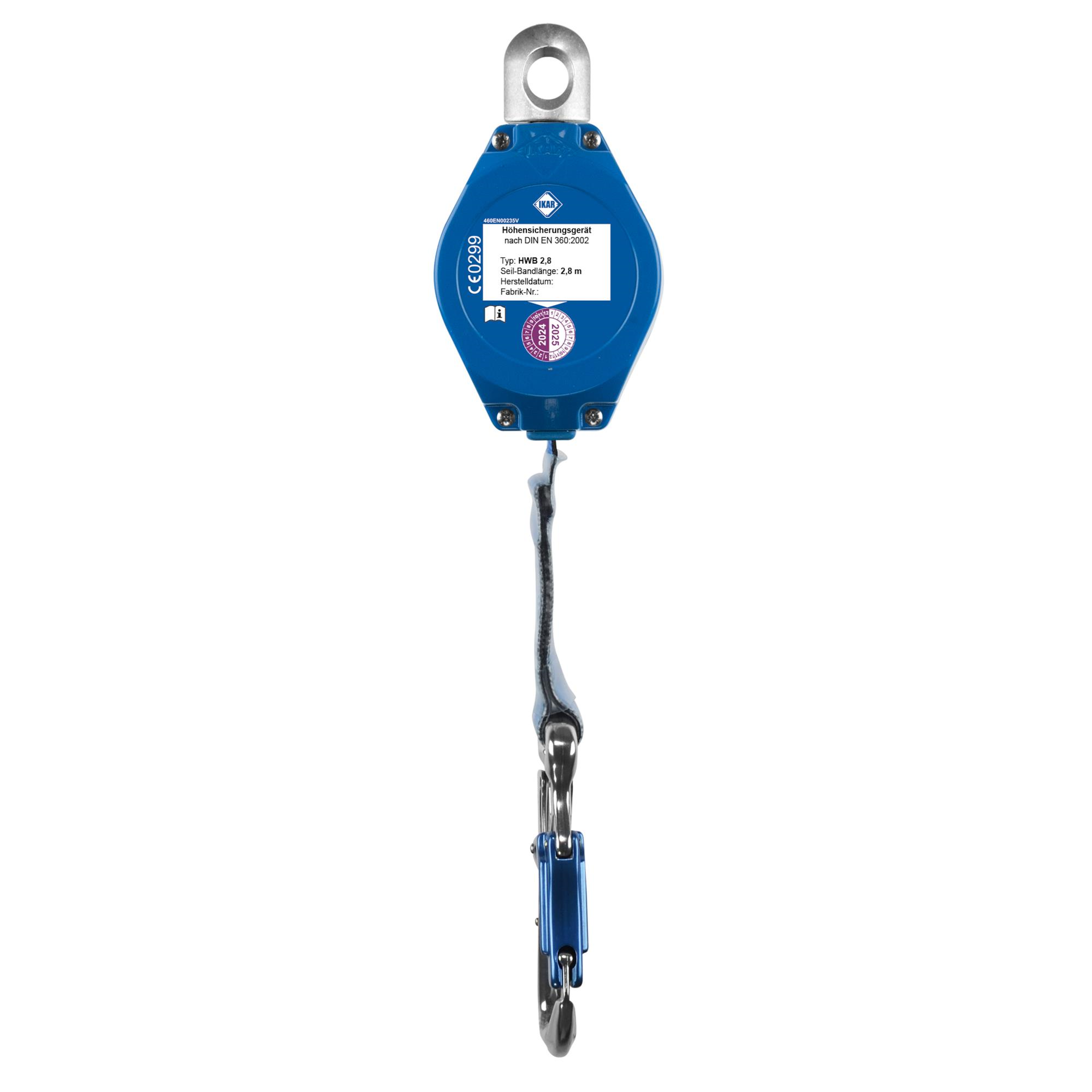

IKAR HWB 2.8 / A4000W028 - length 2.8 m

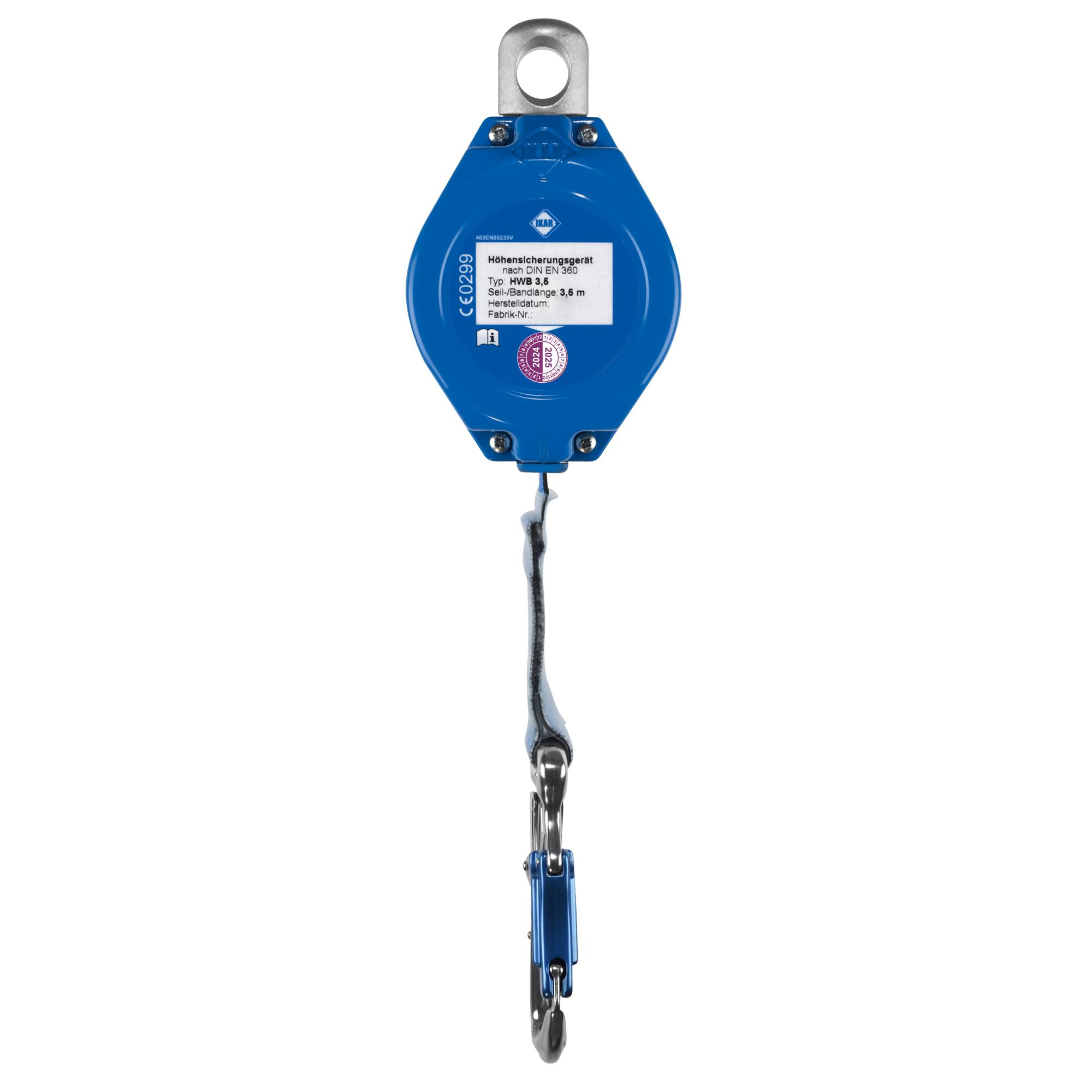

IKAR HWB 3.5 / A4000W035
- length 3.5 m

Retractable fall arrester with webbing lifeline and built-in shock absorber featuring rotating attachment point and double action connector

  • lightweight aluminium housing with a dyneema webbing lifeline
  • swivel eye attachment point
  • sewn in load indicator on the lifeline
  • additional testing against falls over edges (r≥0,5mm)
  • steel double action hook on the end of the lifeline
  • device can be attached to an anchorage point or safety harness
  • HWB 1.8 can be used as protection against falls in working cages of lifting platforms under specific conditions

specific instructions of use for IKAR HWB 1.8

(use in working cages of lifting platforms)


    Weight: 0.7 / 0.8 / 1.1 kg
    Length: 1.8 / 2.8 / 3.5 m
    Gate opening (d): 22 mm
    Working load: 136 kg

    Download

    high resolution picture instructions of use

    0229, EN 360, ANSI/ASSE Z359.1-2007, ANSI/ASSE Z359.14-2014, CSA Z259.2.2
