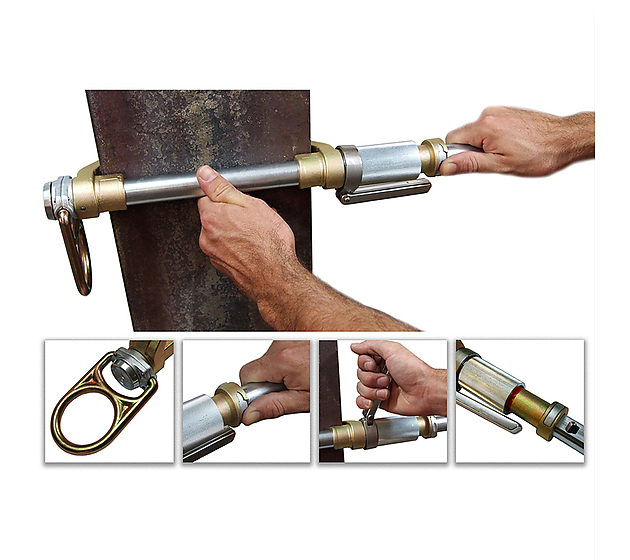

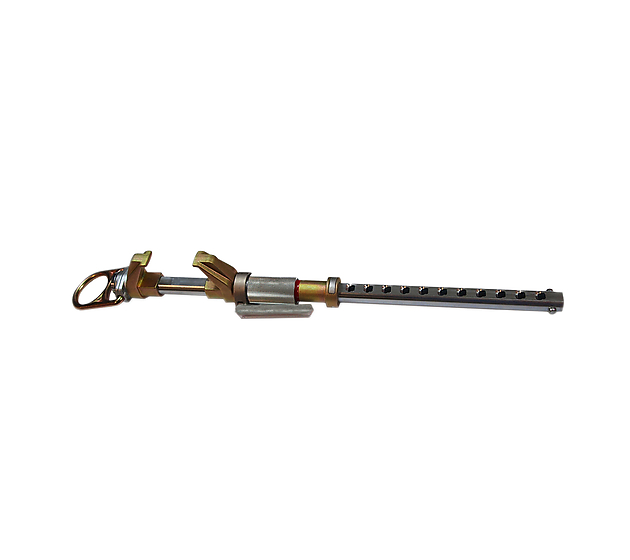

Fixed I-beam anchor is designed to clamp onto a vertical or horizontal I-beam to create a fixed anchor point.

  • zinc plated components
  • stainless Steel D-Ring Mount
  • static tensile strength: 22kN
  • maximum capacity 140kg when used as a single point anchorage
Span: 100 - 350 mm
Maximum load: 140 kg

Weight3105 g • 109.5 oz
Strength22 kN
ce 0321 EN 795 ANSI Z359.18 ANSI Z359.7 OSHA 1910.66/1926.503


instructions of use PDF - 0,6 MB
Activities at height such as climbing, via ferrata, caving, rappelling, ski-touring, rescue, work at height and exploration are dangerous activities, which may lead to severe injury or even death. This the following is essential before use:
careful reading and understanding of the instructions for useacquaintance with the possibilities and limitations of the productadequate apprenticeship in appropriate techniques and methods of useunderstanding and acceptance of the risk involved
In case of doubt or problem of understanding, contact SINGING ROCK.
