PILOT R3
PILOT R3 / X0069XXR3
(available from Q2 2024)

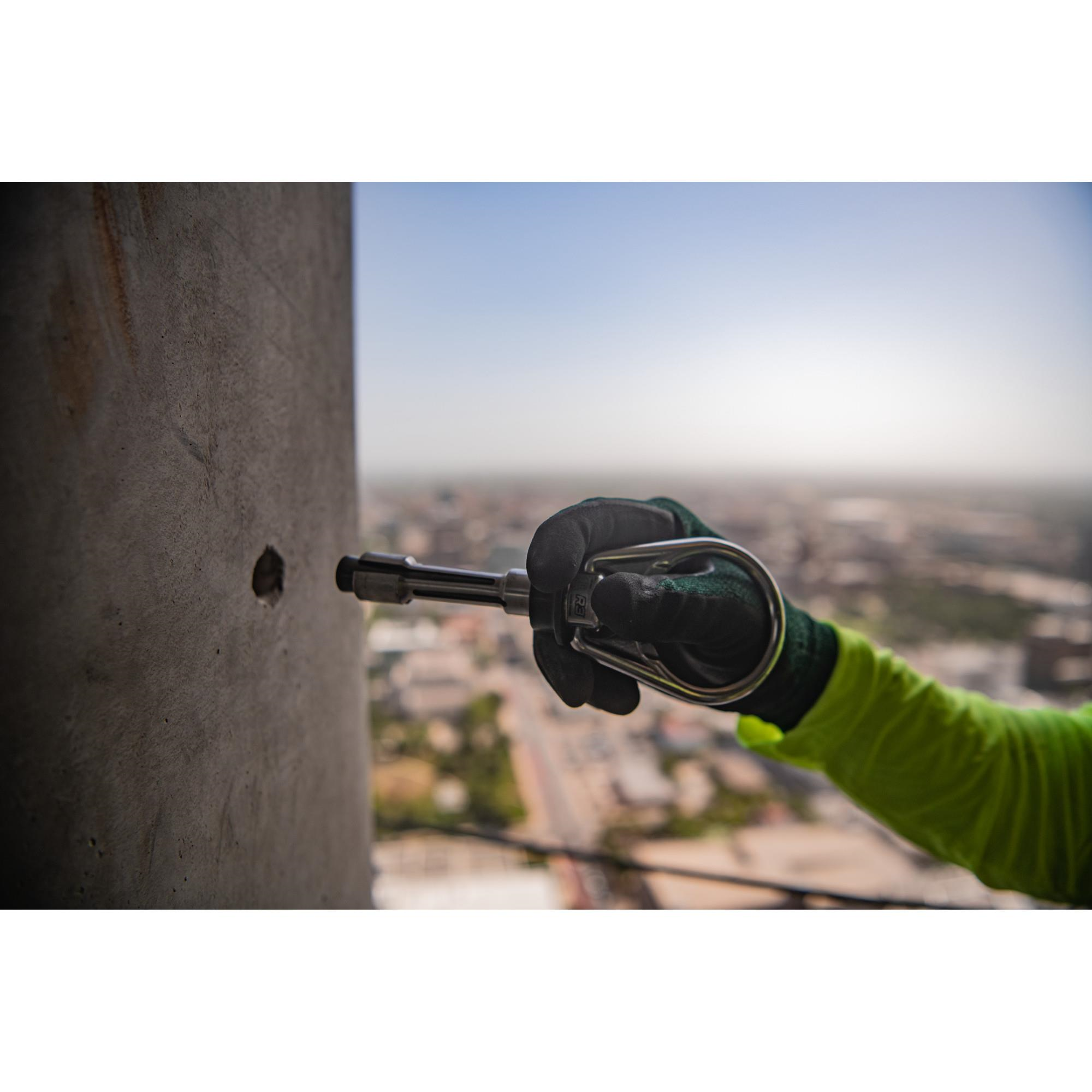

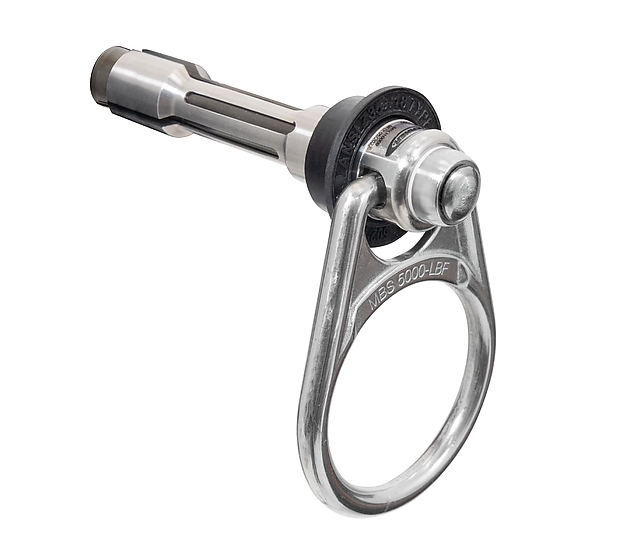

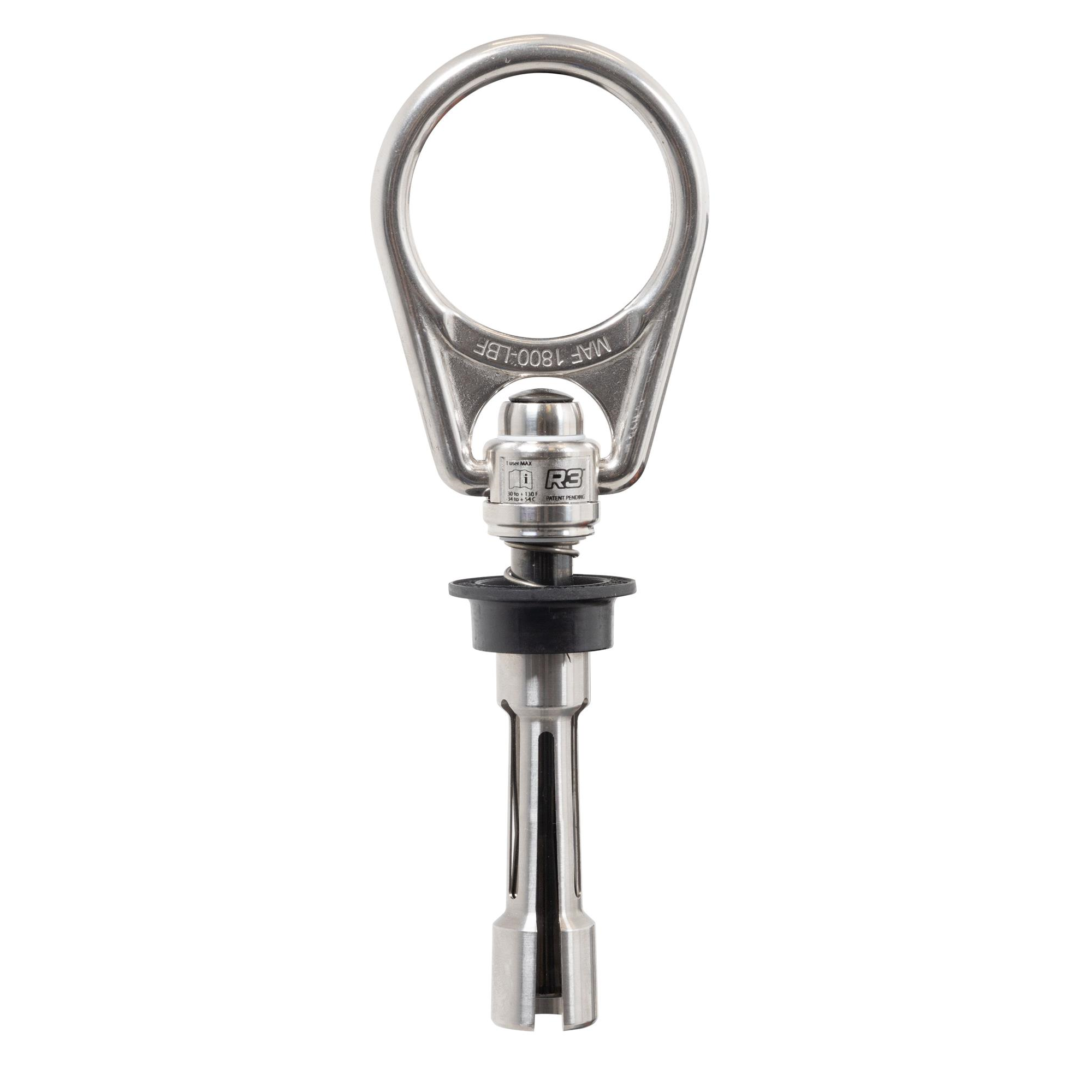

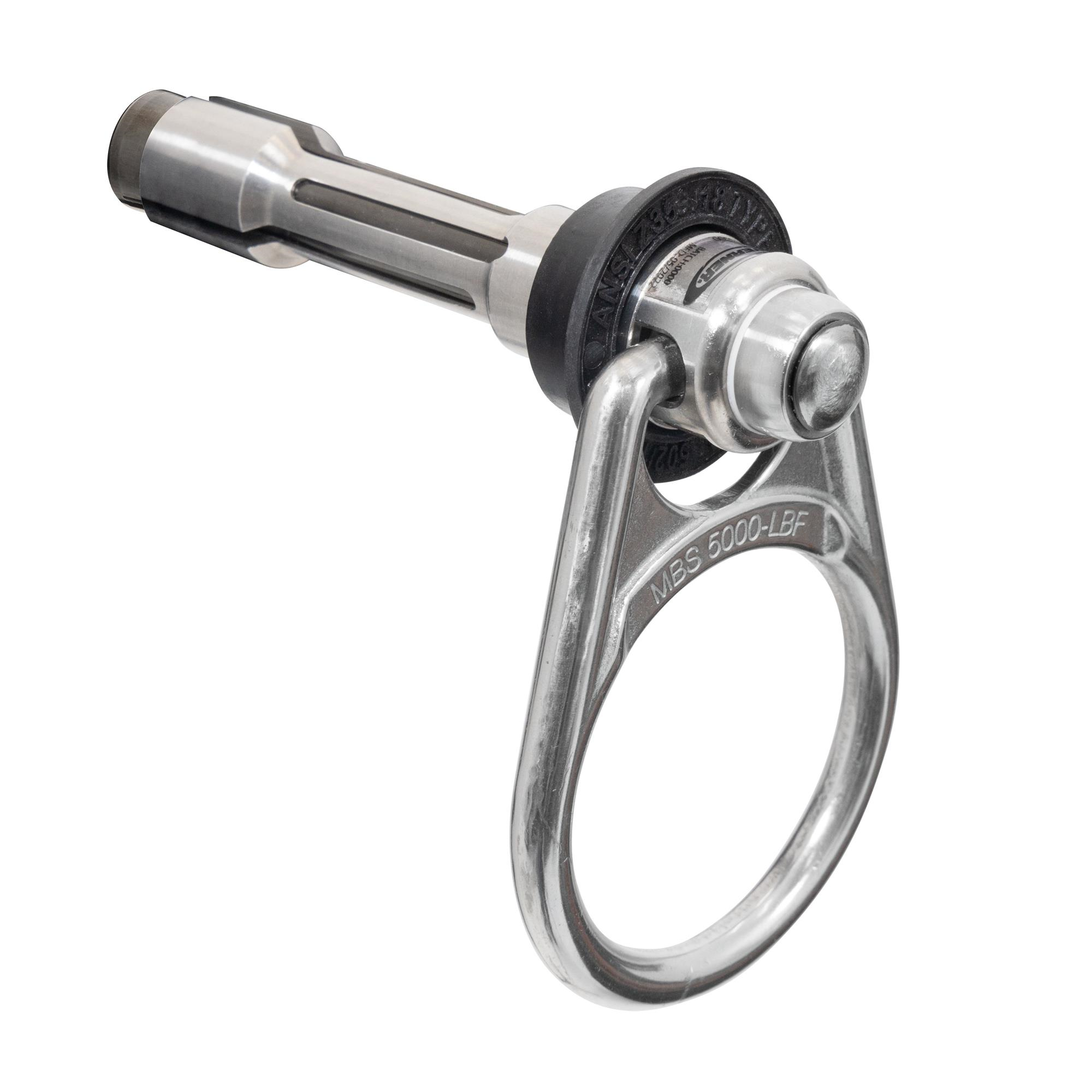

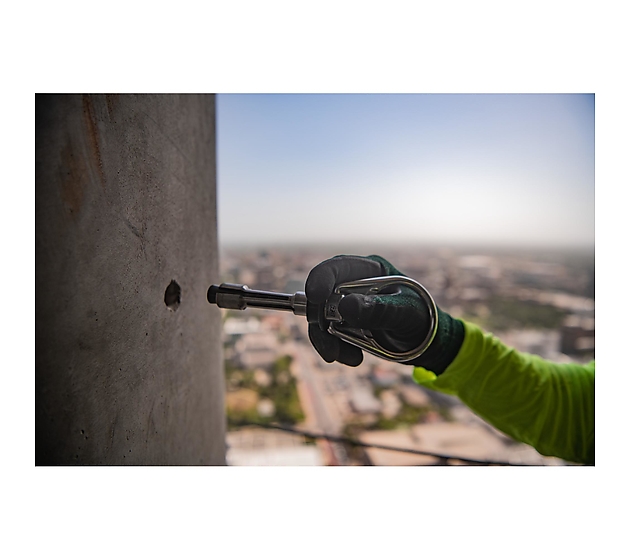

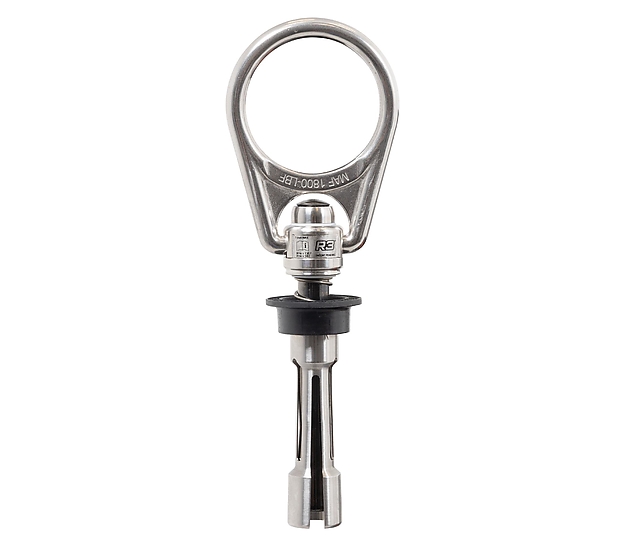

Pilot R3 Concrete Anchor is a reusable, safe, and secure anchorage solution for horizontal, vertical, or overhead anchoring applications.
- A rapid quick-release button allows users to easily install and remove, boosting productivity
- Built with a rigid tri-wedge design and diamond-hard carbon coating, it enhances durability in all types of concrete applications

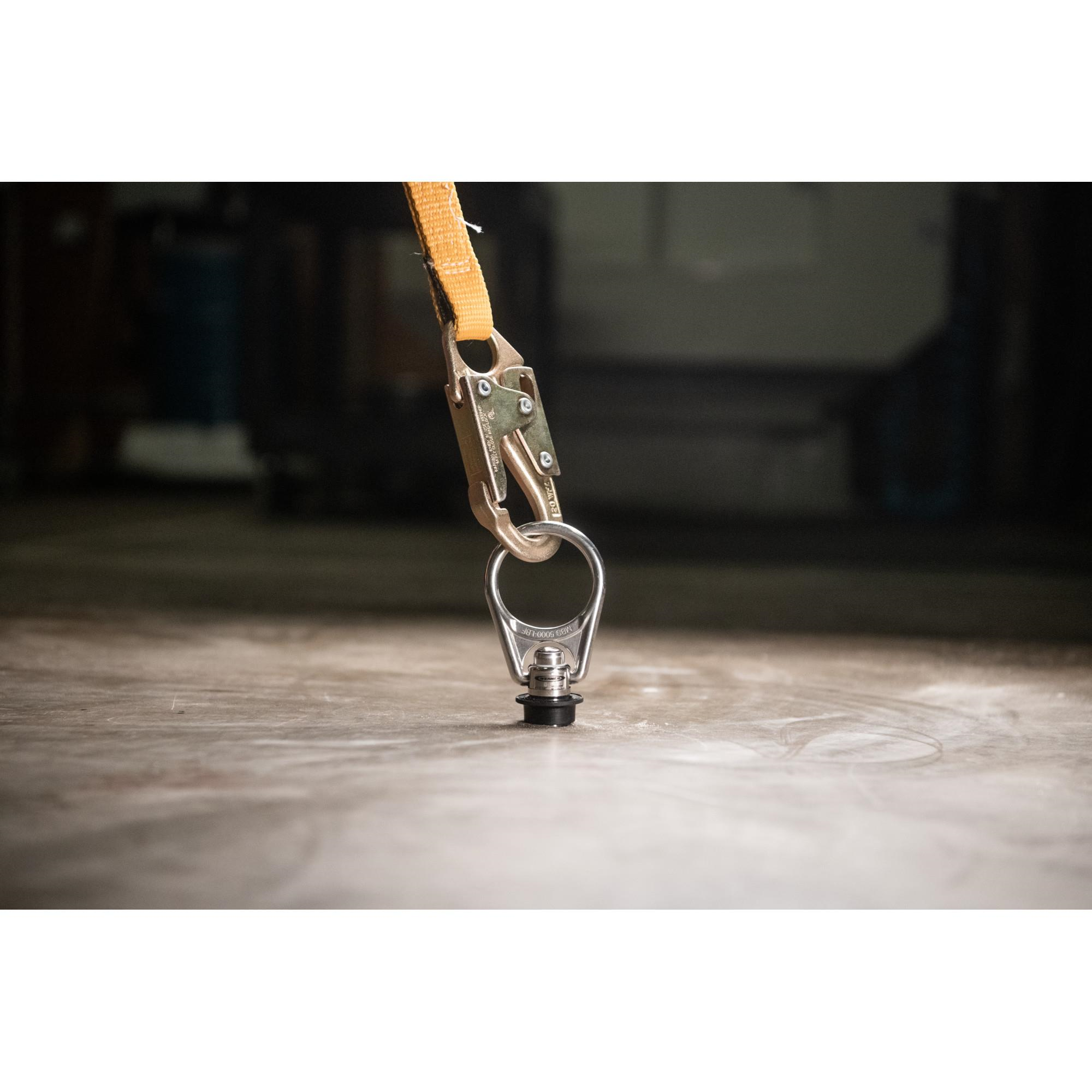

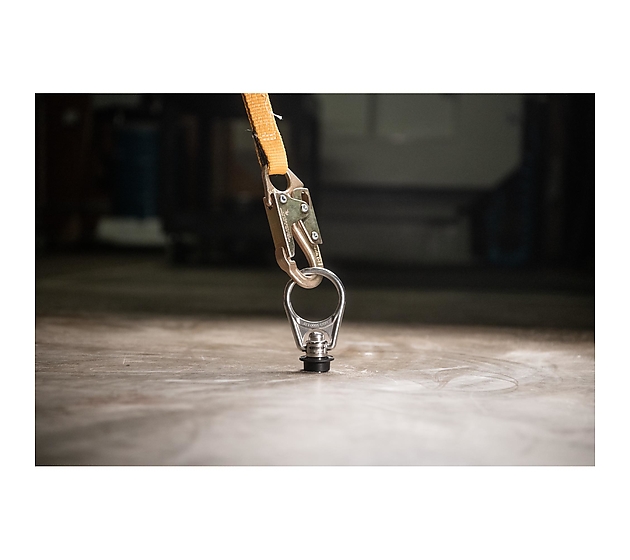

- The anchor incorporates an omni-directional design allowing the connector to rotate 360 degrees, and flip back and forth 180 degrees, to increase connector compatibility

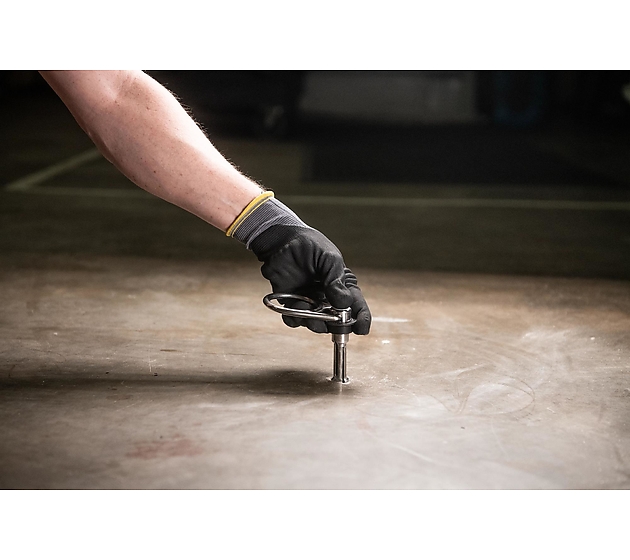

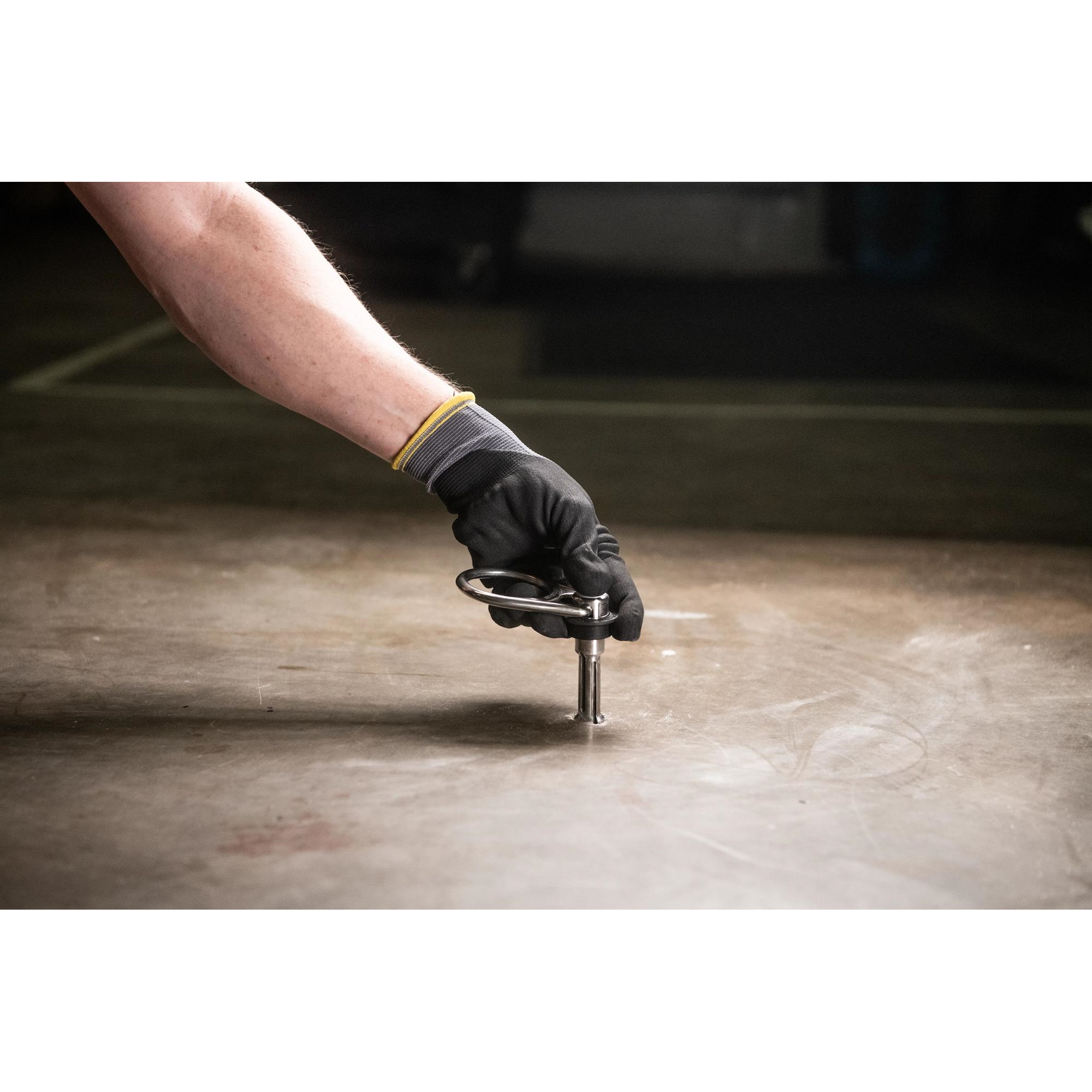

- Secure one-hand operation with push-to-stop installation
- Cycle tested to 5,000 uses
- Corrosion-resistant stainless-steel tri-wedge design
- Forged stainless steel swivel D-Ring
- For one user only
Diameter of a hole: 20 mm (3/4")
| Weight | 350 g |
|---|---|
| Size | 3/4" |
| Strength | 22 kN |
0161
EN 795:2012 Typ B
ANSI Z359.18 Typ A
Activities at height such as climbing, via ferrata, caving, rappelling, ski-touring, rescue, work at height and exploration are dangerous activities, which may lead to severe injury or even death. This the following is essential before use:
careful reading and understanding of the instructions for useacquaintance with the possibilities and limitations of the productadequate apprenticeship in appropriate techniques and methods of useunderstanding and acceptance of the risk involved
In case of doubt or problem of understanding, contact SINGING ROCK.
