TECHNIC ANSI
TECHNIC ANSI standard / W0103BB - Easy-lock buckles
TECHNIC ANSI speed / W0104BB - SPEED buckles

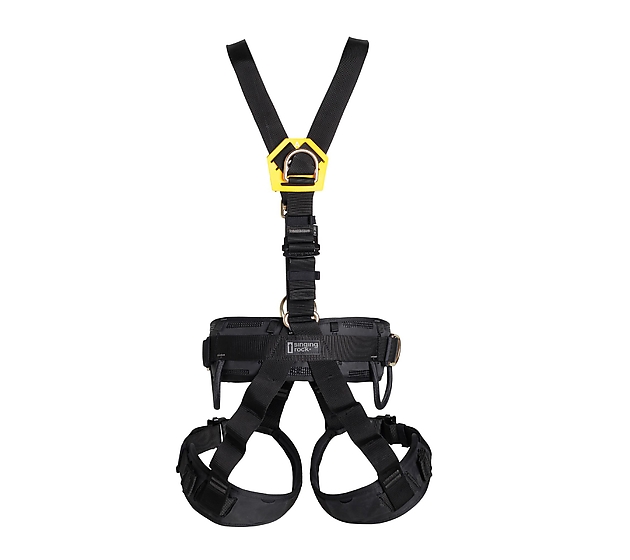

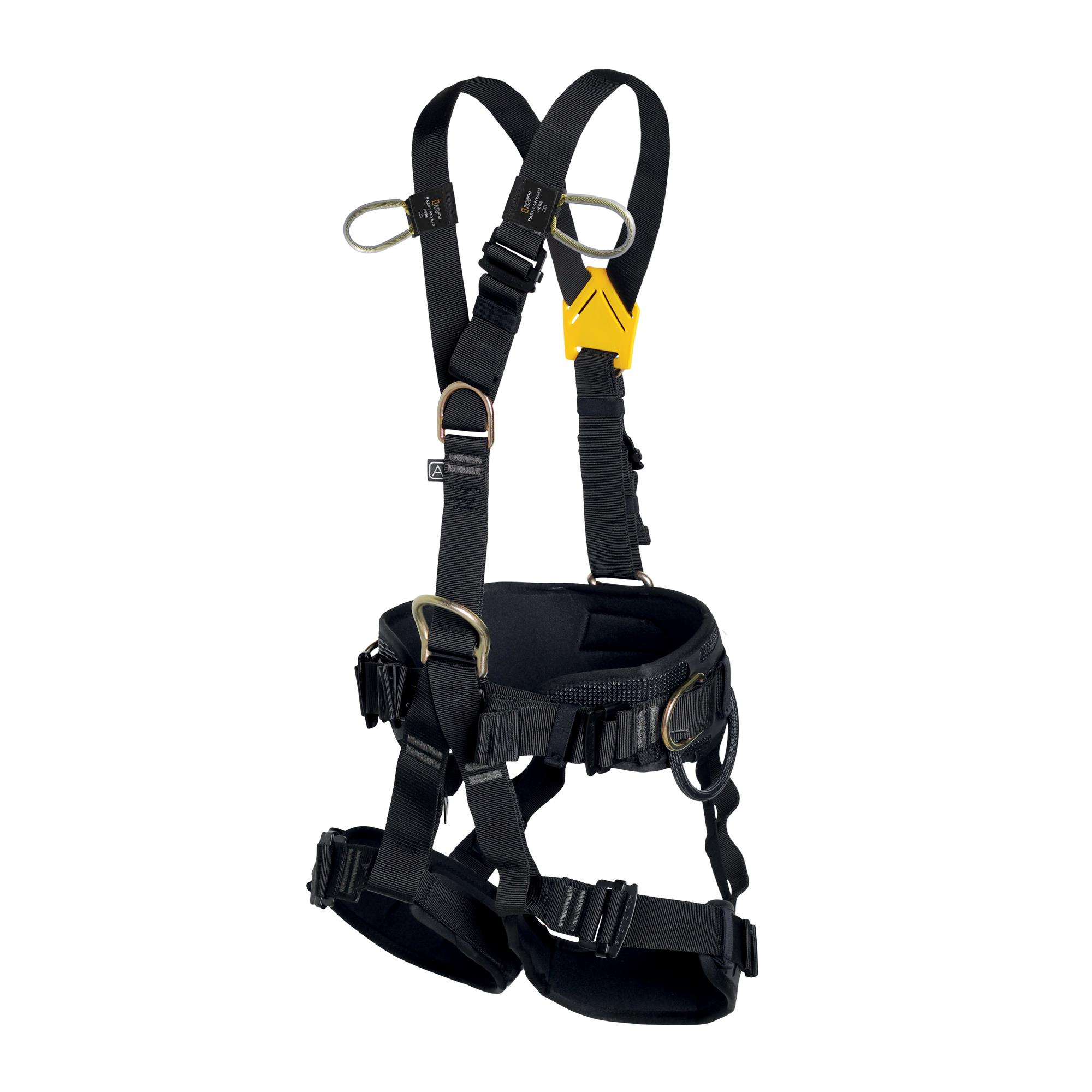

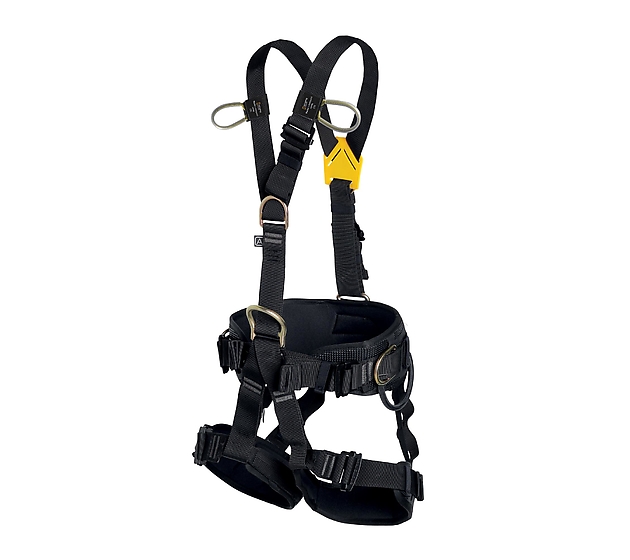

Fully adjustable full body harness for rope access, work positioning and fall arrest with Easy-lock or SPEED buckles, steel components, fall indicator and connector keepers.
TECHNIC ANSI speed / W0104BB - SPEED buckles
Fully adjustable full body harness for rope access, work positioning and fall arrest with Easy-lock or SPEED buckles, steel components, fall indicator and connector keepers.
- harness is certified to the latest American Standards ANSI Z359.11-2021 and NFPA 1983 Class III
- ergonomic and removable BIG/GIGA connector keepers on the shoulder straps allow you to store the fall arrest connectors when not in use - in case of a fall, the loops will release to allow the shock absorber can be safely deployed

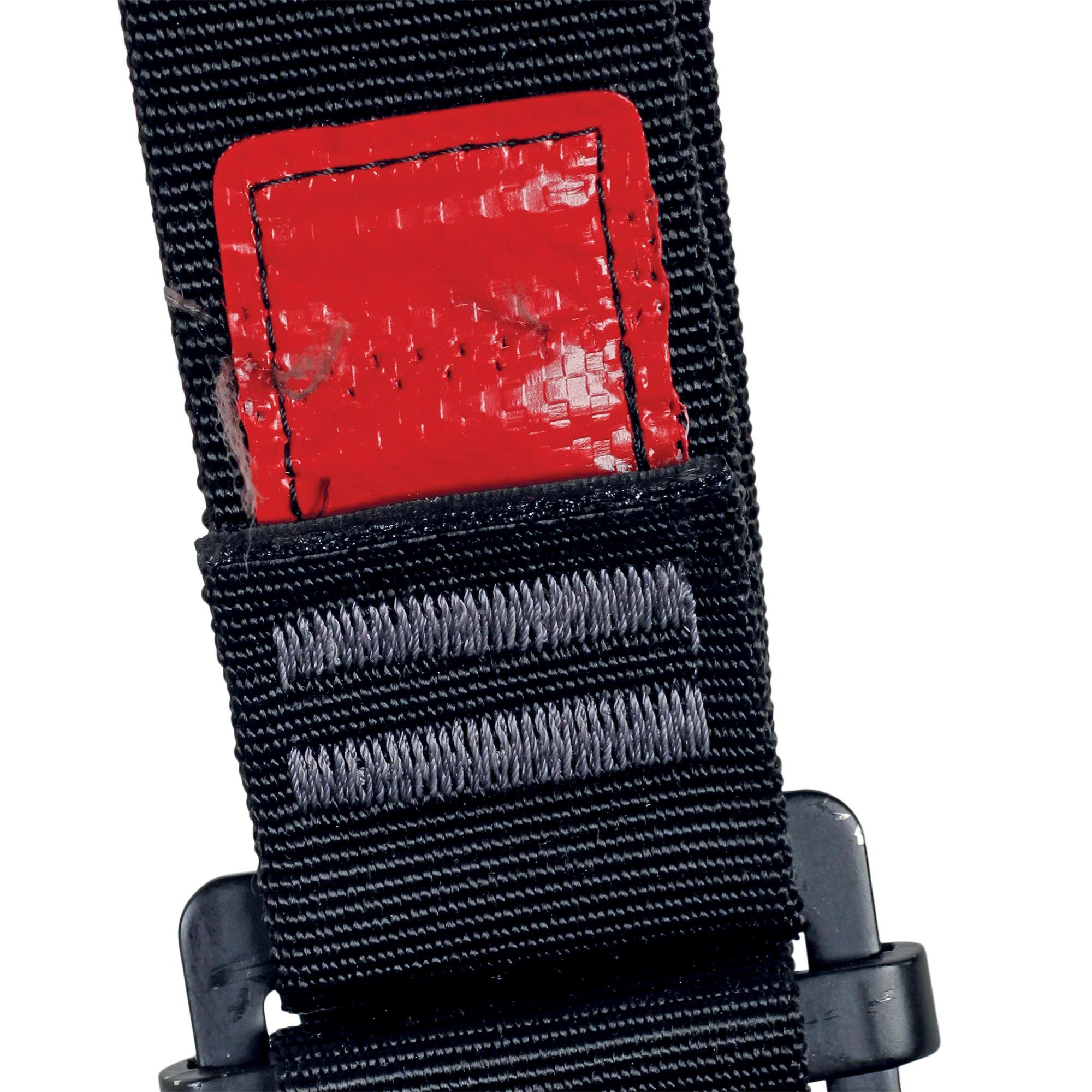

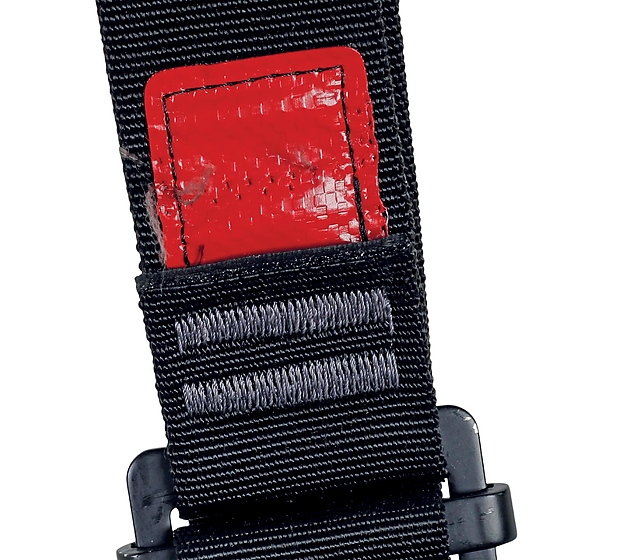

- for easy inspection, the harness is equipped with a fall indicator in the area of the back attachment point which is activated as a result of a fall, a red label indicates that the harness must be retired
- front large attachment point for attaching descender or work positioning devices (EN 813, EN 358)
- steel side positioning points according to EN 358 with position adjustment are placed symmetrically and do not interfere at work
- front and rear attachment points for fall arrest (EN 361)
- rear attachment point does not interfere with carrying a backpack or breathing apparatus

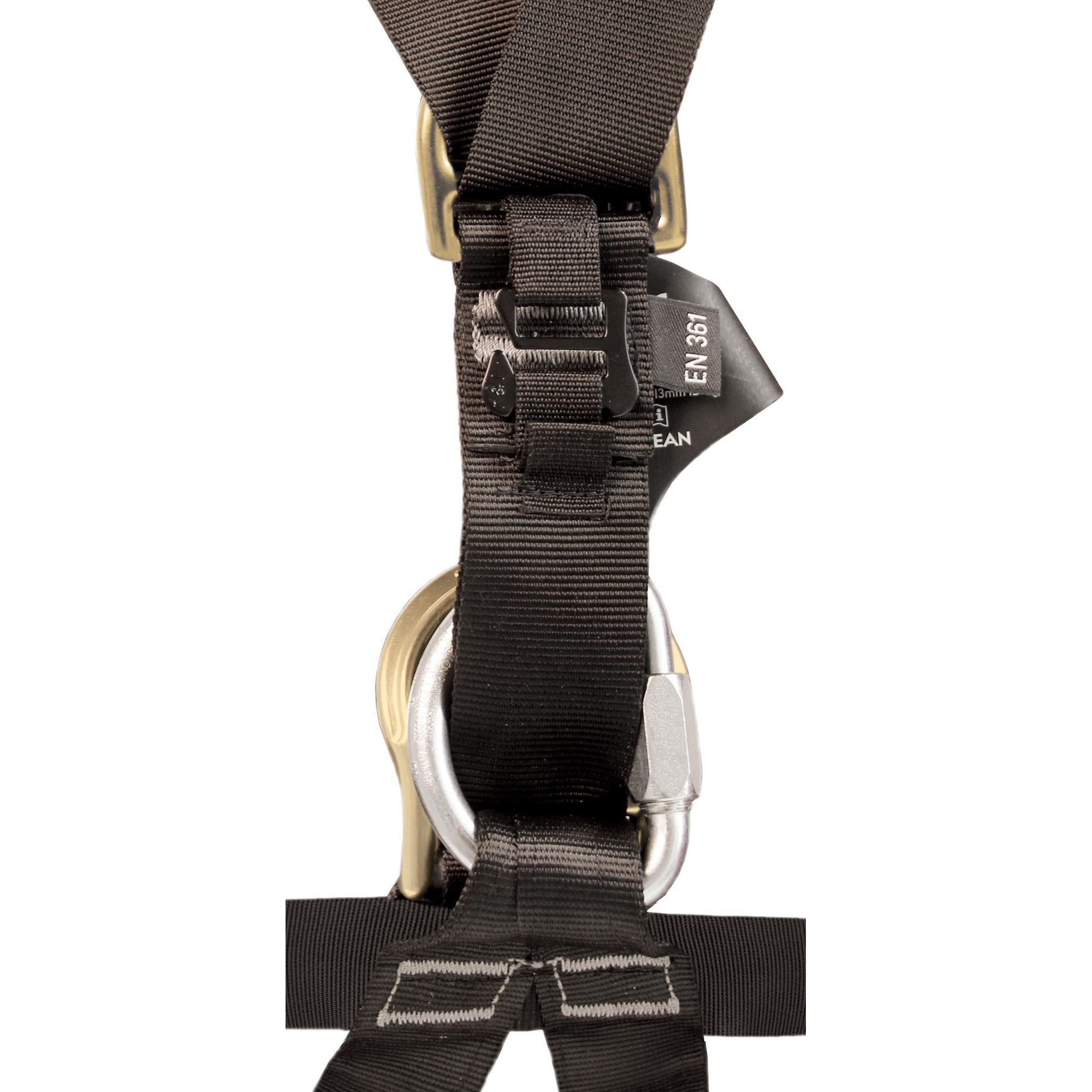

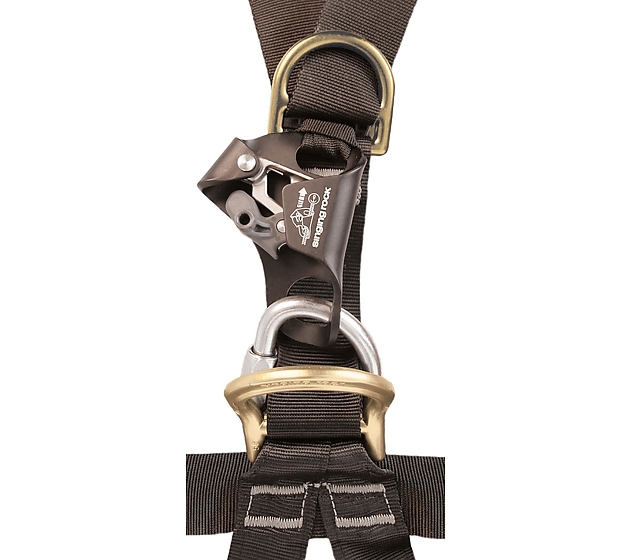

- attachment of the CAM CLEAN chest ascender by a maillon and the STRAP FOR CAM CLEAN
- 2 braided gear loops with a bearing capacity of 5 kg
- additional slots on the waist belt allow you to safely hang expensive equipment (chainsaw, drill...)
- corrosion resistance of the steel components is tested by spraying in a salt chamber for 48 hours
| Color | black |
|---|---|
| Weight | 1805 g standard • 2085 g speed [size M/L] 63.67 oz standard • 73.55 oz speed [size M/L] |
| Size | S, M/L, XL |
| Max. rated load | 150 kg (140 kg/310 lbs according ANSI) |
NFPA 1983 Class III
ANSI Z359.11
1019
EN 358
EN 361
EN 813
1019
EN 358
EN 361
EN 813
Video
How to put on working full body harness correctly.
Size table
| SIZE | S | M-L | XL |
|---|---|---|---|
| A (cm) | 65-80 | 75-100 | 85-130 |
| A (in) | 25-31 | 29-39 | 33-51 |
| B (cm) | 45-60 | 50-75 | 50-75 |
| B (in) | 18-24 | 20-29 | 20-29 |
| C (cm) | 150-170 | 160-180 | 175-205 |
| C (ft) | 4.9–5.6 | 5.25-5.9 | 5.7–6.7 |
Download
catalogue sheet
PDF - 1,1 MB
instructions of use
PDF - 0,6 MB
universal instructions of use PPE
PDF - 0,9 MB
technical parameters
PDF - 0,6 MB
