EXPERT 3D speed steel
EXPERT 3D speed steel / W0080DR
Fully adjustable harness for rope access with a padded wide waist belt, leg loops and shoulder straps. Suitable also for work positioning, fall arrest and work restraint situations. The variant of the EXPERT 3D harness with SPEED buckles and all metal parts in steel.
Fully adjustable harness for rope access with a padded wide waist belt, leg loops and shoulder straps. Suitable also for work positioning, fall arrest and work restraint situations. The variant of the EXPERT 3D harness with SPEED buckles and all metal parts in steel.
- harness certified according to the newest North American standards ANSI Z359.11 and NFPA 1983 Class III
- removable lanyard keepers on the shoulder straps allow the user to store lanyard connectors when not in use, in case of a fall, the connector is released so that the shock absorber can be safely deployed

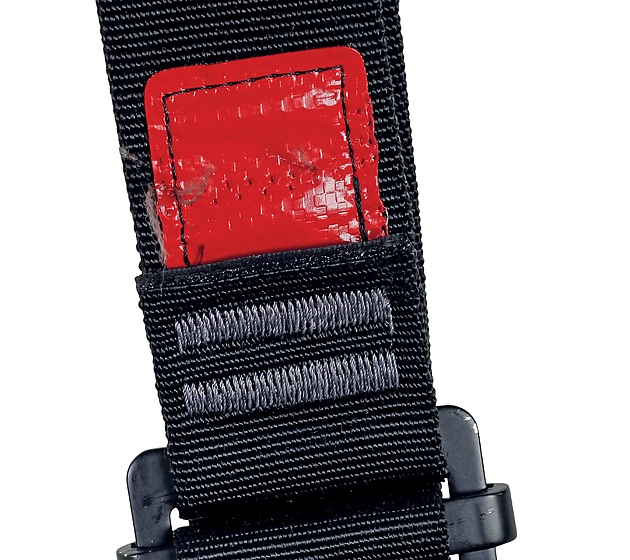

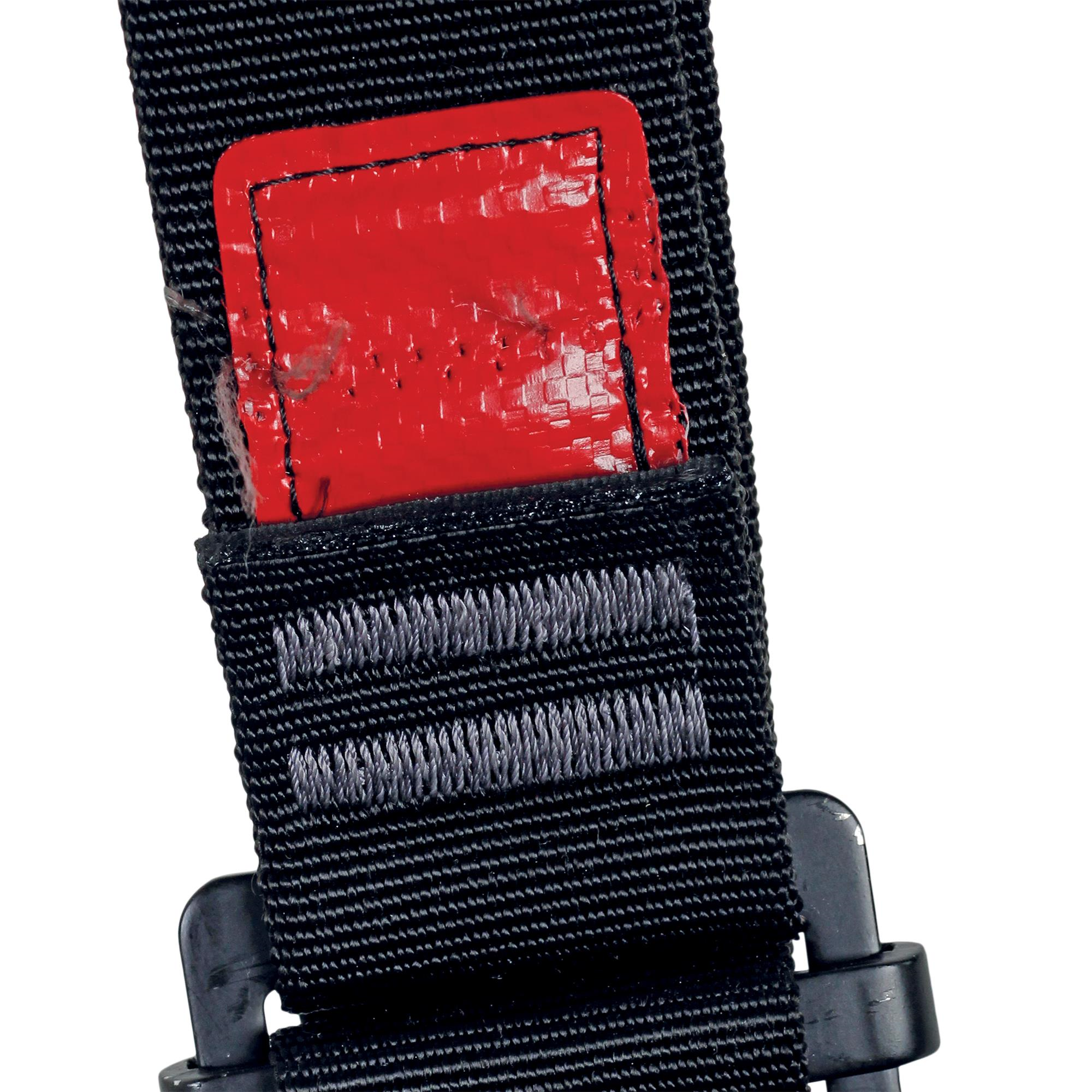

- for easier inspection, the harness is equipped with a fall indicator, placed close to the dorsal attachment point, which is activated in case of a fall - a red label indicates that the harness must be retired
- shoulder straps can be totally removed and the harness can be used as a sit harness only
- super comfortable wide waist belt padding provides maximum comfort when working at height
- strength webbing on the waist belt is stitched in the way that at normal working situation the body weight is absorbed by the padding only
- reflective strap and printing on the waist belt and a reflective strap on the shoulder padding increase the visibility in dark working conditions (the black version of the harness is not equipped with the reflective elements)
- anatomic leg loops and waist belt are covered with a strong PES fabric providing high abrasion resistance
- SPEED buckles enable fluent and fast adjustment to fit a user's body
- steel triple lock carabiner used for the connection of the shoulder straps to the main point to increase the space for chest ascender attachment

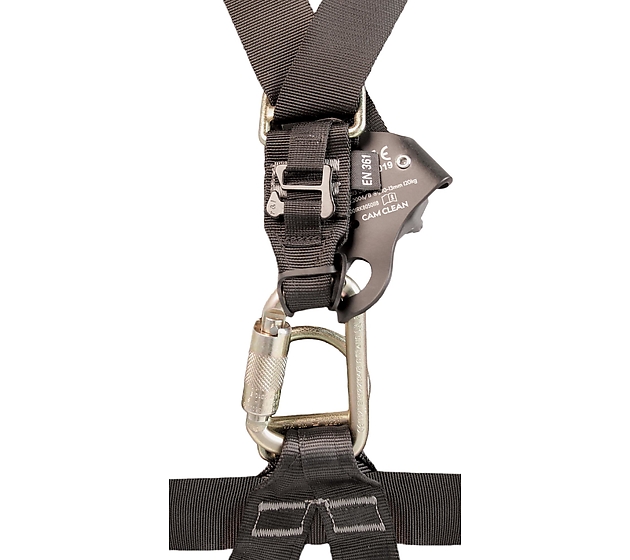

- chest ascender smart fixation system with a plastic cover on the carabiner increasing the durability of the webbing (works best with CAM CLEAN)
- shoulders straps and leg loops are independently adjustable
- narrowed padding and webbing on the shoulder straps in a neck area enhance comfortable work
- front and back attachment points for fall arrest according to EN 361 marked with additional “A“ marking
- flat rear attachment point does not bear on users back when carrying backpack or breathing apparatus
- front lower attachment point for descender placement or work positioning according to EN 813
- 2 side attachment points for work positioning according to EN 358
- 4 ergonomic braided gear loops with a bearing capacity of 15 kg
- heavier items up to 35 kg can be attached to the webbing on the waist belt
- additional loops on the waist belt and leg loops with a bearing capacity of 5 kg offer additional space for the gear and better gear organization
- wide elastic band at left shoulder strap for the gear attachment (e.g. transmitter)
- slots at the waist belt for PORTER and PORTER XL tool holder to carry your tools and gear
- shoulder attachment points for confined space rescue according to EN 1497
- steel buckles are finished with E-coating and steel attachment points are zinc-plated
- corrosion resistance of all steel components is tested by spraying in a salty chamber for a period of 48 hours
- identification and methodical label
| Color | black with yellow |
|---|---|
| Weight | 2830 g [size M/L] • 99.83 oz |
| Size | S, M/L, XL |
| Max. rated load | 150 kg |
NFPA 1983 Class III
ANSI Z359.11
1019
EN 358, EN 361, EN 813, EN 1497
1019
EN 358, EN 361, EN 813, EN 1497
Video
Singing Rock EXPERT 3D work harnesses
CAM CLEAN chest ascender fixation on EXPERT harnesses
Size table
| SIZE | S | M-L | XL |
|---|---|---|---|
| A (cm) | 65-80 | 75-100 | 85-130 |
| A (in) | 25-31 | 29-39 | 33-51 |
| B (cm) | 45-60 | 50-75 | 50-75 |
| B (in) | 18-24 | 19-29 | 19-29 |
| C (cm) | 150-170 | 160-180 | 175-205 |
| C (ft) | 4.9–5.6 | 5.3-5.9 | 5.7–6.7 |
Download
catalogue sheet
PDF - 0,5 MB
instructions of use
PDF - 0,6 MB
universal instructions of use PPE
PDF - 0,9 MB
technical parameters
PDF - 0,6 MB
