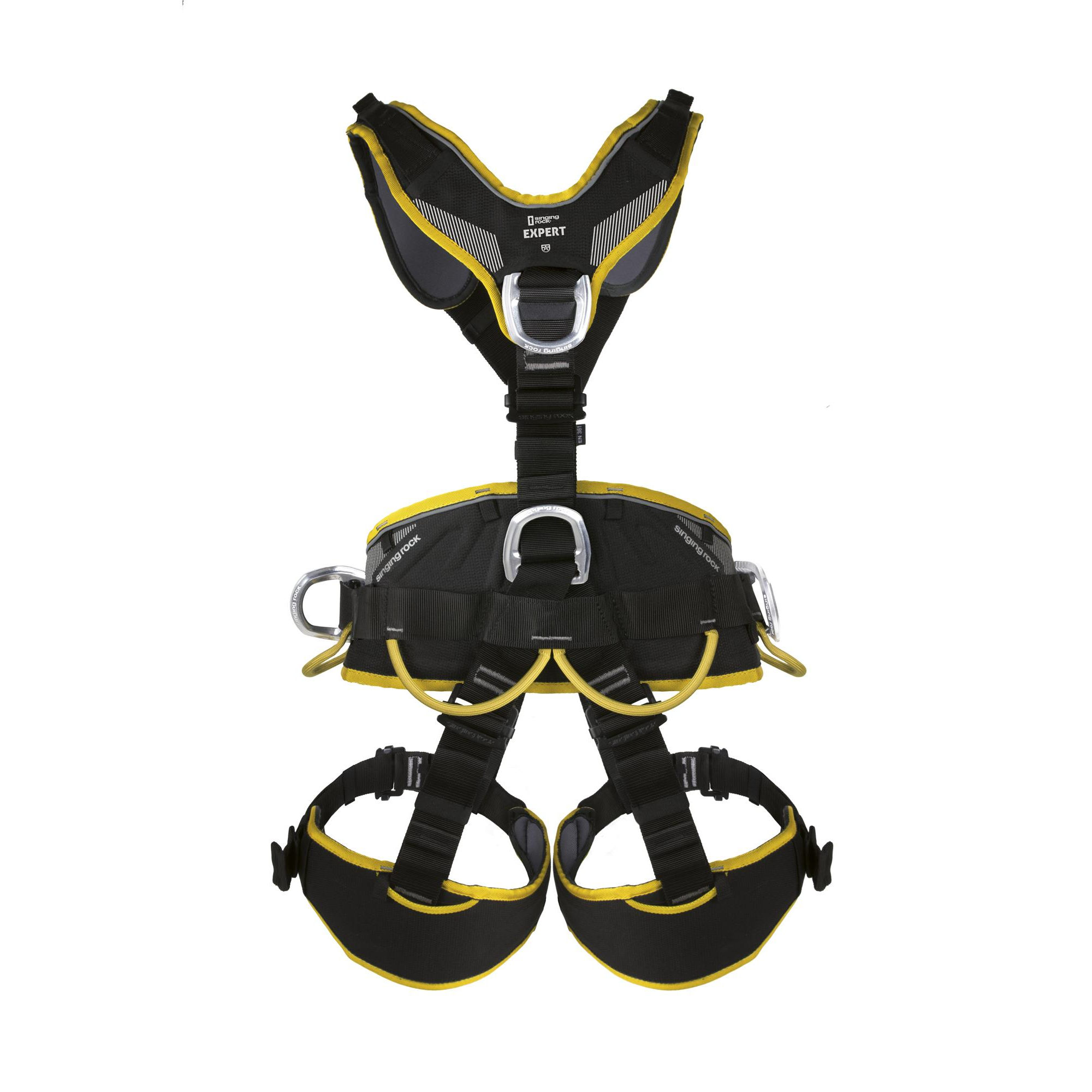

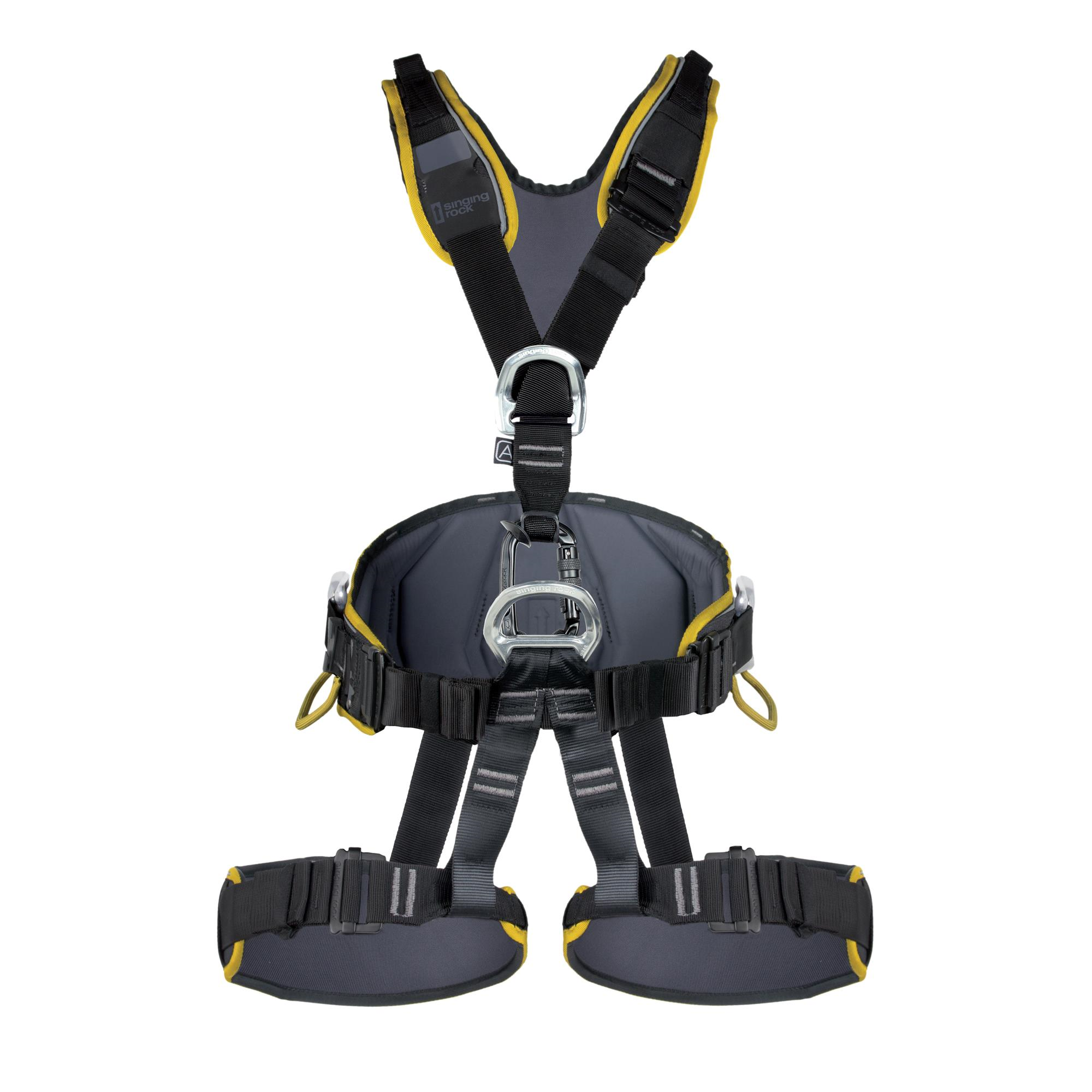

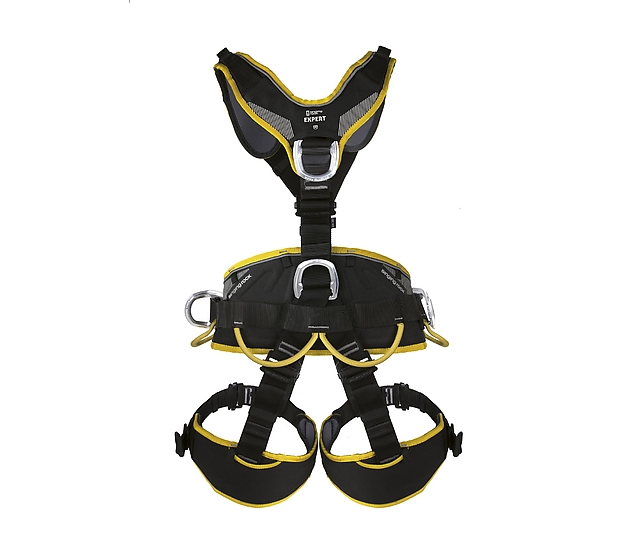

EXPERT 3D standard / W0078DR

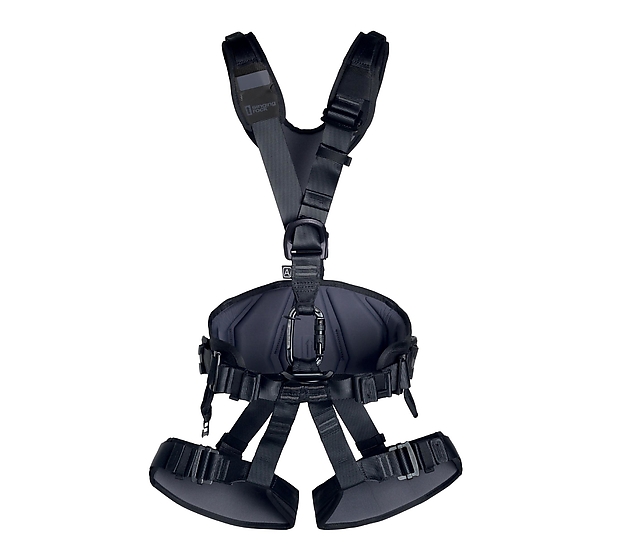

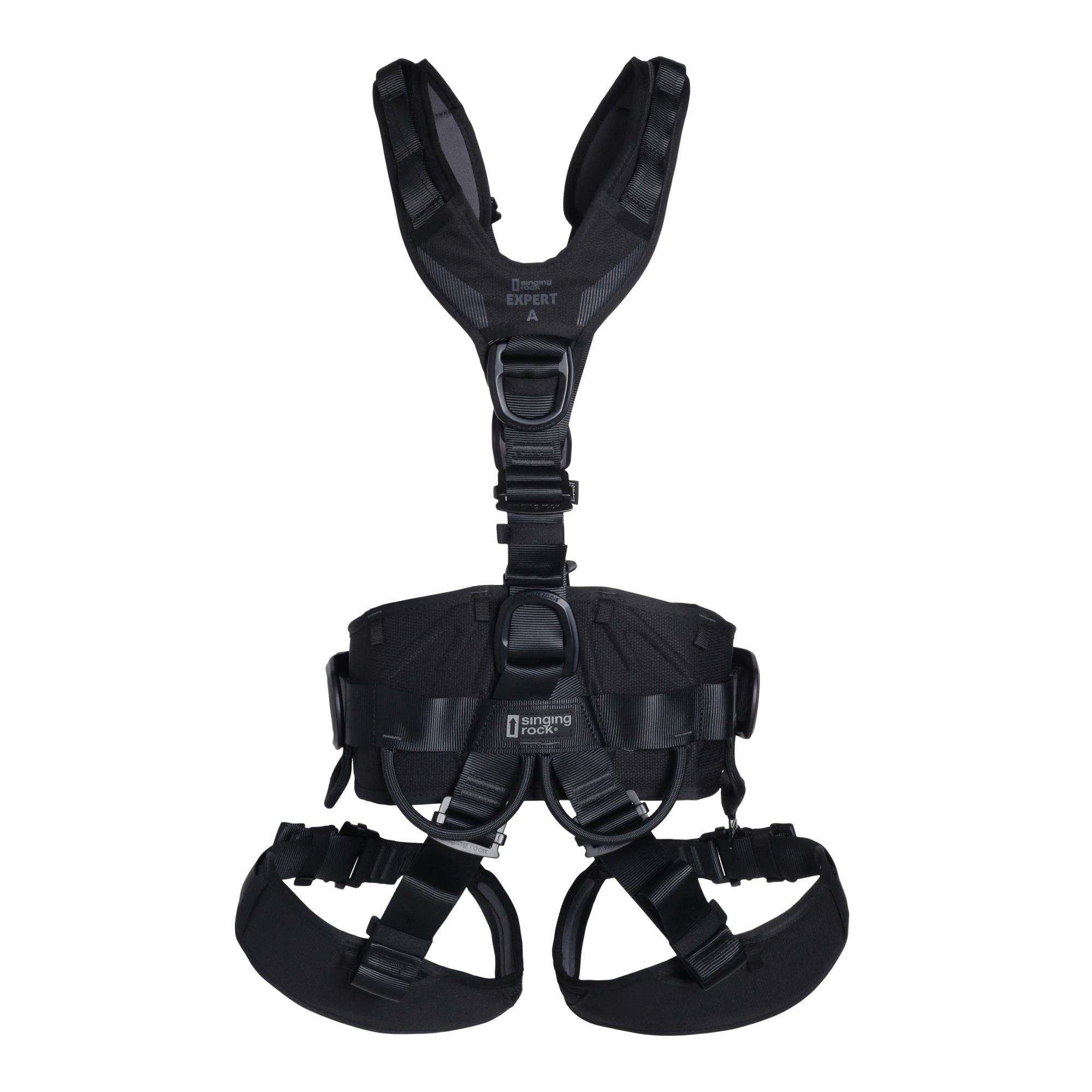

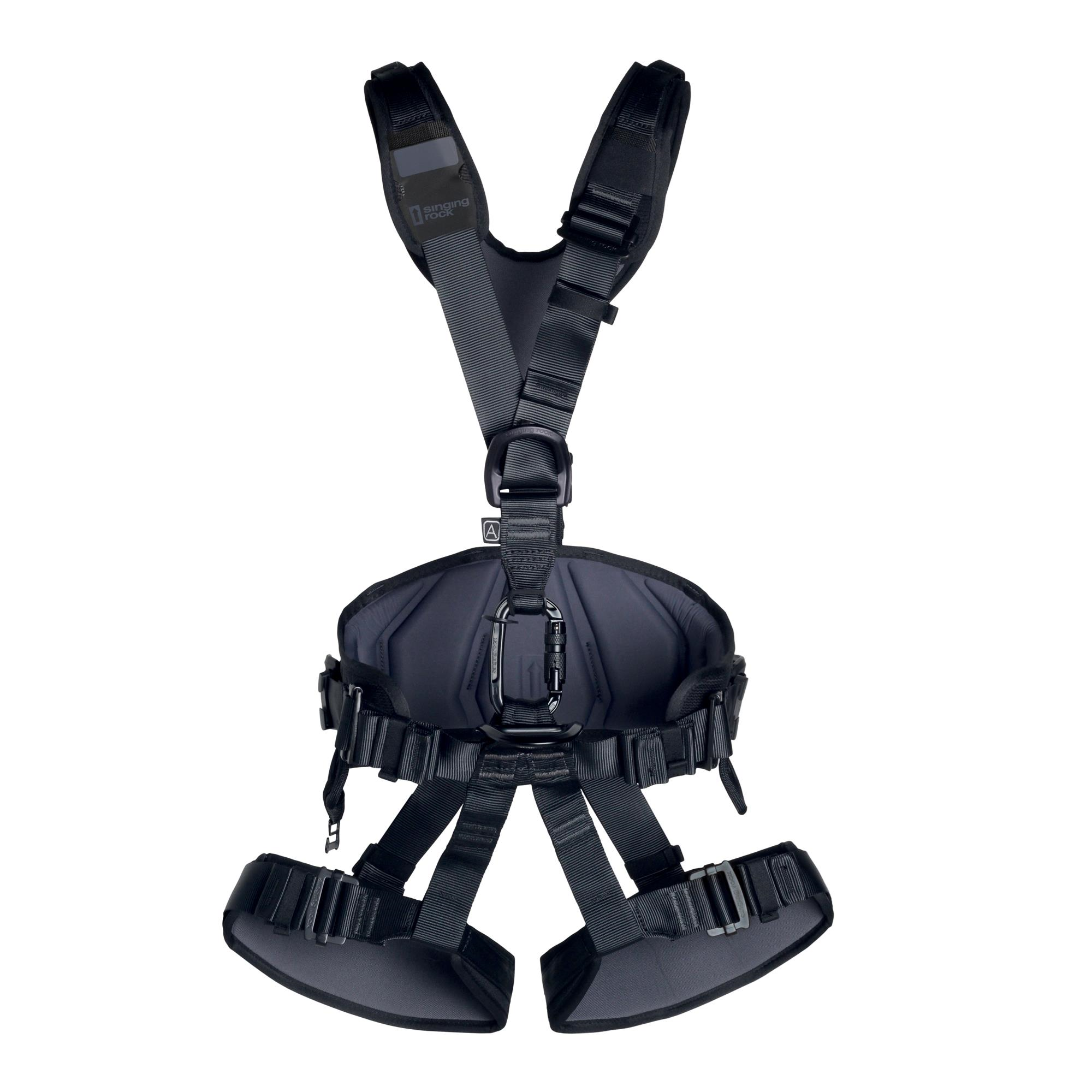

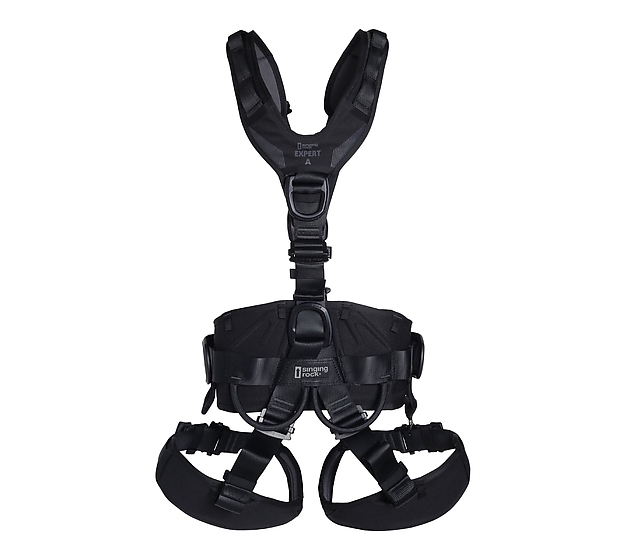

EXPERT 3D standard / W0078DB - black version

Fully adjustable harness for rope access with a padded wide waist belt, leg loops and shoulder straps. Suitable also for work positioning, fall arrest and work restraint situations. The variant of the EXPERT 3D harness with Easy-lock buckles.

  • shoulder straps can be totally removed and the harness can be used as a sit harness only
  • super comfortable wide waist belt padding provides maximum comfort when working at height
  • strength webbing on the waist belt is stitched in the way that at normal working situation the body weight is absorbed by the padding only
  • reflective strap and printing on the waist belt and a reflective strap on the shoulder padding increase the visibility in dark working conditions (the black version of the harness is not equipped with the reflective elements)
  • anatomic leg loops and waist belt are covered with a strong PES fabric providing high abrasion resistance
  • standard Easy-lock buckles enable smooth adjustment
  • OXY triple lock carabiner used for the connection of the shoulder straps to the main point to increase the space for chest ascender attachment
  • chest ascender smart fixation system with a plastic cover on the OXY carabiner increasing the durability of the webbing (works best with CAM CLEAN)
  • shoulders straps and leg loops are independently adjustable
  • narrowed padding and webbing on the shoulder straps in a neck area enhance comfortable work
  • front and back attachment points for fall arrest according to EN 361 marked with additional “A“ marking
  • flat rear attachment point does not bear on users back when carrying backpack or breathing apparatus
  • front lower attachment point for descender placement or work positioning according to EN 813
  • 2 side attachment points for work positioning according to EN 358
  • all steel components finished with E-coating for higher corrosion resistance
  • 4 ergonomic braided gear loops with a bearing capacity of 15 kg
  • heavier items up to 35 kg can be attached to the webbing on the waist belt
  • additional loops on the waist belt and leg loops with a bearing capacity of 5 kg offer additional space for the gear and better gear organization
  • wide elastic band at left shoulder strap for the gear attachment (e.g. transmitter)
  • slots at the waist belt for PORTER and PORTER XL tool holder to carry your tools and gear
  • shoulder attachment points for confined space rescue according to EN 1497
  • identification and methodical label
Colorblack with yellow, black
Weight2110 g [size M/L] • 74.43 oz
SizeS, M/L, XL
Max. rated load150 kg
ce 1019 EN 358 EN 361 EN 813 EN 1497

Video

Singing Rock EXPERT 3D work harnesses
CAM CLEAN chest ascender fixation on EXPERT harnesses

Size table

Tabulka velikostí
SIZE S M-L XL
A (cm) 65-80 75-100 85-130
A (in) 25-31 29-39 33-51
B (cm) 45-60 50-75 50-75
B (in) 18-24 19-29 19-29
C (cm) 150-170 160-180 175-205
C (ft) 4.9–5.6 5.3-5.9 5.7–6.7

Download

catalogue sheet PDF - 1,8 MB
instructions of use PDF - 1,2 MB
technical parameters PDF - 0,6 MB
Activities at height such as climbing, via ferrata, caving, rappelling, ski-touring, rescue, work at height and exploration are dangerous activities, which may lead to severe injury or even death. This the following is essential before use:
careful reading and understanding of the instructions for useacquaintance with the possibilities and limitations of the productadequate apprenticeship in appropriate techniques and methods of useunderstanding and acceptance of the risk involved
In case of doubt or problem of understanding, contact SINGING ROCK.
