REACTOR 140 FLEX

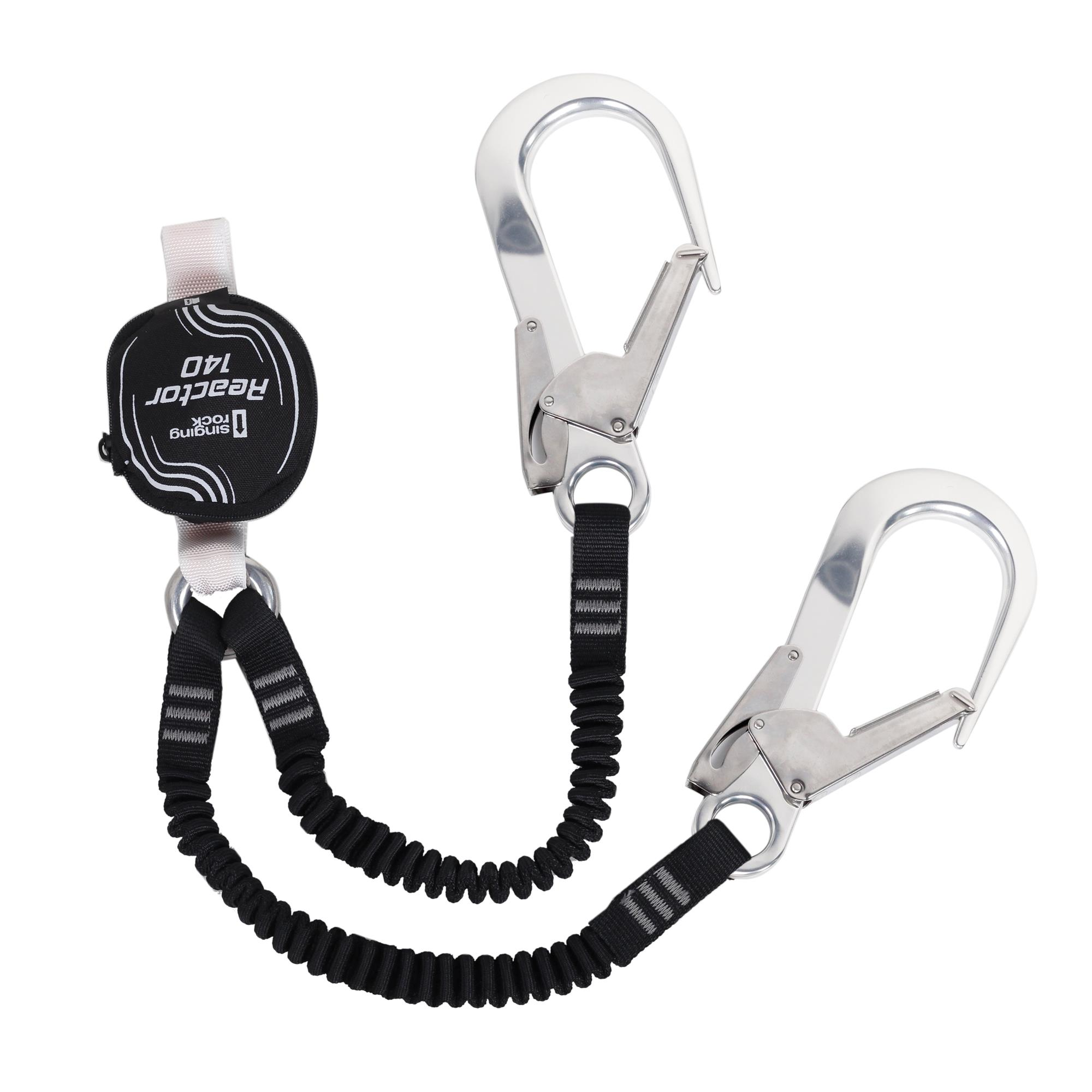

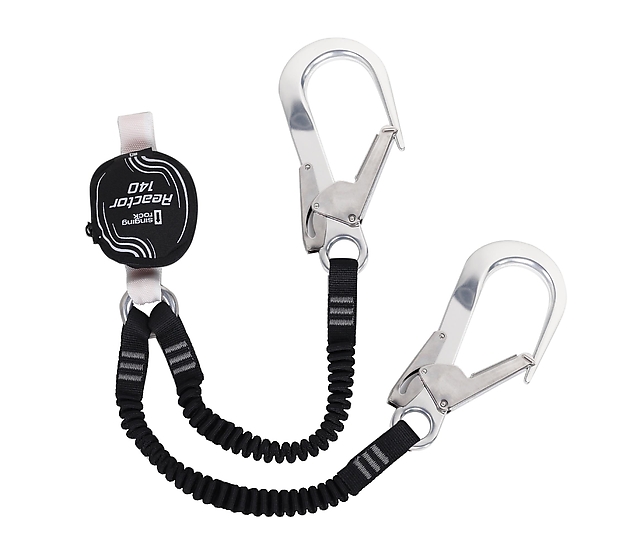

W4482X085 / REACTOR 140 FLEX Y 85 cm + 2x K353

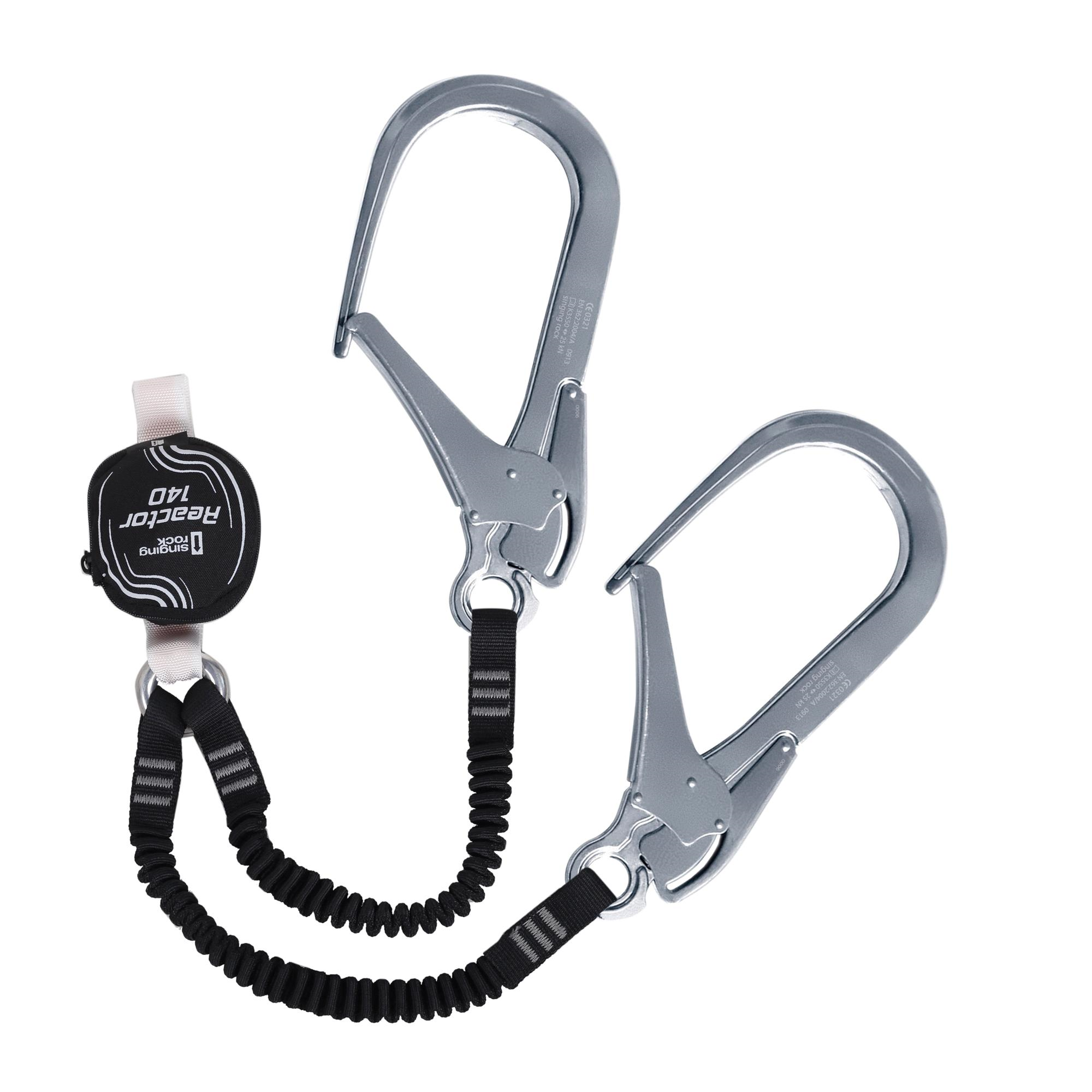

W4483X085 / REACTOR 140 FLEX Y 85 cm + 2x K355

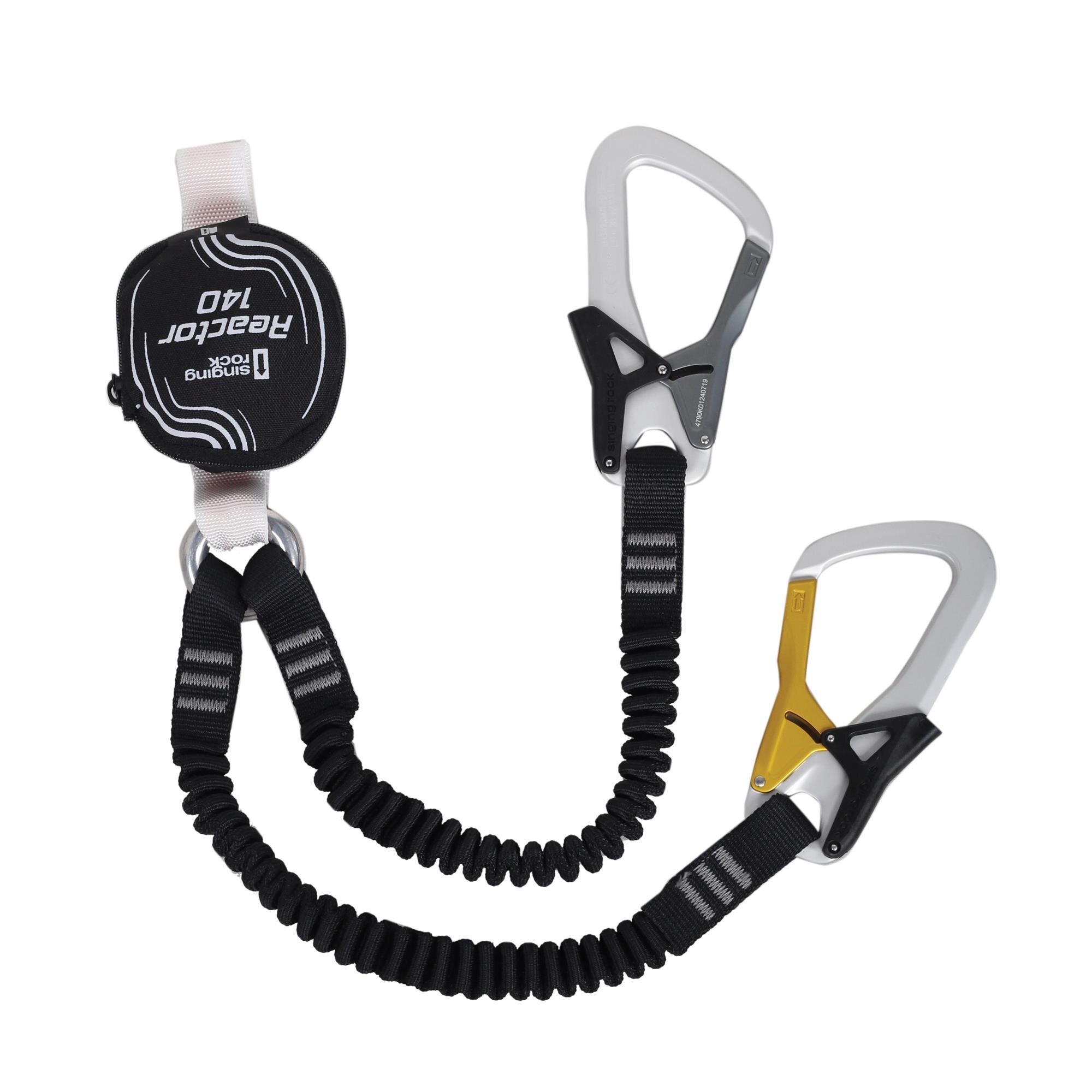

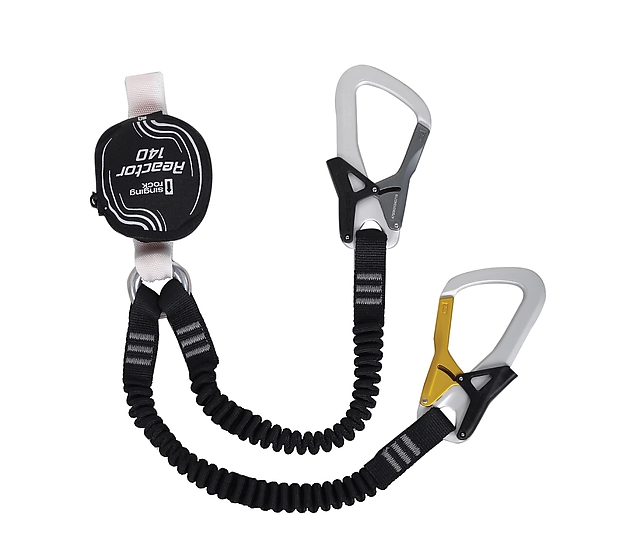

W4484X085 / REACTOR 140 FLEX Y 85 cm + 2x K0124

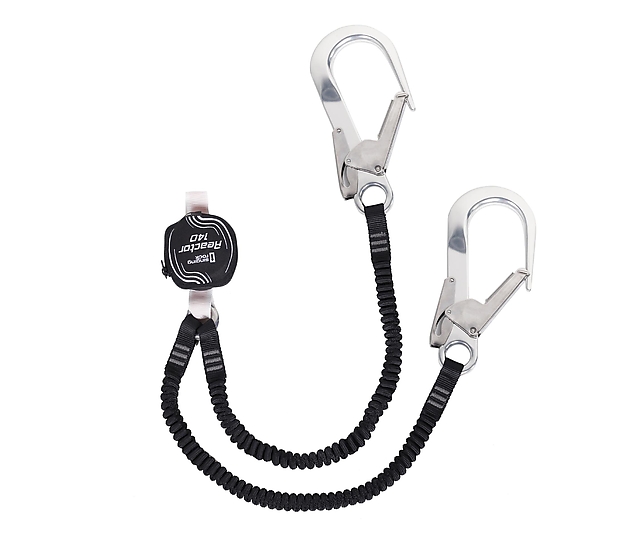

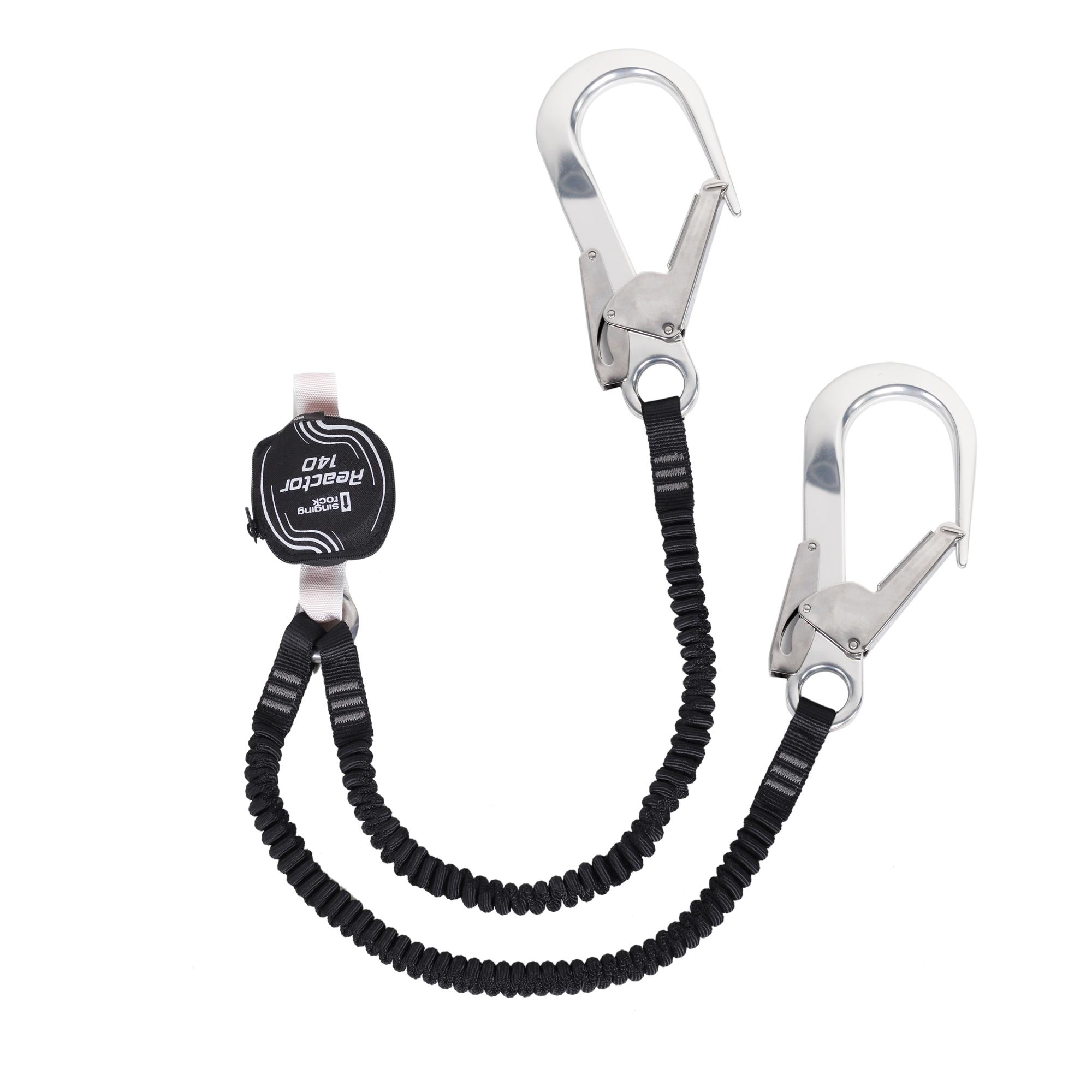

W4482X155 / REACTOR 140 FLEX Y 155 cm + 2x K353

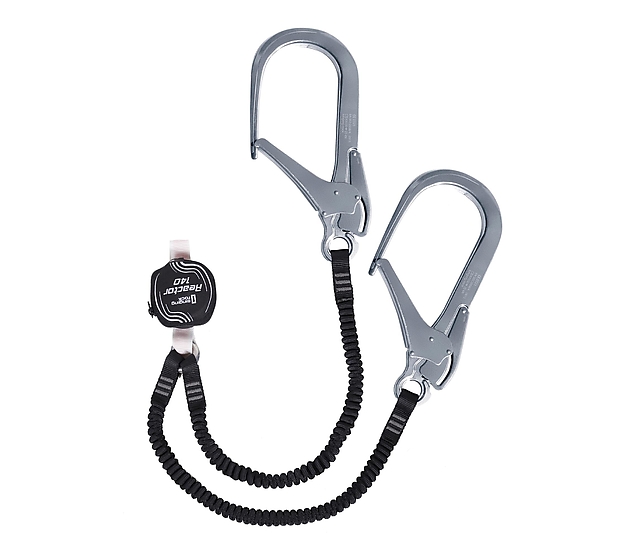

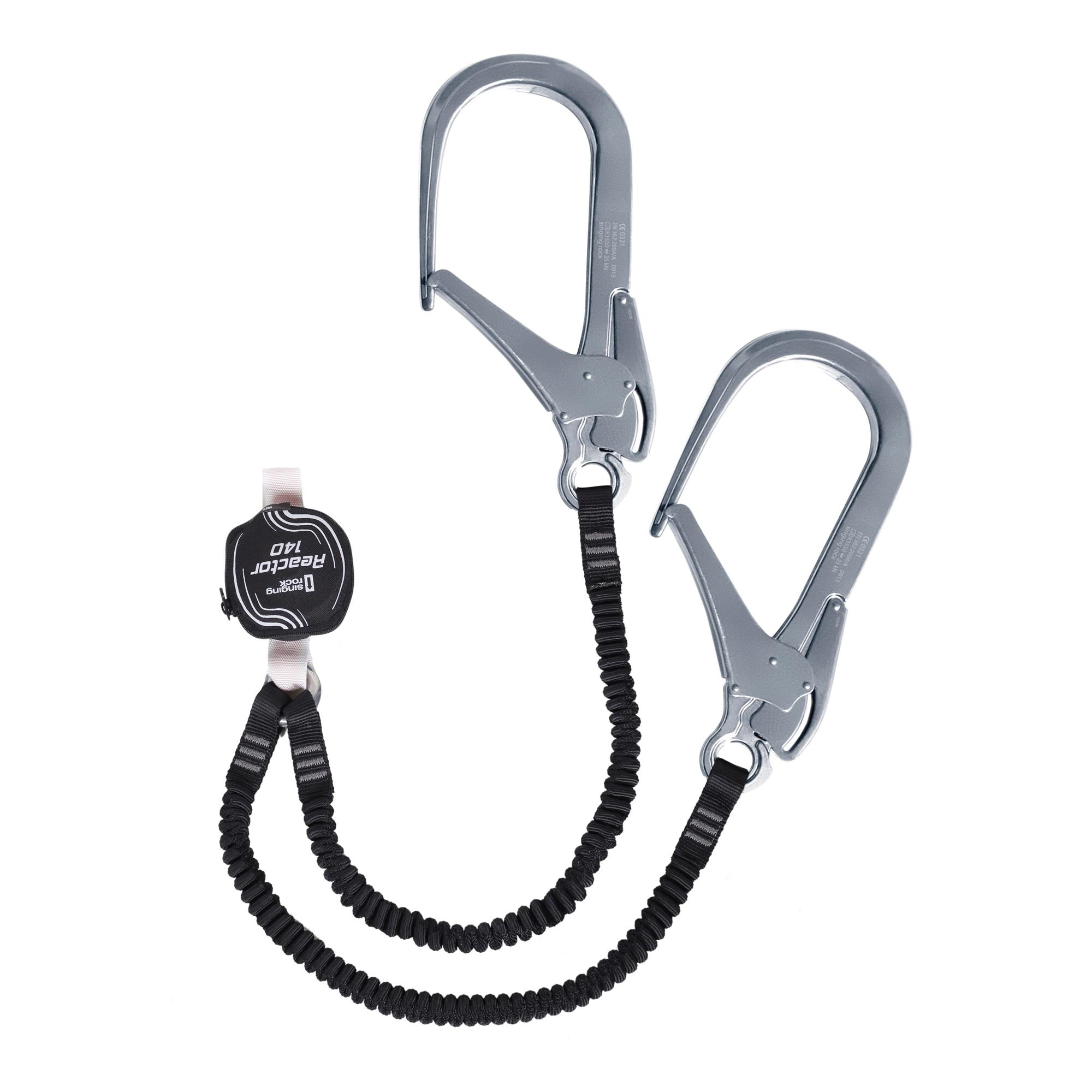

W4483X155 / REACTOR 140 Y FLEX 155 cm + 2x K355

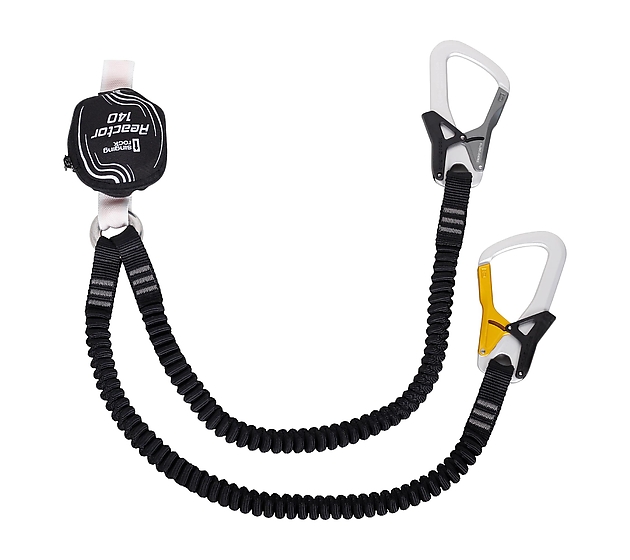

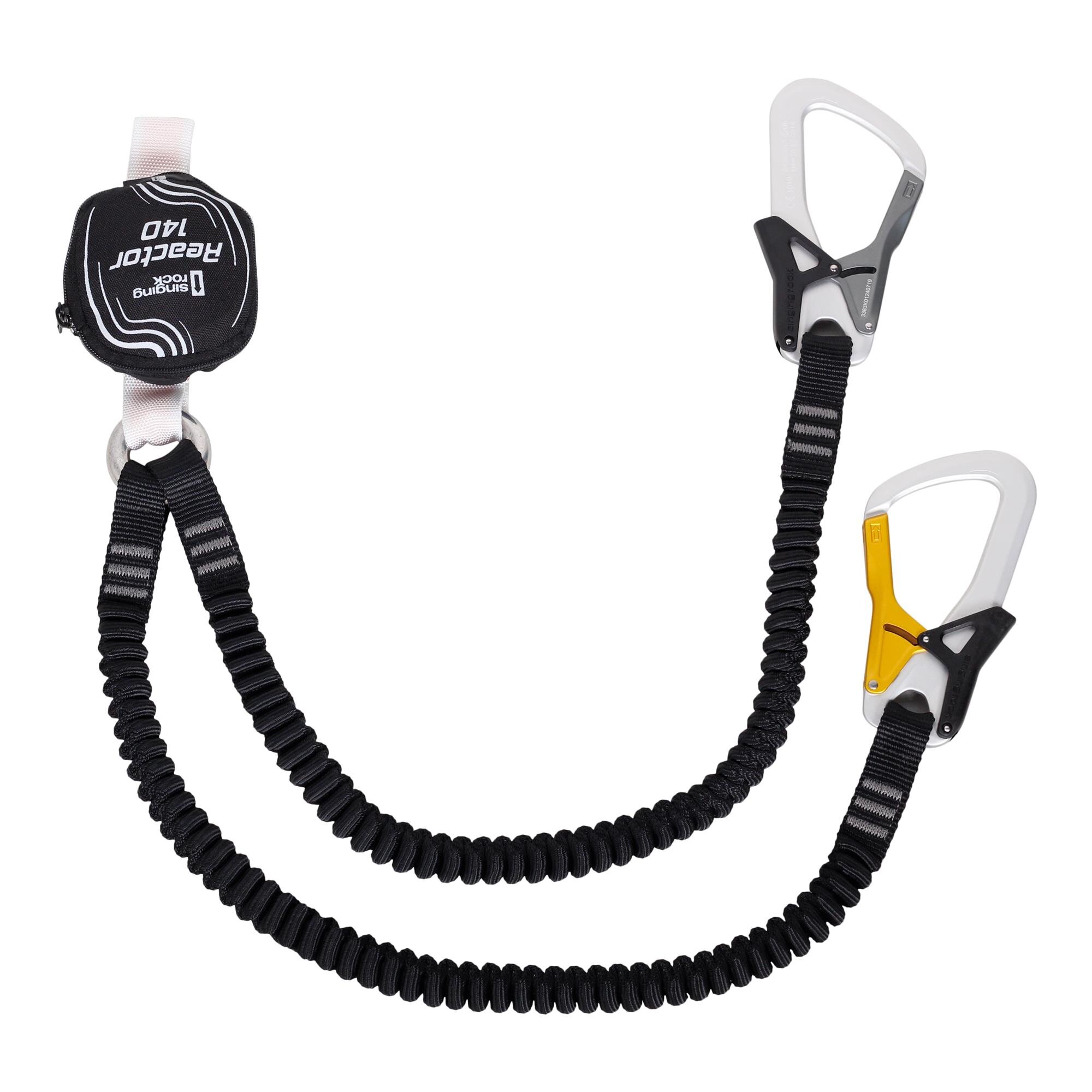

W4484X155 / REACTOR 140 Y FLEX 155 cm + 2x K0124

REACTOR 140 - breaking force and breaking length graph

REACTOR 140 FLEX / W44*
Shock absorber with elastic lanyards. Designed for users with a maximum weight of 140 kg (including equipment).

various variants consisting of three types of elastic lanyards and three types of connectors
ideal for workers on structures, ladders and pylons
low weight and practical shape do not restrict a user at work
designed to safely capture a person weighting 140 kg (including equipment)
elastic lanyards have been successfully tested for horizontal use and a resulting simulated fall over an edge (see the RFU 11.074 information in the catalogue sheet)
maximum active breaking length of the shock absorber is 175 cm
cover is made of black synthetic rubber and Cordura with PU coating
zipper around the perimeter of the cover for easy inspection of the energy absorber
intact orange indicator of energy absorber activation for easy fast check
orange indicator is threaded through the attaching loops and indicates an actual damage
any EN 362 certified connector can be sewn into the attachment loop
unique production number for better traceability and inspection

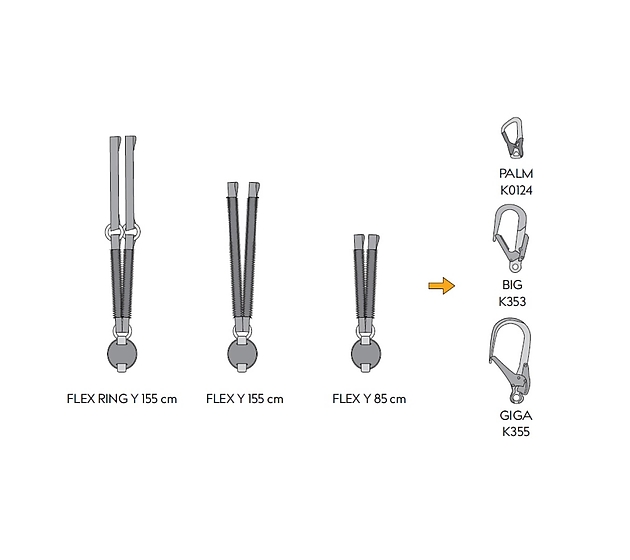

Variant overview:

Type	Code	Connectors	Length	Weight	RFU 11.074

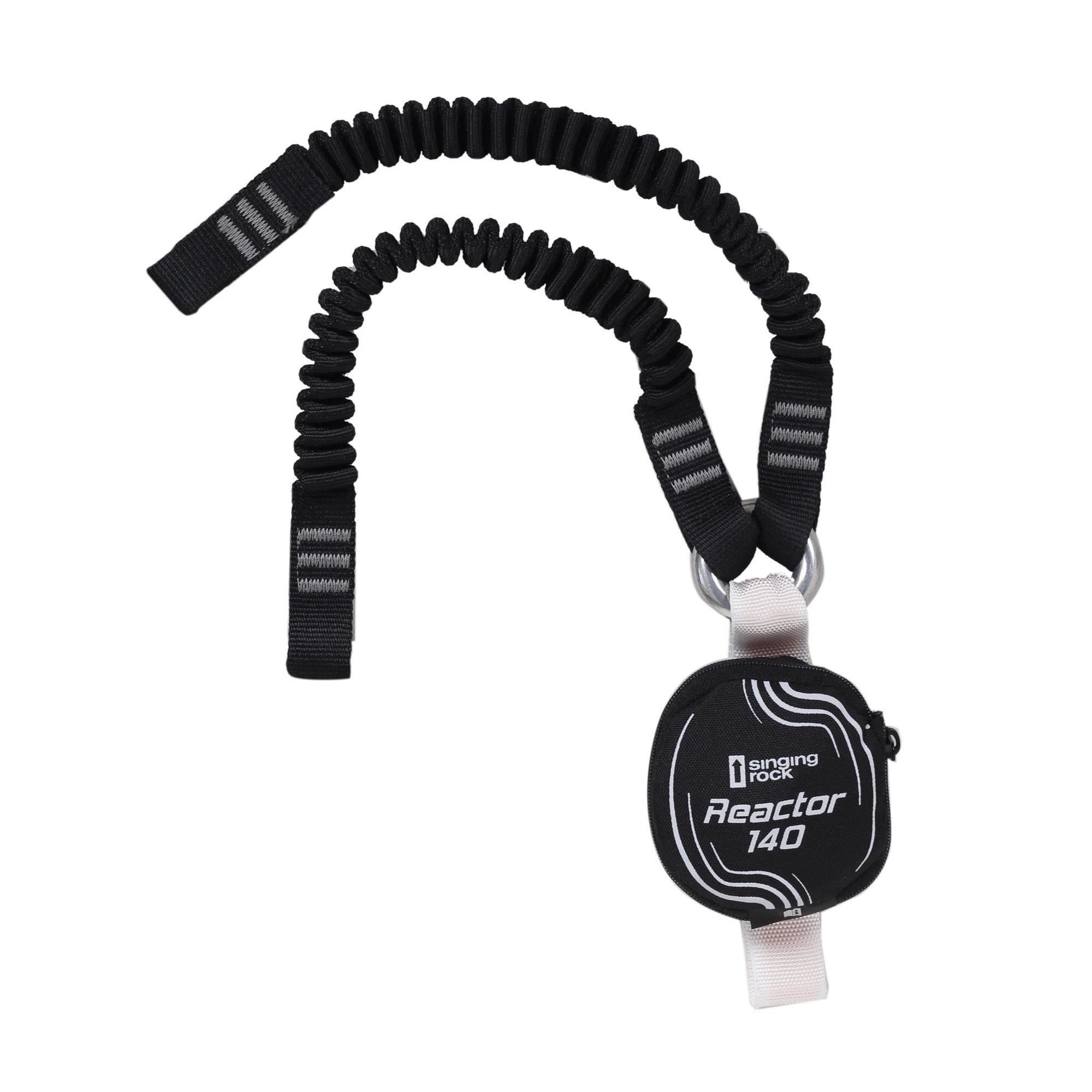

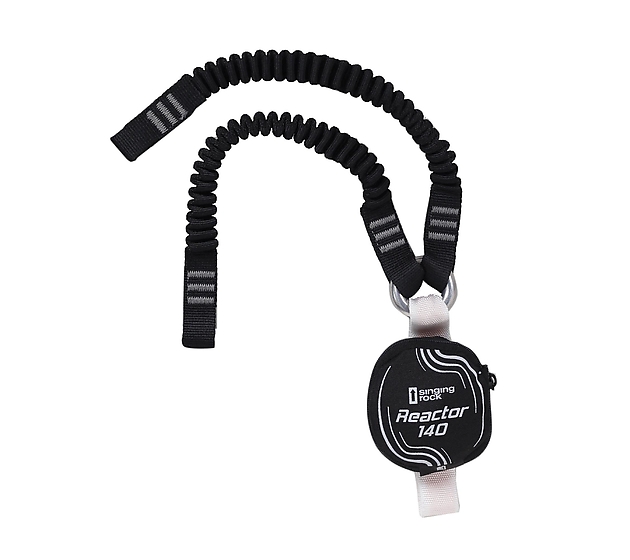

FLEX "Y" 85 cm	W4480X085	w/o	85 cm	330 g	✔
	W4482X085	2x K353	110 cm	1355 g	✔
	W4483X085	2x K355	120 cm	2255 g	✔
	W4484X085	2x K0124	100 cm	565 g	✔

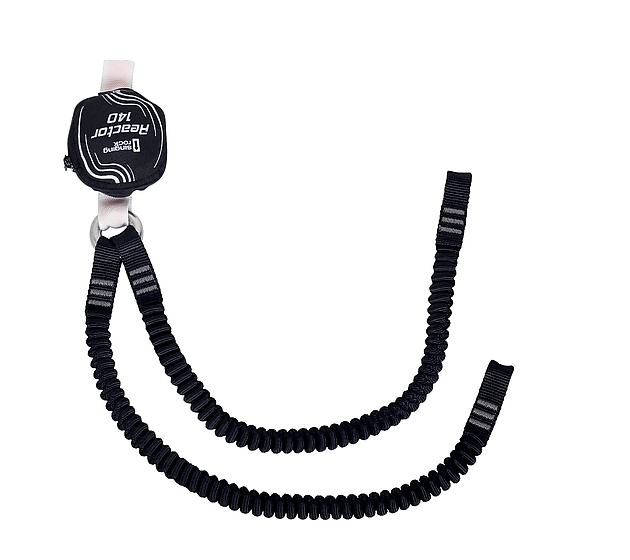

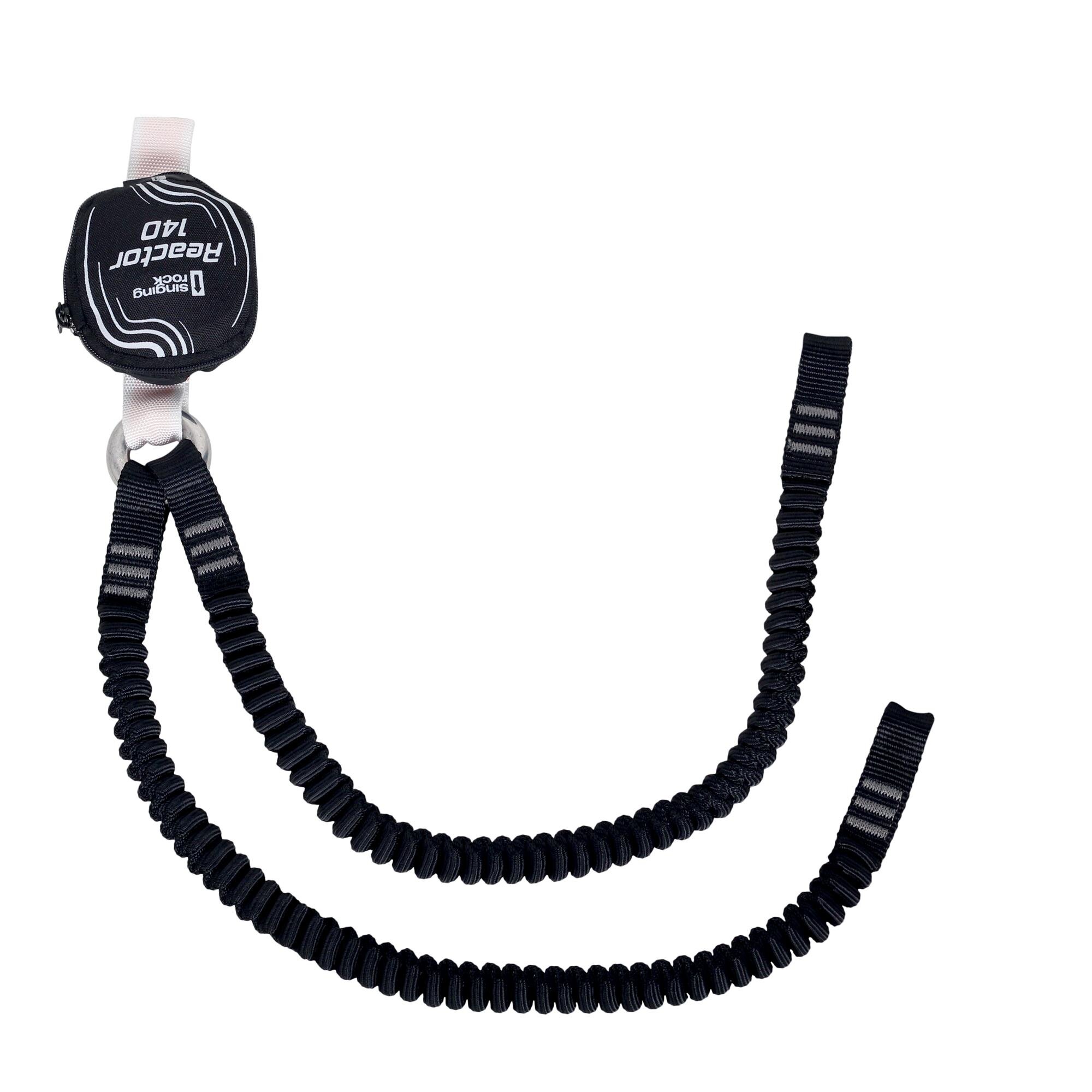

FLEX "Y" 155 cm	W4480X155	w/o	155 cm	430 g	✔
	W4482X155	2x K353	180 cm	1425 g	✔
	W4483X155	2x K355	190 cm	2350 g	✔
	W4484X155	2x K0124	170 cm	665 g	✔

Working load	140 kg • 309 lb

1019 EN 355 RFU 11.074

Video

Download

catalogue sheet PDF - 0,5 MB

instructions of use PDF - 1,0 MB

universal instructions of use PPE PDF - 0,9 MB
