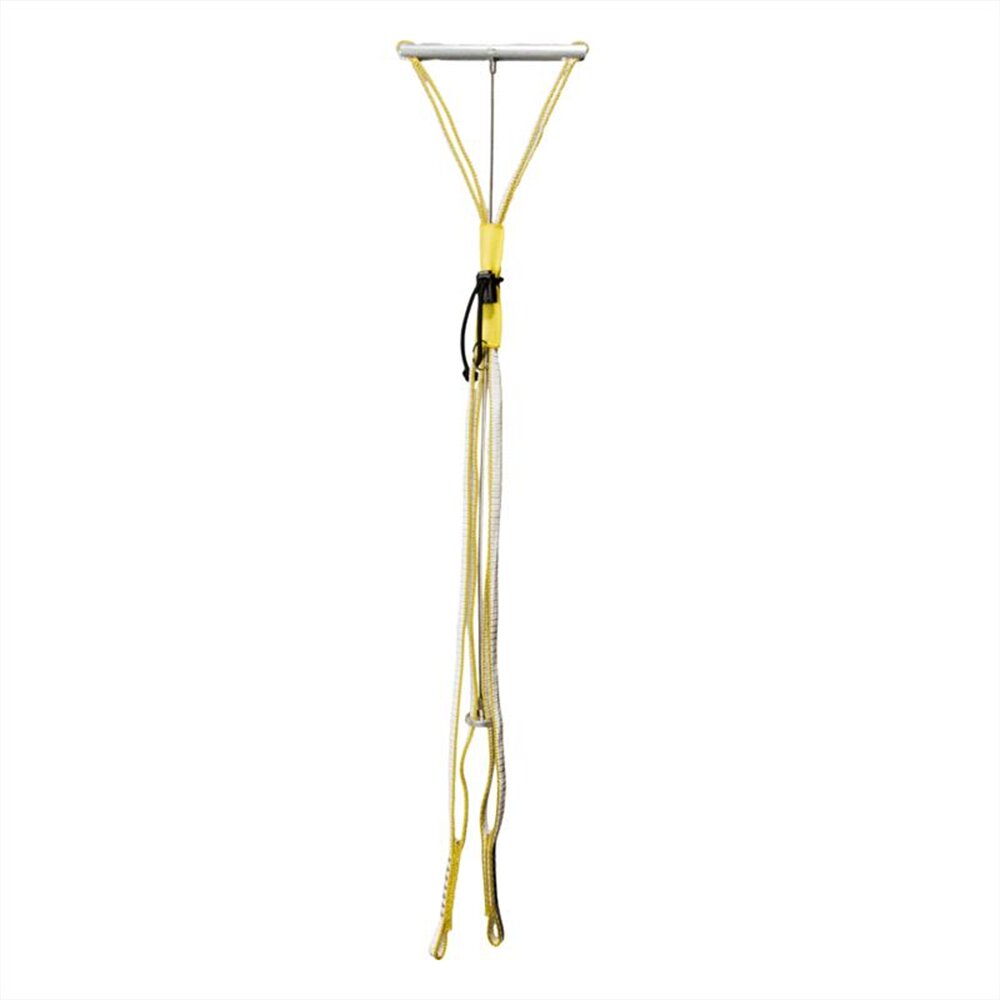

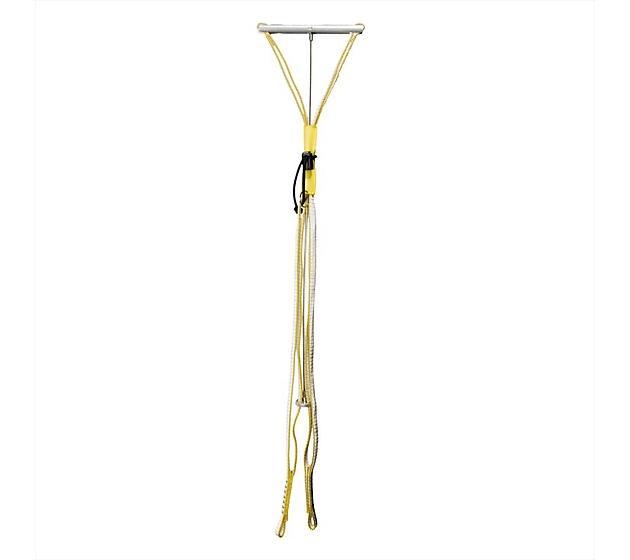

SNAKE BRACE / W201*

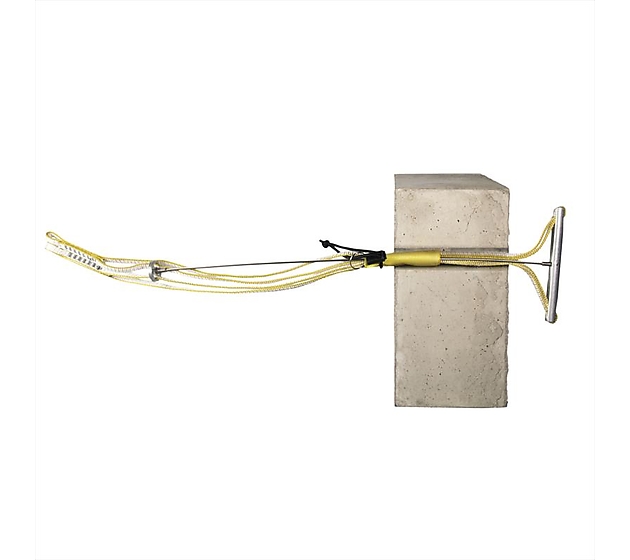

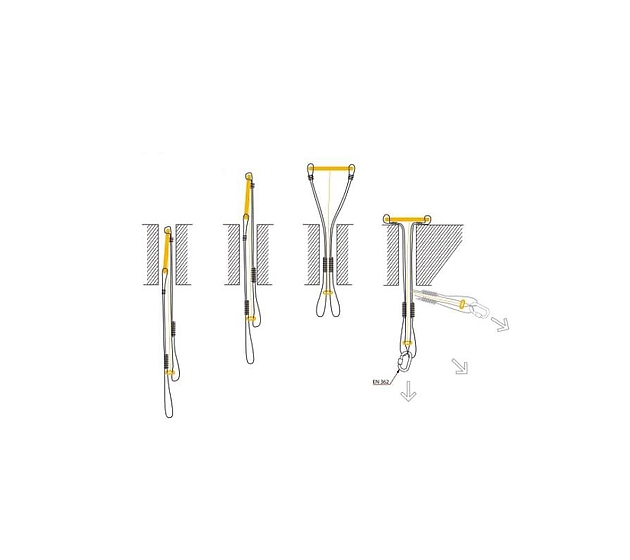

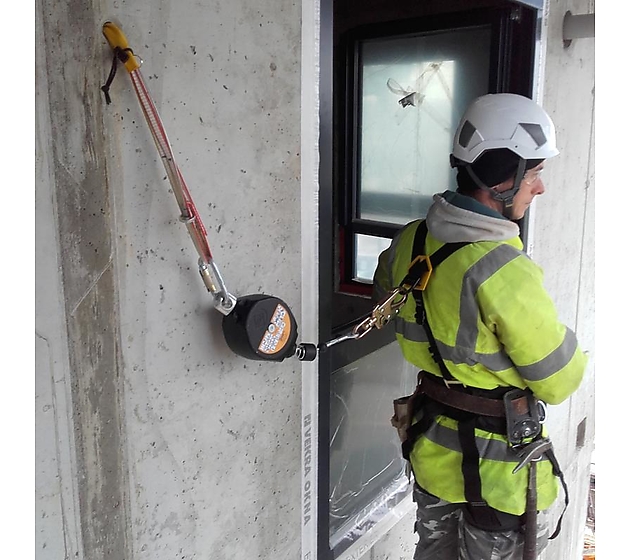

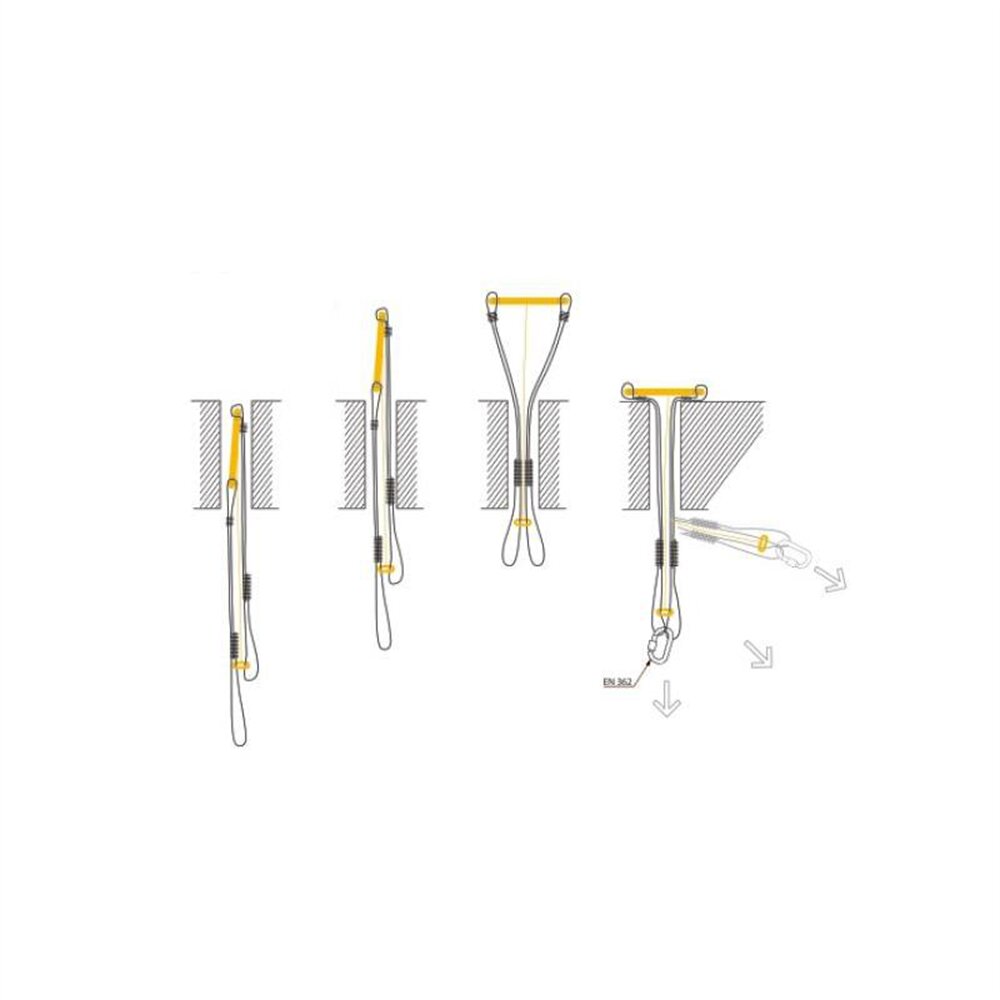

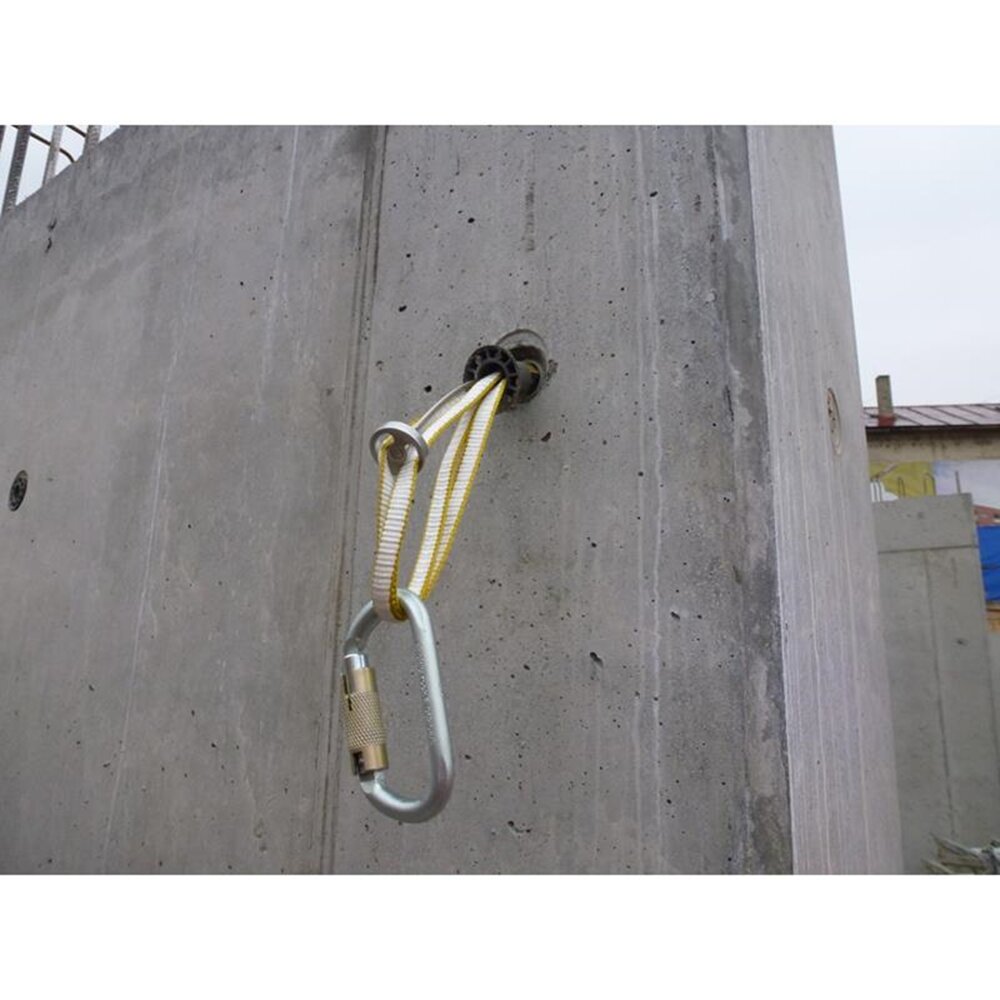

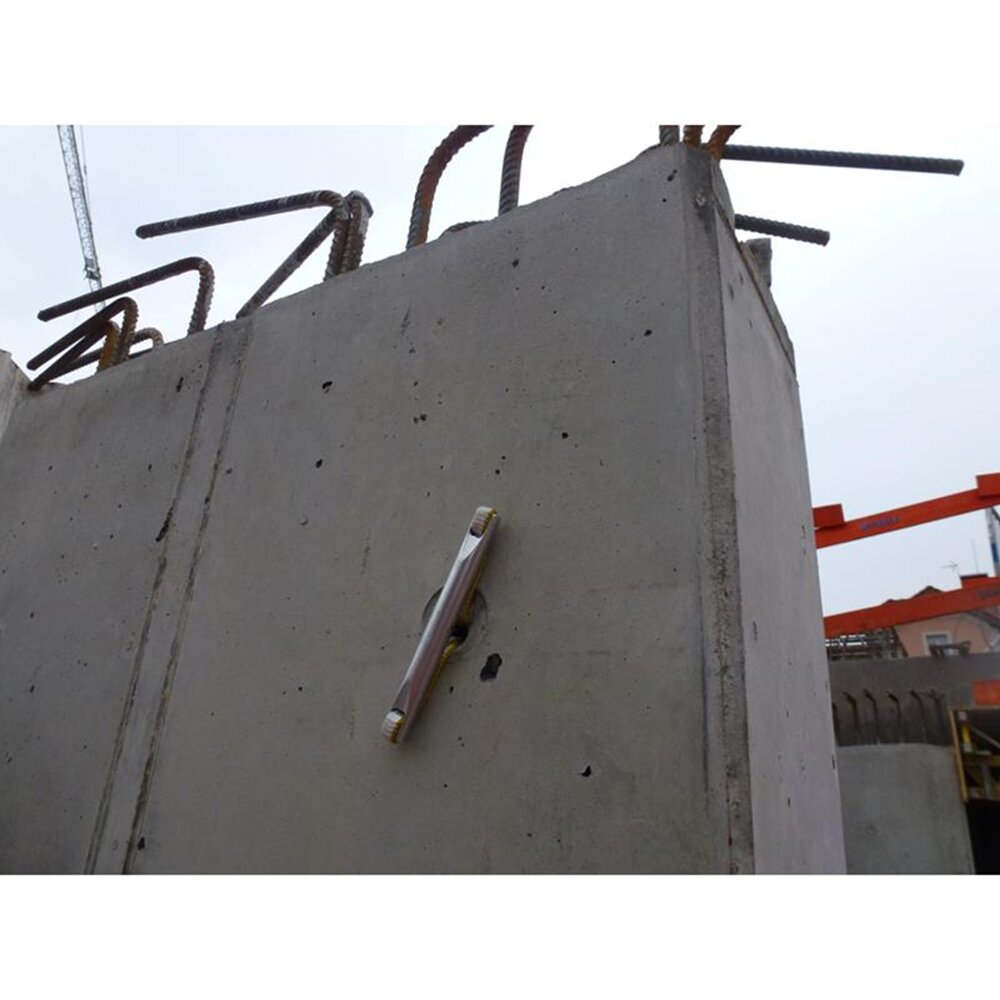

Anchor point for through holes, designed to function as a link between the structure and the fall arrest, work positioning, rope access or rescue systems.

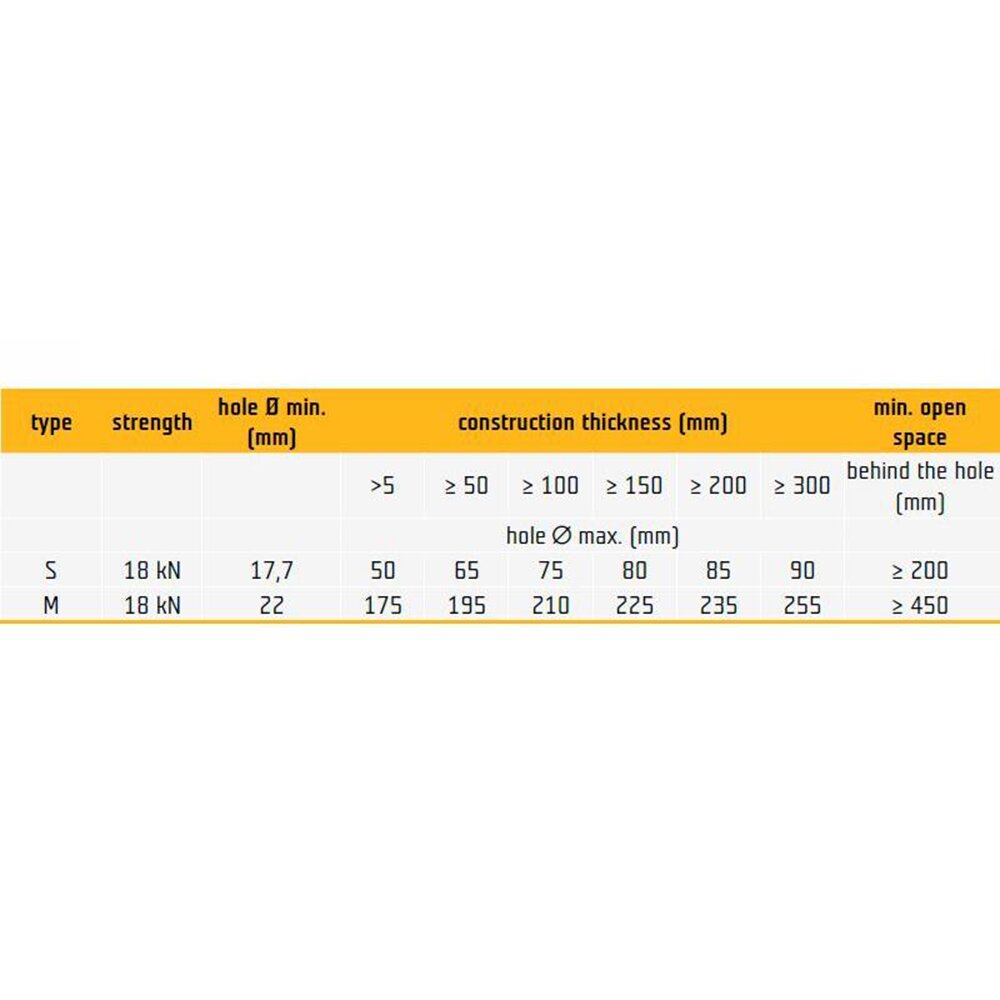

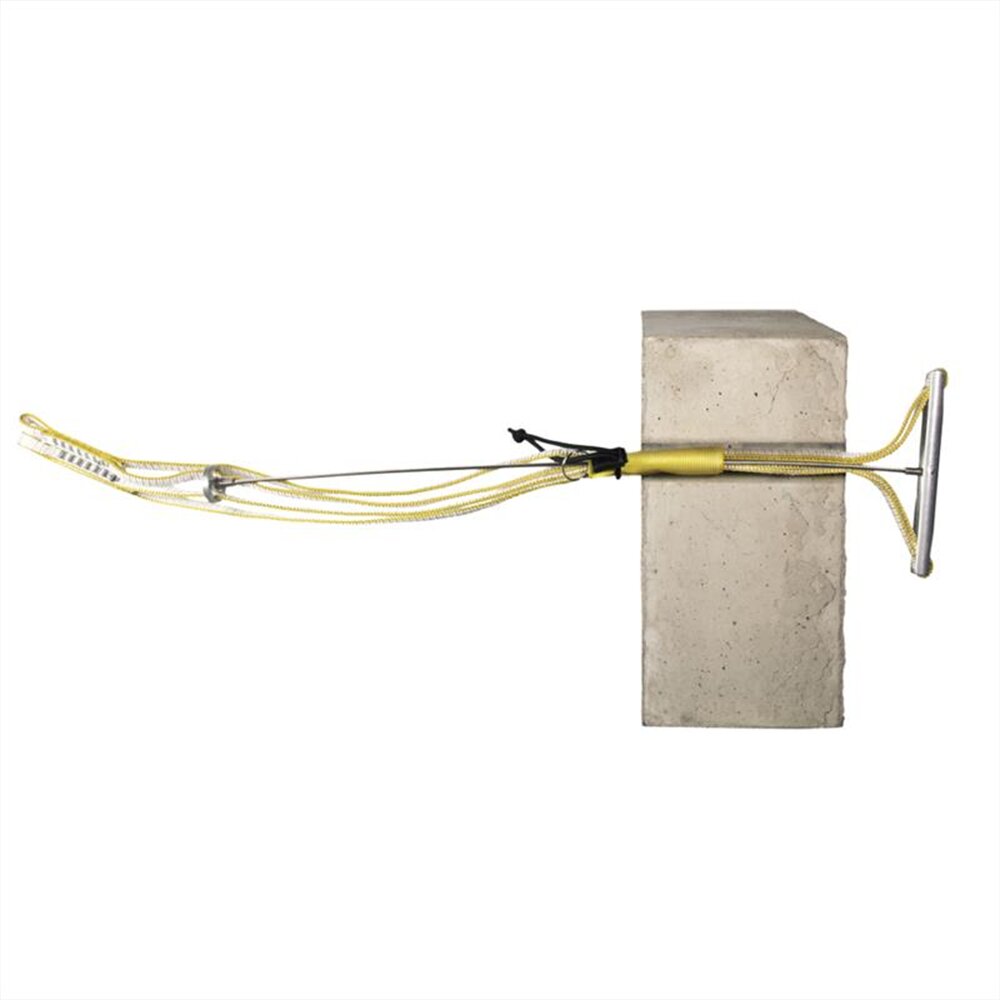

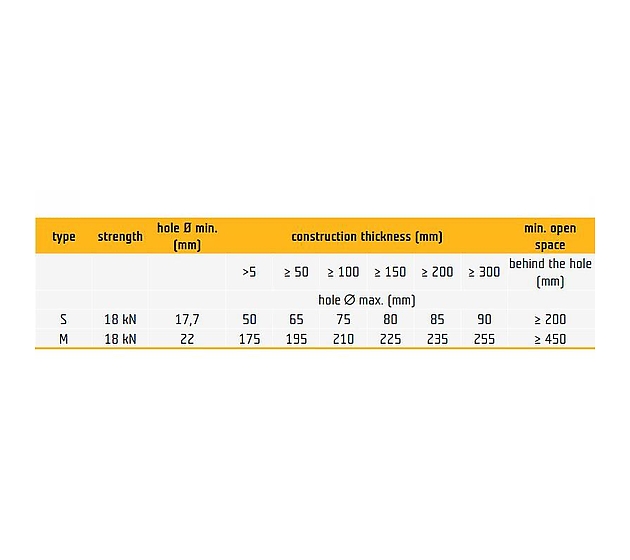

  • intended for through holes whose minimum and maximum diameter corresponds to the type of Snake Brace in relation to the actual thickness of the current structure
  • the opening need not be entirely regular but the minimum diameter must be flat; there must be a minimum space for installation behind the hole
  • intended for a single user
  • the maximum strength can be used only if the structure in which the anchor hole is located can withstand the load in all directions
  • the minimum strength of the construction should be designed according to EN 795 (if not in accordance with EN 795, the load bearing capacity may be reduced)
  • Snake Brace can be loaded in any direction only if also allowed by the construction in which is anchored
  • can be used only with compatible connectors with locking mechanisms according to EN 362

    Type

    Length

    Code

      S   300
      300 mm
    W2018Y030
      S   600
      600 mm
    W2018A060
      S   900
      900 mm
    W2018R090
      S 1200

    1200 mm

    W2018B120

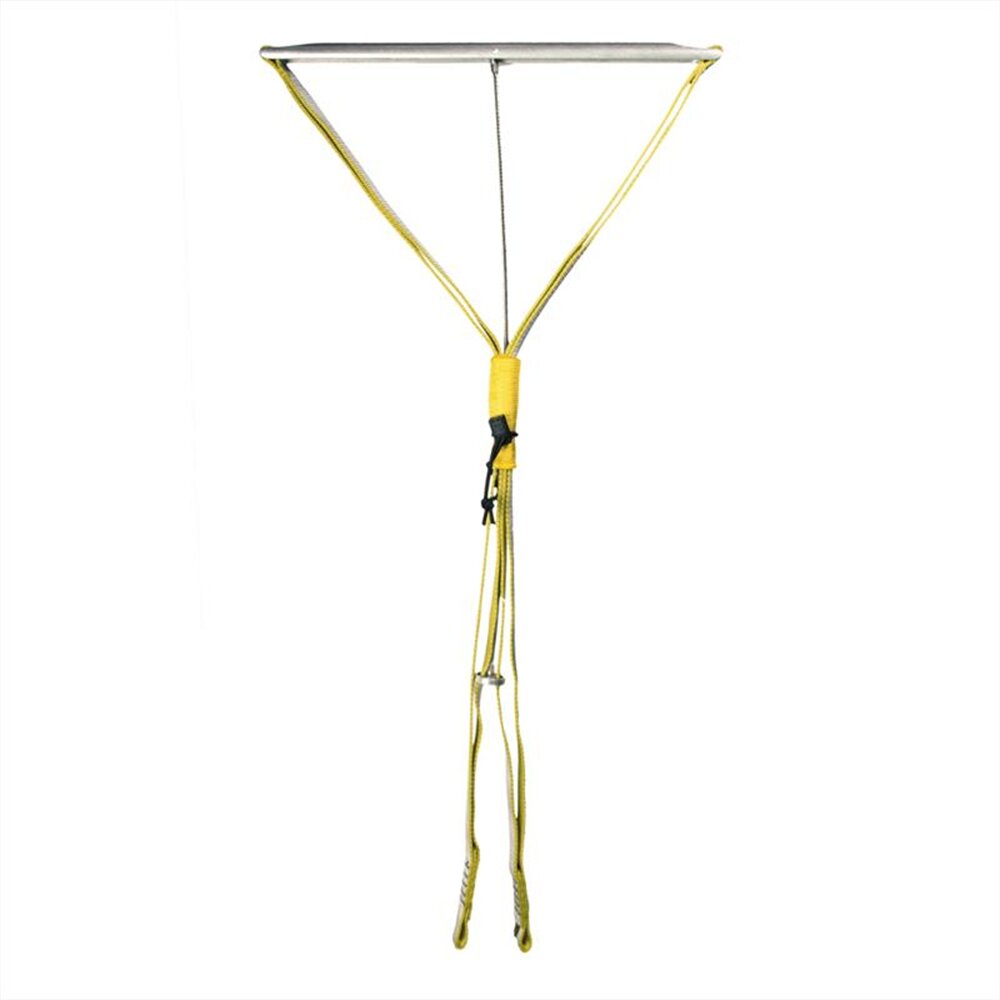

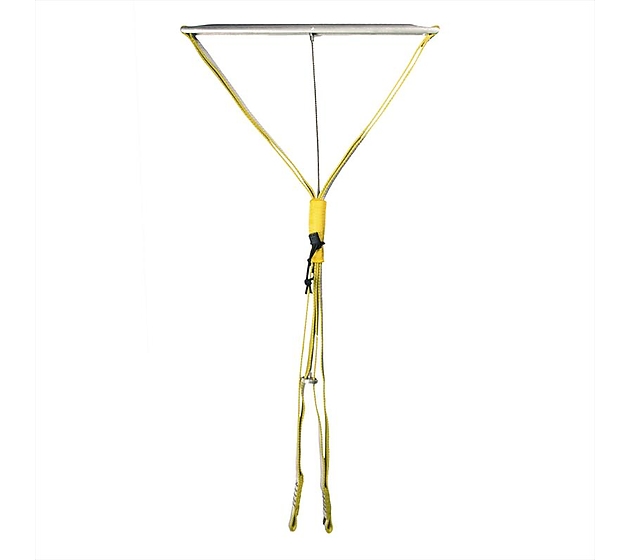

      M   300
      300 mm
    W2019Y030
      M   600
      600 mm
    W2019A060
      M   900
      900 mm
    W2019R090
      M 1200
    1200 mm

    W2019B120
WeightS 300 - 162 g (5.71 oz); M 300 - 395 g (13.93 oz)
MaterialS - dyneema, alloy, steel; M - PAD, alloy, steel
Strength18 kN
Length30, 60, 90, 120 cm
ce 1019, EN 795B

Video

SNAKE BRACE in action

Download

instructions of use PDF - 0,7 MB
Activities at height such as climbing, via ferrata, caving, rappelling, ski-touring, rescue, work at height and exploration are dangerous activities, which may lead to severe injury or even death. This the following is essential before use:
careful reading and understanding of the instructions for useacquaintance with the possibilities and limitations of the productadequate apprenticeship in appropriate techniques and methods of useunderstanding and acceptance of the risk involved
In case of doubt or problem of understanding, contact SINGING ROCK.
