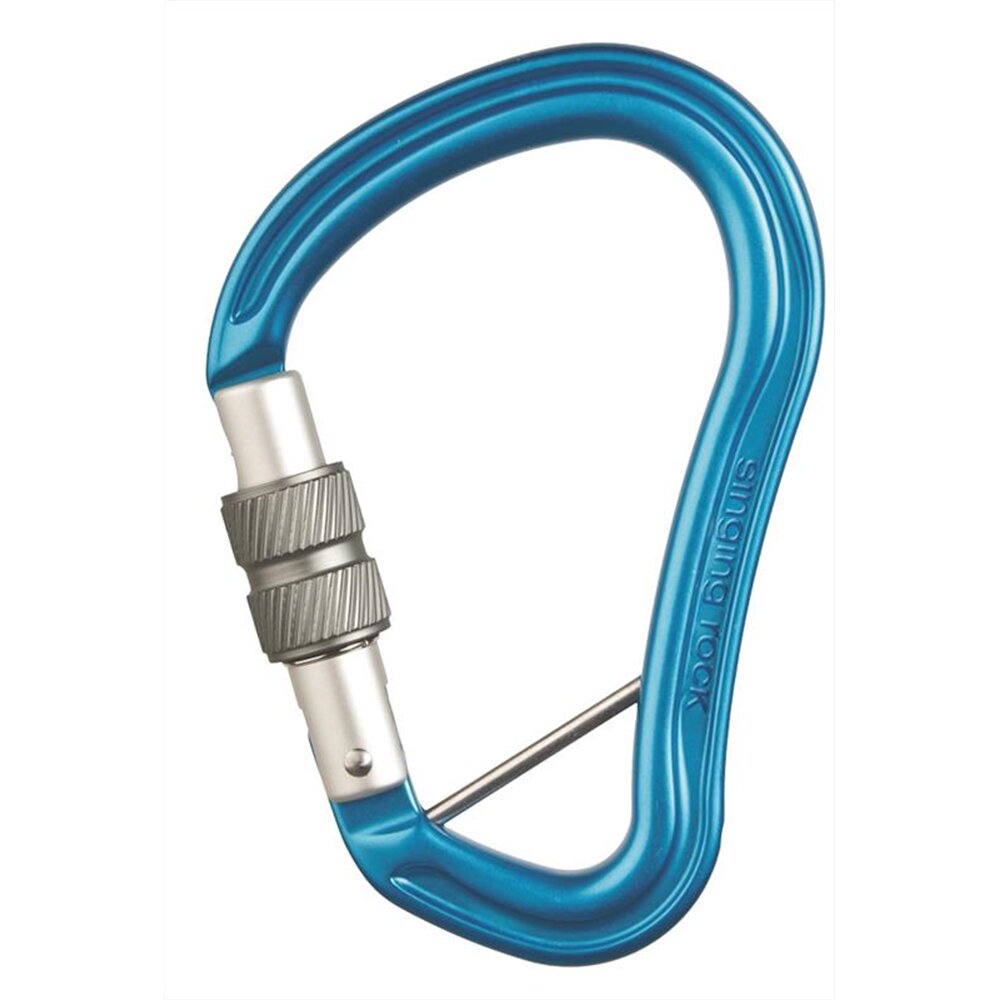

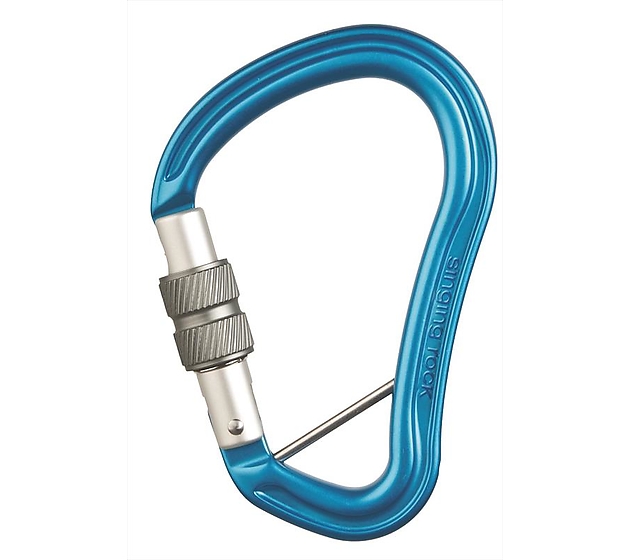

HECTOR BC / screw

HECTOR BC screw / K0114EC00
Large versatile pear-shaped HMS carabiner with screw gate and removable captive bar designed especially as a fixed connector in anchor systems or lanyards

  • due to high strength and large gate opening it is mainly used as a central carabiner when anchoring
  • pear-shaped basket facilitates belaying with the Münter hitch or other belay devices
  • angled snag free Keylock nose for smooth clipping and unclipping maneuvers
  • rough notches on the screw locking sleeve for easy manipulation even with gloves
  • each carabiner is individually tested for a strength of 10 kN
  • large rope bearing area for better rope glide and reduced wear on the carabiner
  • gate opening and basket area are large enough to easily accommodate a big anchor point or more slings
  • hot-forged I-beam construction makes the carabiner extremely strong, stiff and light
  • excellent ergonomic provides perfect handling with the carabiner
  • anodized finishing increases corrosion resistance

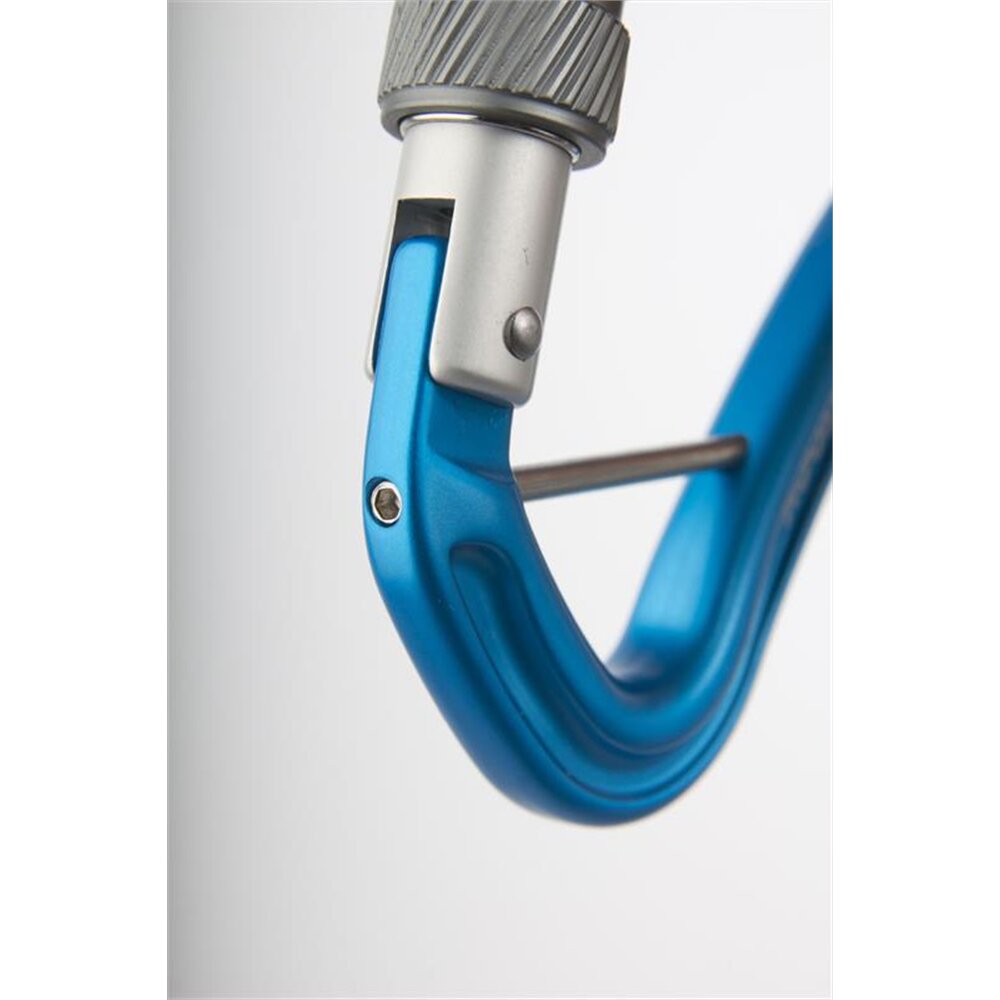

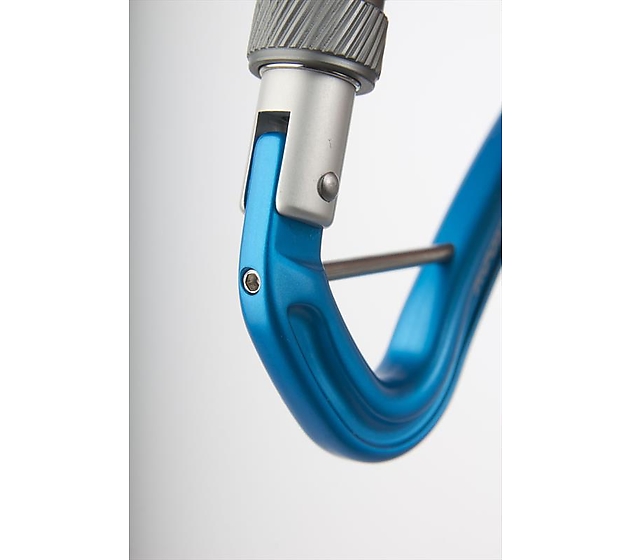

  • captive bar keeps the carabiner in its proper orientation
  • bar is easily removable with an Allen key no. 3
  • this carabiner keeps your gear well-arranged and minimizes the chance of cross loading

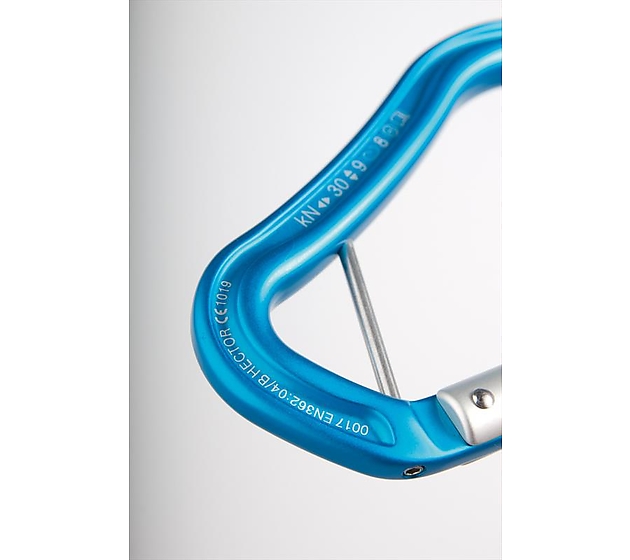

  • each carabiner has an unique production number for better traceability and inspection

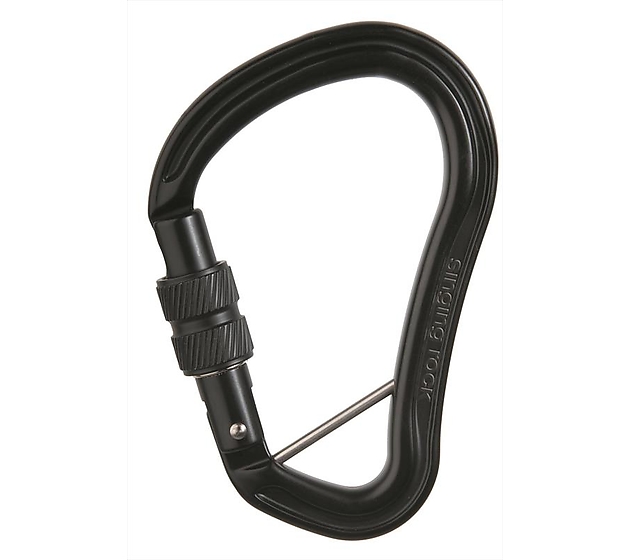

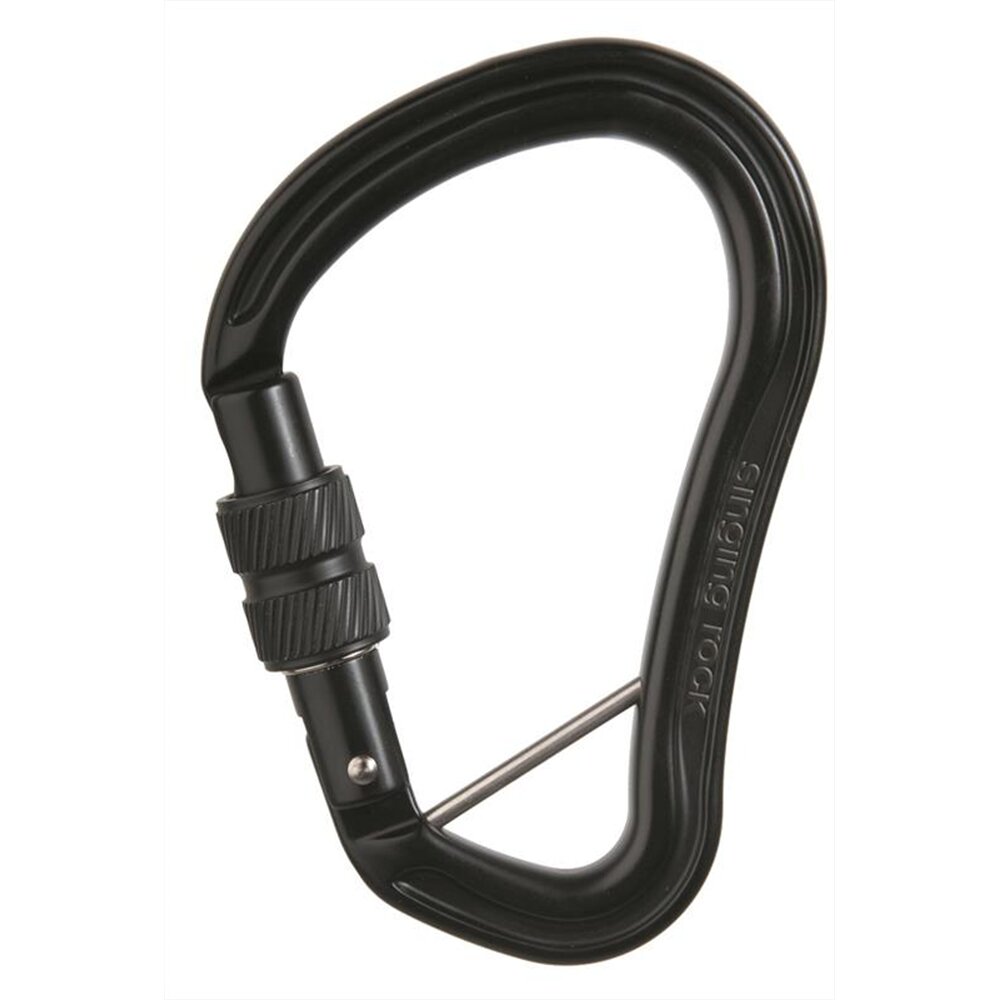

  • also available in black matt color (K0114BC00)

Color: blue matt
Weight: 85 g (3 oz)
Material: light alloy
Strength major axis: 30 kN
Strength minor axis: 9 kN
Strength open gate: 8 kN
Gate opening (d): 26 mm


high resolution picture instructions of use technical parameters

Related video

HECTOR carabiners

1019, EN 12275, EN 362
