EVAQ II

W1520X / EVAQ ROPE II - rope for EvaQ II devices, max. length 250 m

W9002XX17 / PROTECTIVE CASE 17 - volume 17 litres</br>W9002XX46 / PROTECTIVE CASE 46 - volume 46 litres

EVAQ CASE WITH SEALING <br />W1522S* - volume 17 litres, with EvaQ II device with rope up to 50 m <br />W1522L* - volume 46 litres, with EvaQ II device with rope 50-120 m

EVAQ CASE WITH SEALING <br />W1524S* - volume 17 litres, with EvaQ device with rope up to 50 m <br />W1524L* - volume 46 litres, with EvaQ II device with rope 50-120 m

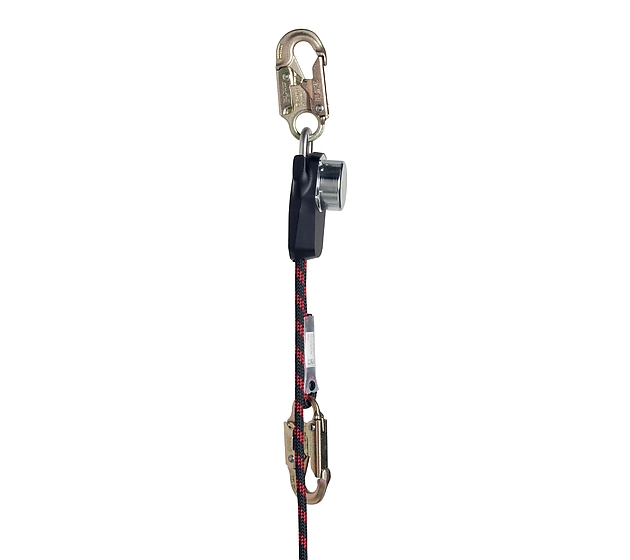

EVAQ II / W1523X000
A simple abseiling device designed for rescuing individuals from heights, especially well-suited for the efficient and safe rescue of multiple endangered persons.

efficient rescue of several people using the shuttle system
designed for a working load of 141 kg (1 person)
automatic and redundant brake system
brake drums are made of steel for high resistance
attachment point is equipped with a steel double trigger automatic locking connector with a gate opening of 21 mm
static polyamide kernmantle rope can be up to 250 m long
both ends of the rope are equipped with a stitched eye and a steel double trigger automatic locking connector with a gate opening of 21 mm
for a storage and transport we recommend a shock and waterproof plastic PROTECTIVE CASE in two sizes with a volume of 17 and 46 litres or a storage RESCUE BAG with a volume of 30 litres
when the device is stored in a sealed protective case an annual inspection is easier without the necessity of dismantling this device. It may be carried out by a competent person.

Weight	1.1 kg (39 oz) + rope
Working load	30 - 141 kg (66 - 311 lb) designed for 1 person
Length	descent height max. 250 m (820 ft)
Descending speed	<2m/sec
Temperature range	-40 °C to +65 °C

1019 EN 341:2011-1B ANSI Z359.4:2013

Video

Download

catalogue sheet PDF - 0,4 MB

instructions of use PDF - 0,4 MB
