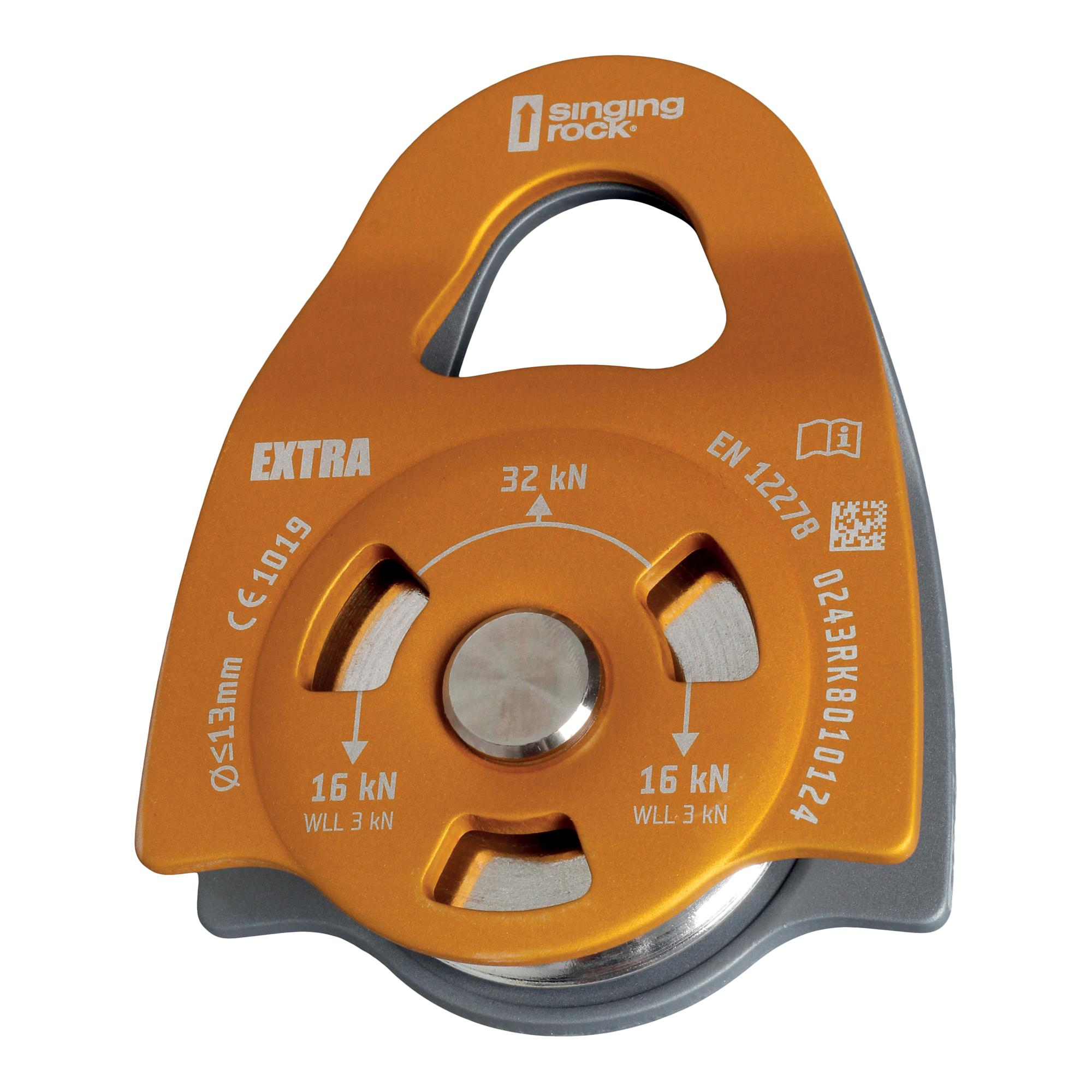

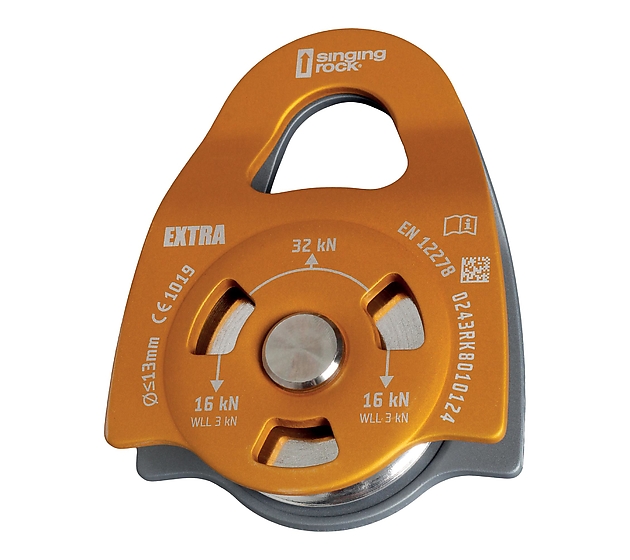

PULLEY EXTRA

PULLEY EXTRA / RK801EE00
Large pulley for those who need great hauling efficiency, durability and light weight

  • durable and lightweight single pulley for industrial use and hauling systems
  • for use with static and dynamic textile ropes
  • sealed ball bearing and large diameter of the sheave provide great efficiency 94%
  • designed and optimized for use with a Prusik friction knot or any clamps
  • top attachment point accepts up to three carabiners
  • formed side plates provides protection of rope against contact with a surrounding
  • fixed-by-forging sheave and anti dust cover of ball bearing provides great lifespan
  • side plate holes enable cleaning of the ball-bearing surrounding
  • unique production number marking

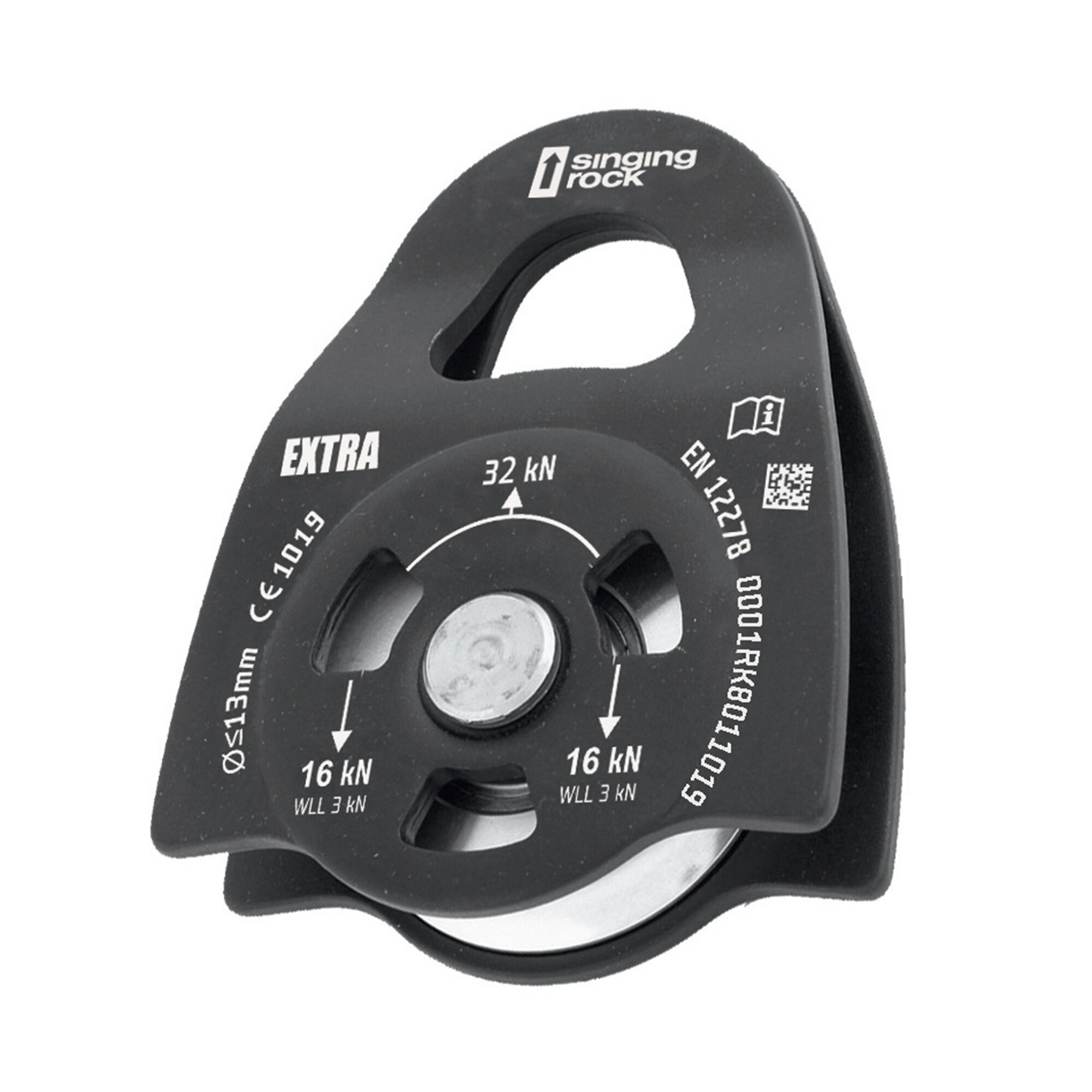

  • available also in black color (RK801BB00)


Color: orange
Weight: 257 g (9.1 oz)
Material: sheave and side plates - aluminum alloy, bearing - steel,
axle - stainless steel
Strength: 32 kN
Max. diameter of rope: 13 mm
Bearing: sealed ball
Working load: 2 x 3 kN

Download

high resolution picture instructions of use

1019, EN 12278
