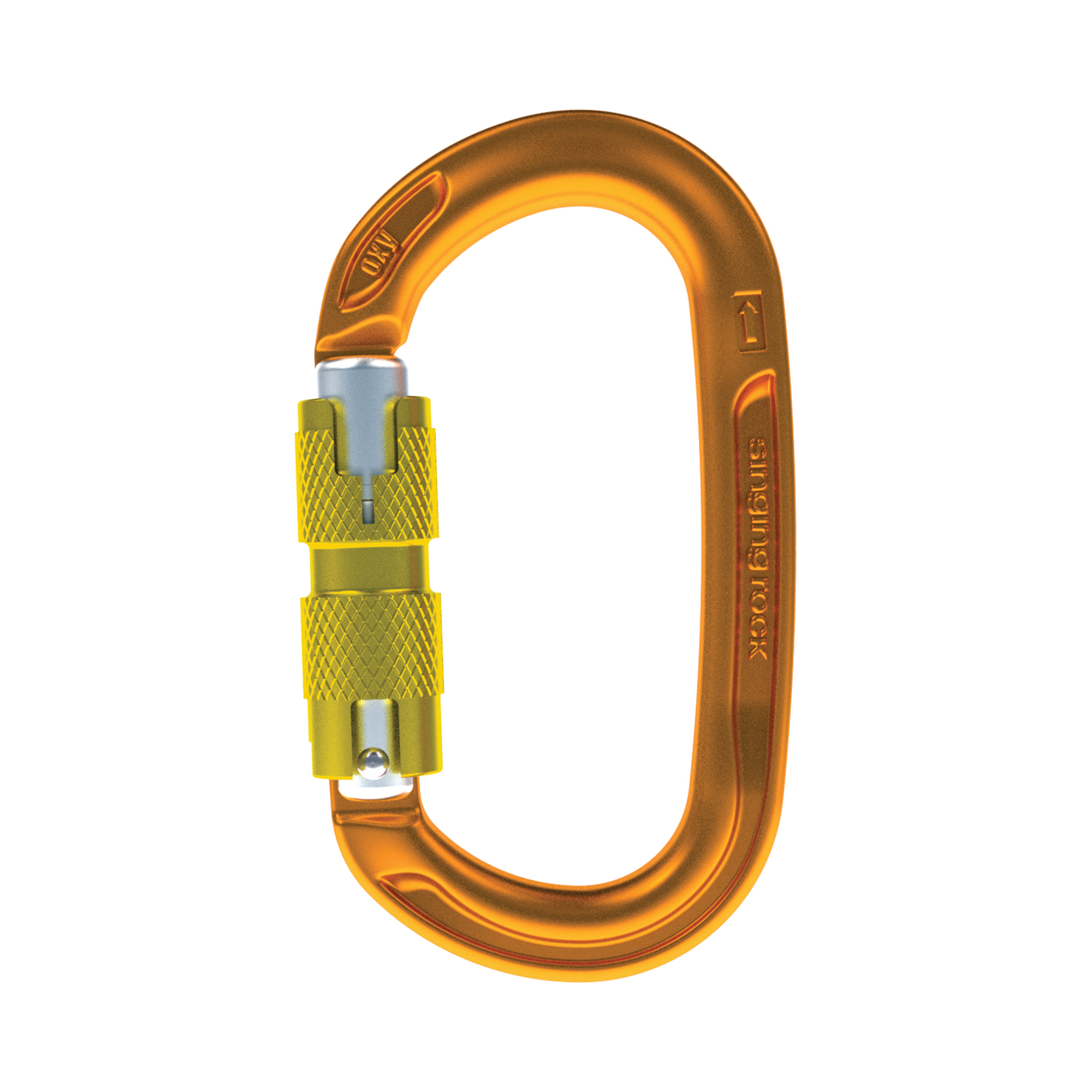

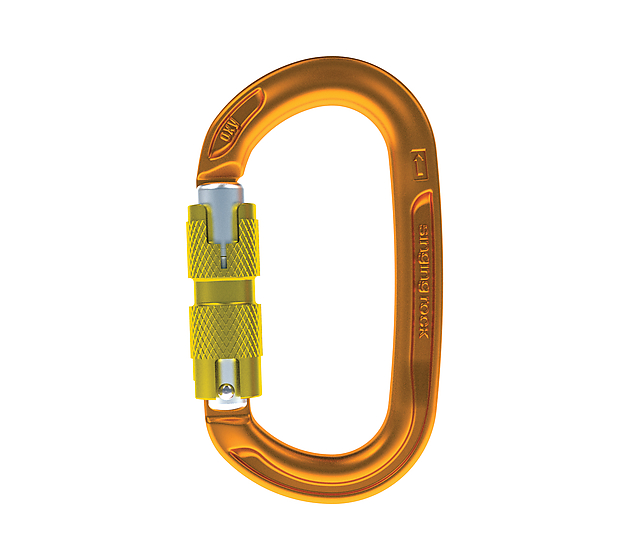

OXY TWL / K0122EE06 - gold

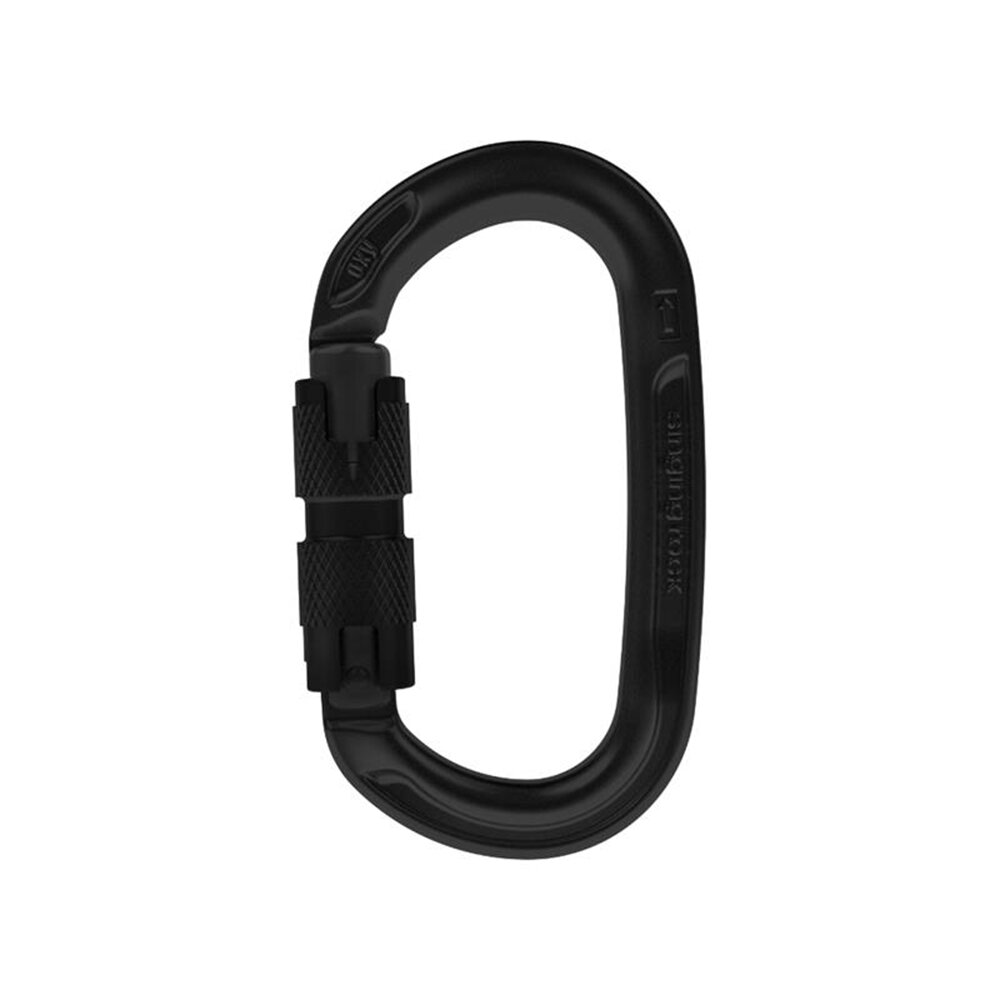

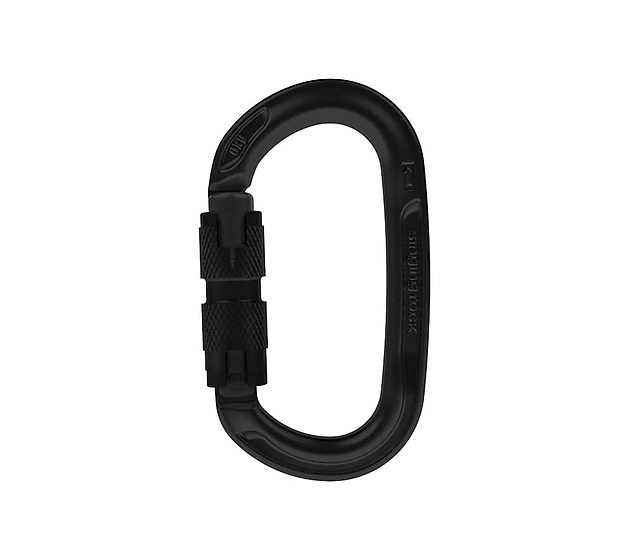

OXY TWL / K0122BB06 - black

Hot-forged light alloy oval carabiner designed to be used especially with pulleys, ascenders and descenders.

  • twist gate lock
  • rough notches on the locking sleeve for easy manipulation
  • angled snag free Keylock nose for smooth clipping and unclipping
  • hot-forged I-beam construction makes the carabiner extremely strong, stiff and light
  • almost oval shape makes the carabiner easy to turn around in device´s attachment points, anchors or slings
  • thanks to the oval shape, pulleys attached are loaded symmetrically
  • large rope bearing area for better rope glide and reduced wear of the carabiner
  • each carabiner is individually tested for a strength of 10 kN
  • unique production number

  • available also with a removable captive bar
Colorgold, black
Weight81 g • 2.86 oz
Materiallight alloy (anodized)
Strength major axis26 kN
Strength minor axis8 kN
Strength open gate7 kN
Gate opening (d)21 mm
EN 362 EN 12275 ce 1019

Download

catalogue sheet PDF - 0,3 MB
instructions of use PDF - 0,9 MB
technical parameters PDF - 2,3 MB
Activities at height such as climbing, via ferrata, caving, rappelling, ski-touring, rescue, work at height and exploration are dangerous activities, which may lead to severe injury or even death. This the following is essential before use:
careful reading and understanding of the instructions for useacquaintance with the possibilities and limitations of the productadequate apprenticeship in appropriate techniques and methods of useunderstanding and acceptance of the risk involved
In case of doubt or problem of understanding, contact SINGING ROCK.
