DOUBLE STOP PLUS

DOUBLE STOP PLUS / K031DSD00

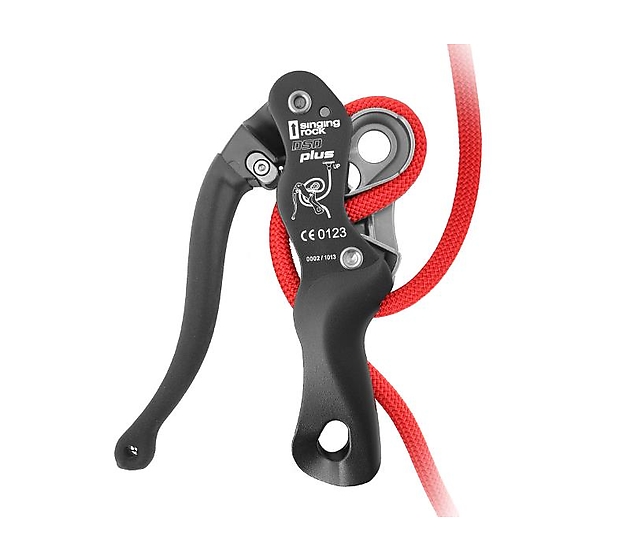

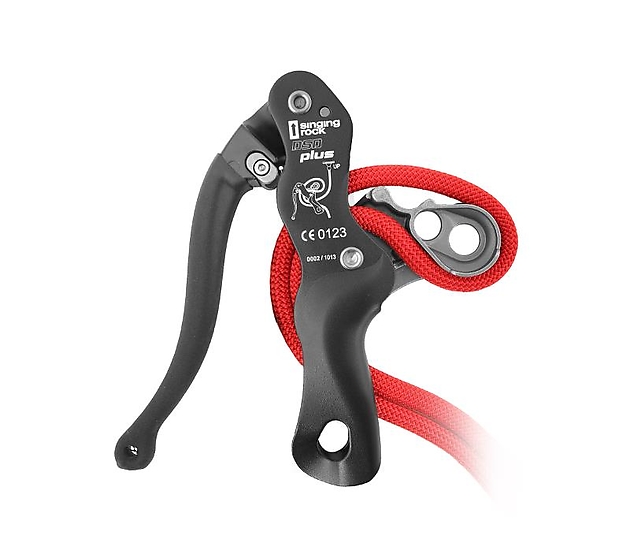

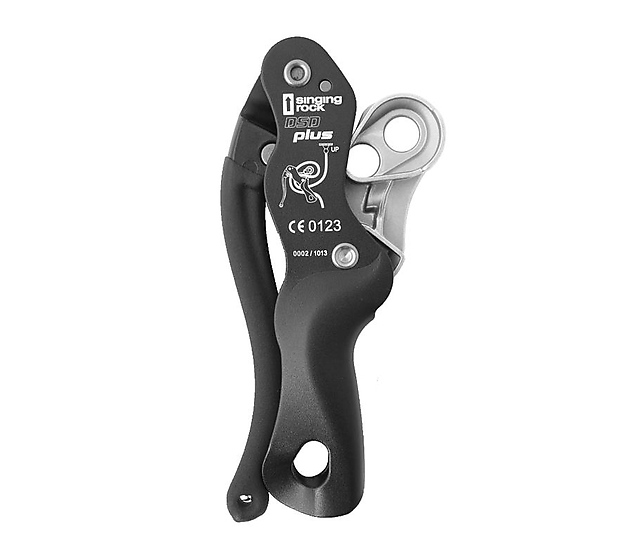

Descender with double locking and self-braking anti-panic system in case of accidental loss of descent control


  • the descender doesn’t have movable flanges; this makes it a robust and mistake-resilient device (quick insertion and release, no need to unclip it for rope insertion)
  • new cam tested for higher loads – enhanced braking in both stop positions
  • unique way of rope insertion; diminished possibility of incorrect insertion of the rope; even incorrect insertions will not result in a fall as the rope is blocked
  • sensitive and longer handle enables smooth descent without harmful rope twisting, gentle and progressive braking (enhanced press stop braking mode)
  • rubberized handle provides pleasant feeling, non slip and thermal insulation
  • ergonomically improved curved edges and longer flanges provide the user with a comfortable grip with the handle
  • integrated wear indicator
  • high strength plain bearing added to the pivoting cam
  • all parts in contact with the rope are made of stainless steel
    (it ensures minimum possible wear)

  • reduced force required on the handle

  • breaking loads in excess of 22 kN
  • increased maximum rated load to 200 kg
  • reduced slippage of the rope to 600 daN
  • for use with static ropes with diameter 9 – 12 mm


Load limits:
  • diameter of rope 9 mm ....................... maximum rated load 130 kg
  • diameter of rope 10 – 12 mm ............. maximum rated load 200 kg


Color: black
Weight: 421 g (14.9 oz)

Download

high resolution picture instructions of use

0123 EN 12841 - Type C
