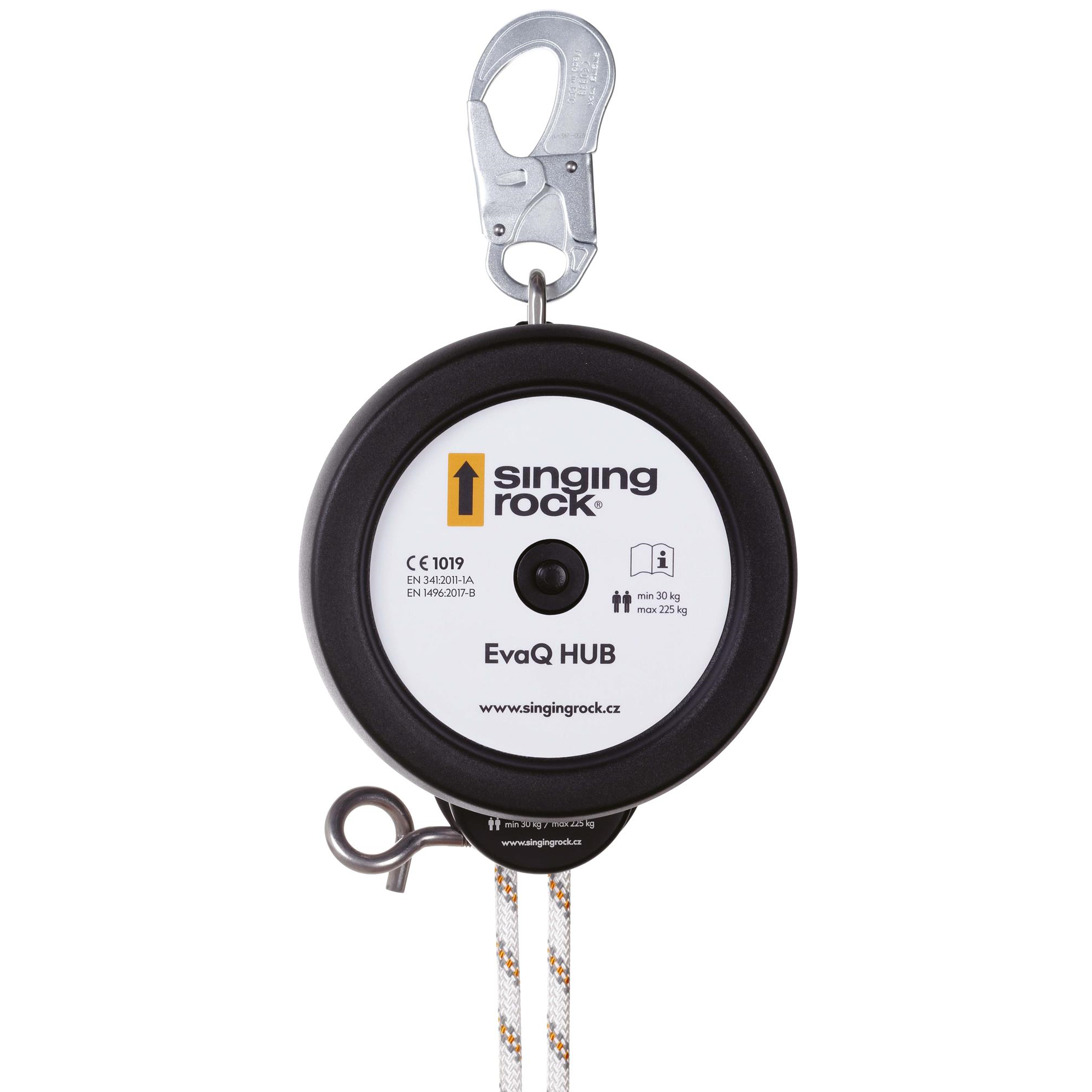

EVAQ HUB

EVAQ HUB / W1511X000

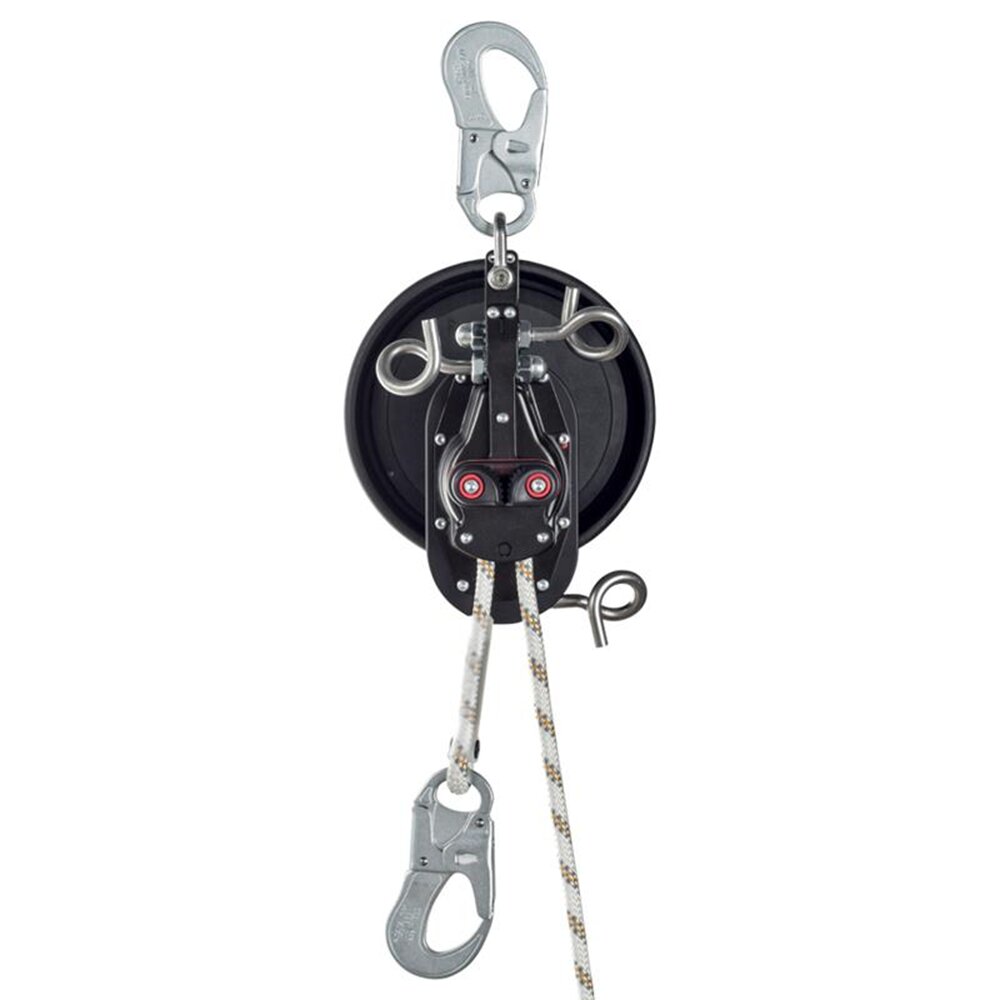

Descender and rescue device with lifting function for height rescue by fire fighters, industrial climbers and others when exposed to a danger at great heights such as cable cars, outdoor parks, wind power plants or skyscrapers. Also suitable for quick and easy rescue and even for self-rescue of many threatened people.

  • designed for a working load of 225 kg (2 persons)
  • automatic and redundant brake system consists of 2 fly wheel brakes
  • brake drums are made from steel for high resistance
  • equipped with a handwheel made of durable plastic for easy and save operation even in hard conditions and under a full load

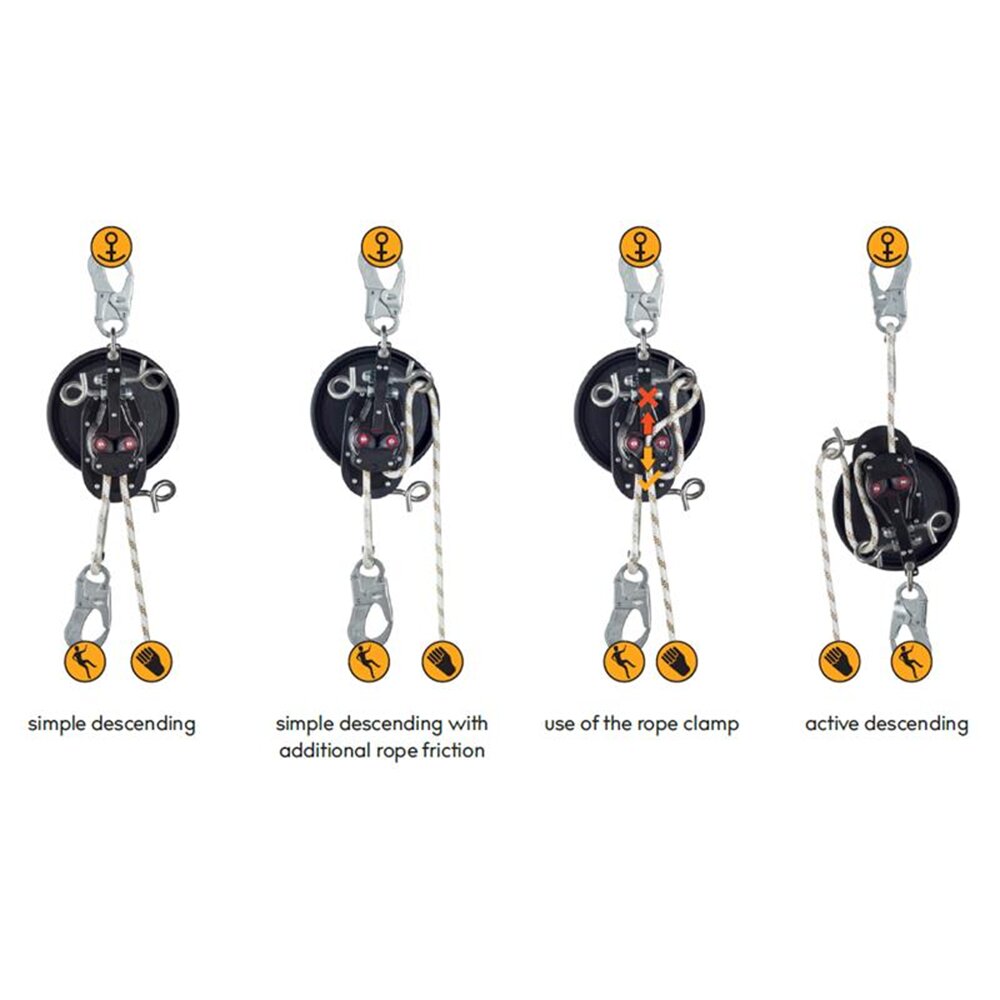

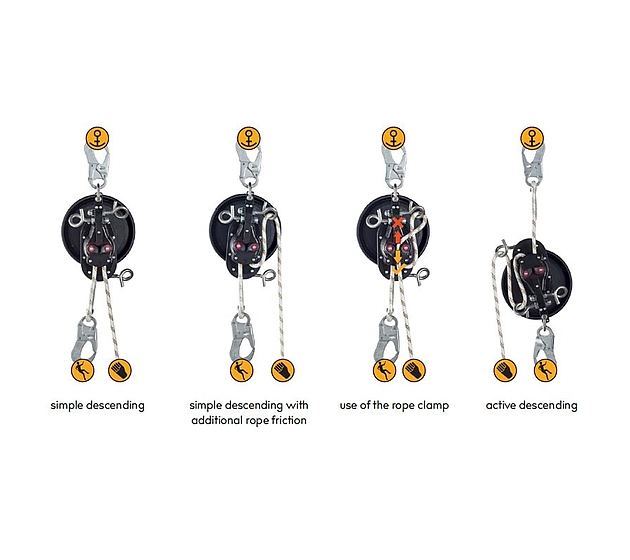

  • three stainless steel eyebolts ensure smooth descend speed control and multiple operation modes
  • back side rope clamp facilitates lifting operation
  • to make the lifting easier the device is equipped with a hexagon adapter for accu-drill connection
  • attachment point is equipped with a steel double trigger automatic locking connector with a gate opening of 21 mm for versatile and easy hanging
  • static polyamide kernmantle rope (acc. to EN 1891-A, ø 9.6 mm) can be up to 300 m long
  • both ends of the rope are equipped with a stitched eye and a steel double trigger automatic locking connector with a gate opening of 21 mm
  • when the device is stored in a sealed pack by Singing Rock an inspection is required every 10 years only

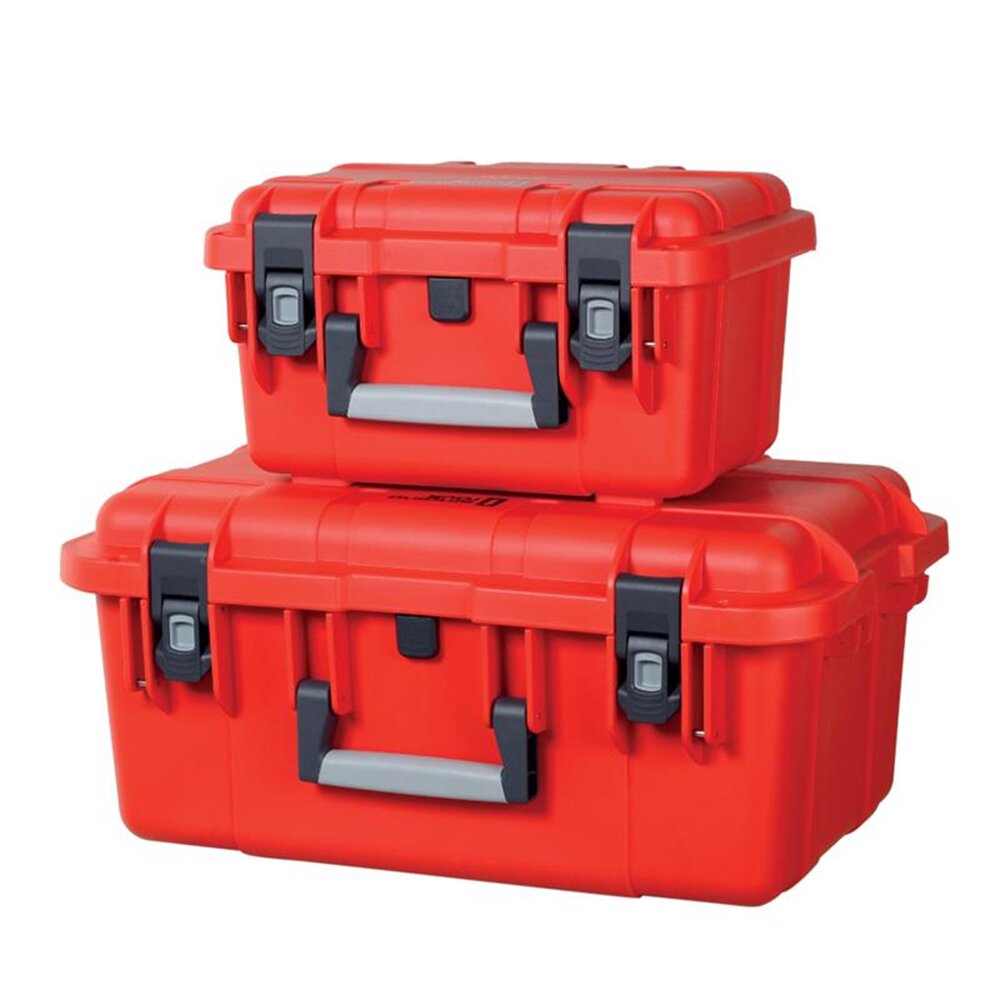

  • as an accessory, we also offer a shock and waterproof plastic box in two sizes with a volume of 17 and 46 litres

  • learn more about the EvaQ HUB device


Weight: 3.4 kg (121 oz) + rope
Length: descent height max. 300 m (985 ft)
Working load: 30 - 225 kg (66 - 495 lb) designed for 2 persons
Descending speed: approx. 0.8 m/s
Temperature range: -40 °C to +65 °C

Download

high resolution picture instructions of use

0511 EN 1496:2007-B EN 341:2011-1A

Related goods

  • EVACUATION TRIANGLE COMBI II

    EVACUATION TRIANGLE COMBI II

    Evacuation triangle with shoulder straps for the rescue of a person / UNI / EN 1497 • EN 1498

  • LAIKA

    LAIKA

    Dog harness intended for transport of the dog from a helicopter / max. load 150 kg

  • BABY RESCUE BAG

    BABY RESCUE BAG

    Rescue bag for the children evacuation / for children up to 110 cm and 25 kg / EN 1497

  • FLASH

    FLASH

    Professional protective helmets / three models according to the working situation / size 53-63 cm

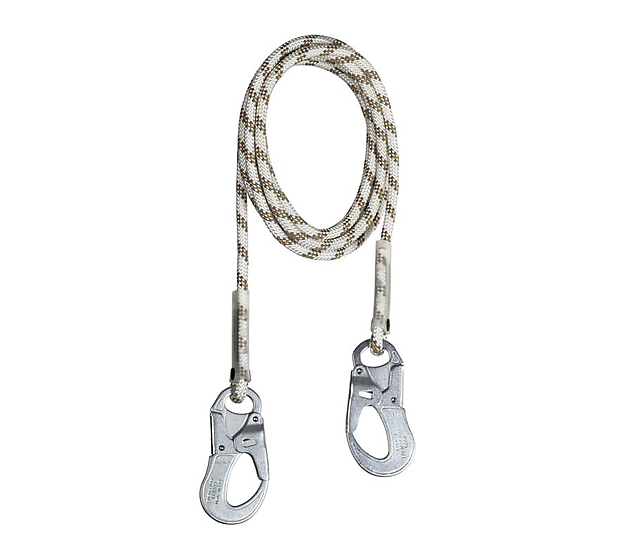

  • EVAQ ROPE

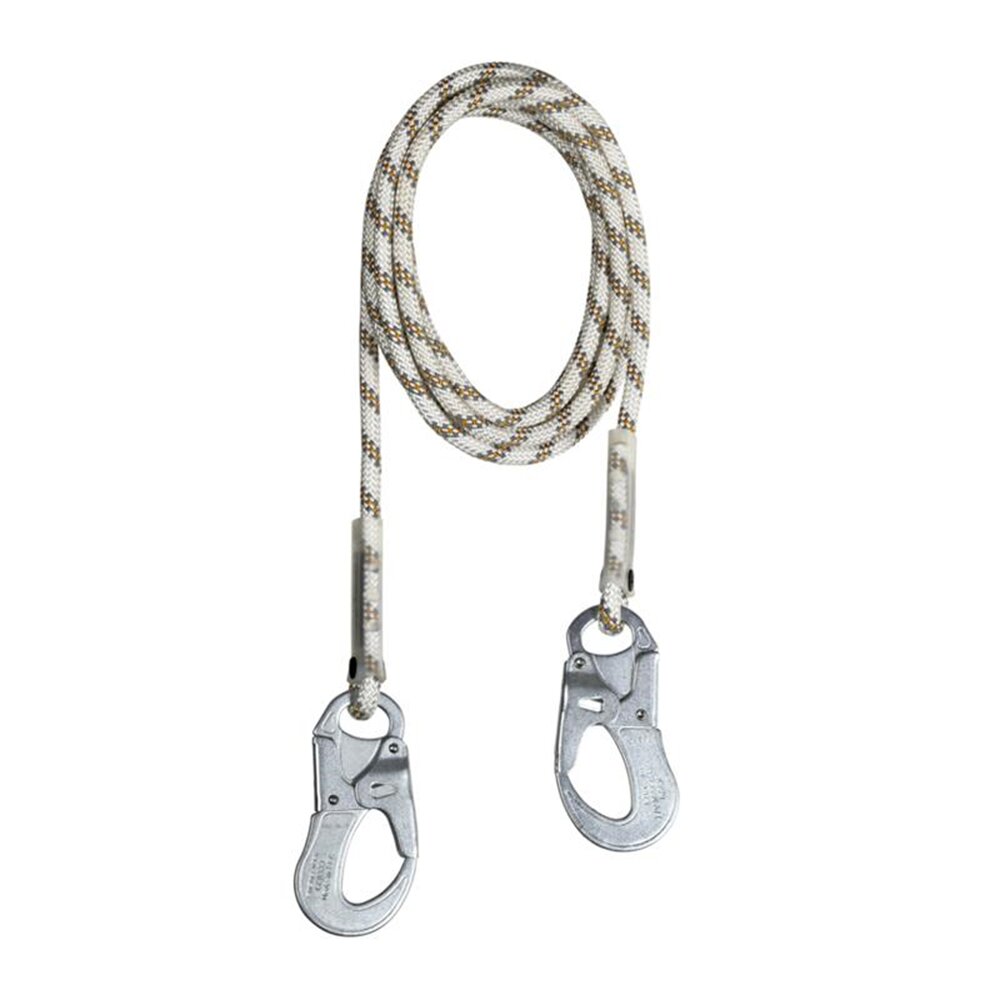

    EVAQ ROPE

    Rope for EvaQ devices / both ends equipped with stitched-in connectors / max. length 300 m

  • PROTECTIVE CASE

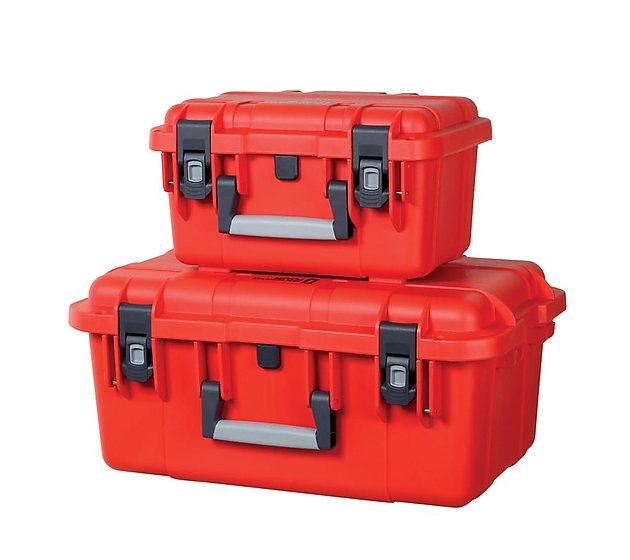

    PROTECTIVE CASE
