EN 12277 Type B - Small body harness

This harness is specially designed for people with an undeveloped or ill-defined waist and with weight maximum 40 kg.

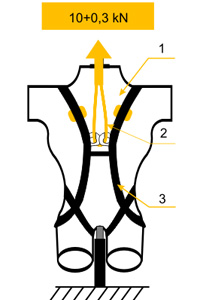

Head up position

68779

The dummy is in the head up position.

Zatěľujeme rovnoměrně stoupajícím zatíľením v intervalu 2+/-0,25min. aľ na hodnotu 10+0,3kN.

This load is applied for 1+/-0,25min. and then is released completely over a maximum of 1 min.

of 1 min.

Image description:
1 - dummy for children harnesses
2 - rope EN 892
3 - full body harness type B

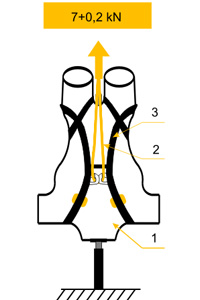

Head down position

The dummy is in the head down position. 68778
We apply a force increasing gradually to 7+0,3kN over a period of 2+/-0,25min.

This load is applied for 1+/-0,25min. and then is released completely over a maximum of 1 min.

Immediate load increasing gradually to 7+0,3kN follows holding the force 3+/-0,25min.

Image description:
1 - dummy for children harnesses
2 - rope EN 892
3 - full body harness type B
