EN 12277 Type A - Full body harness

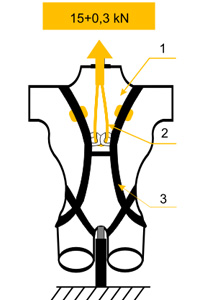

91817Head up position

The dummy is in the head up position.

Apply a force increasing gradually to 15+0,3kN over a period of 2+/-0,25min.

This load is applied for 1+/-0,25min. and then is released completely over a maximum of 1 min.

Immediate load increasing gradually to 15+0,3kN follows holding the force 3+/-0,25min.

Image description:
1 - dummy
2 - rope EN 892
3 - full body harness EN 12277 type A

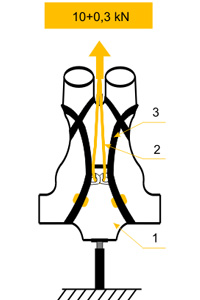

Head down position

68776The dummy is in the head down position.

Apply a force increasing gradually to 10+0,3kN over a period of 2+/-0,25min.

This load is applied for 1+/-0,25min. and then is released completely over a maximum of 1 min.

Immediate load increasing gradually to 10+0,3kN follows holding the force 3+/-0,25min.

Image description:
1 - dummy
2 - rope EN 892
3 - full body herness EN 12277 type A
