SIR

SIR / K032SIR00
Robust multipurpose device for use in industrial rope access

  • its functionality spans the range from rope descender and abseiling device through semiautomatic belay and fall-arrest device to work positioning device for use on roofs and edges
  • unimpeded movement of the cam
  • by pulling onto the working end of the rope the cam engages and jams the rope

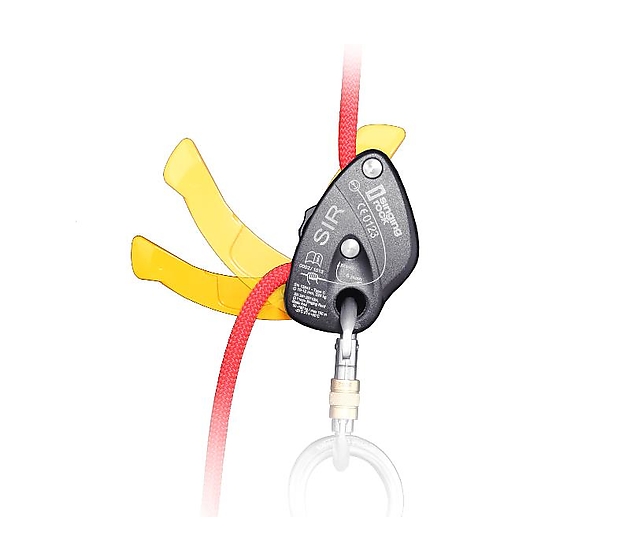

  • by pulling the lever the cam gradually releases the rope
  • if the lever is pulled down to its terminal position the double-stop function is triggered which blocks the rope again
  • spring loaded pin for impeded swinging of the cam

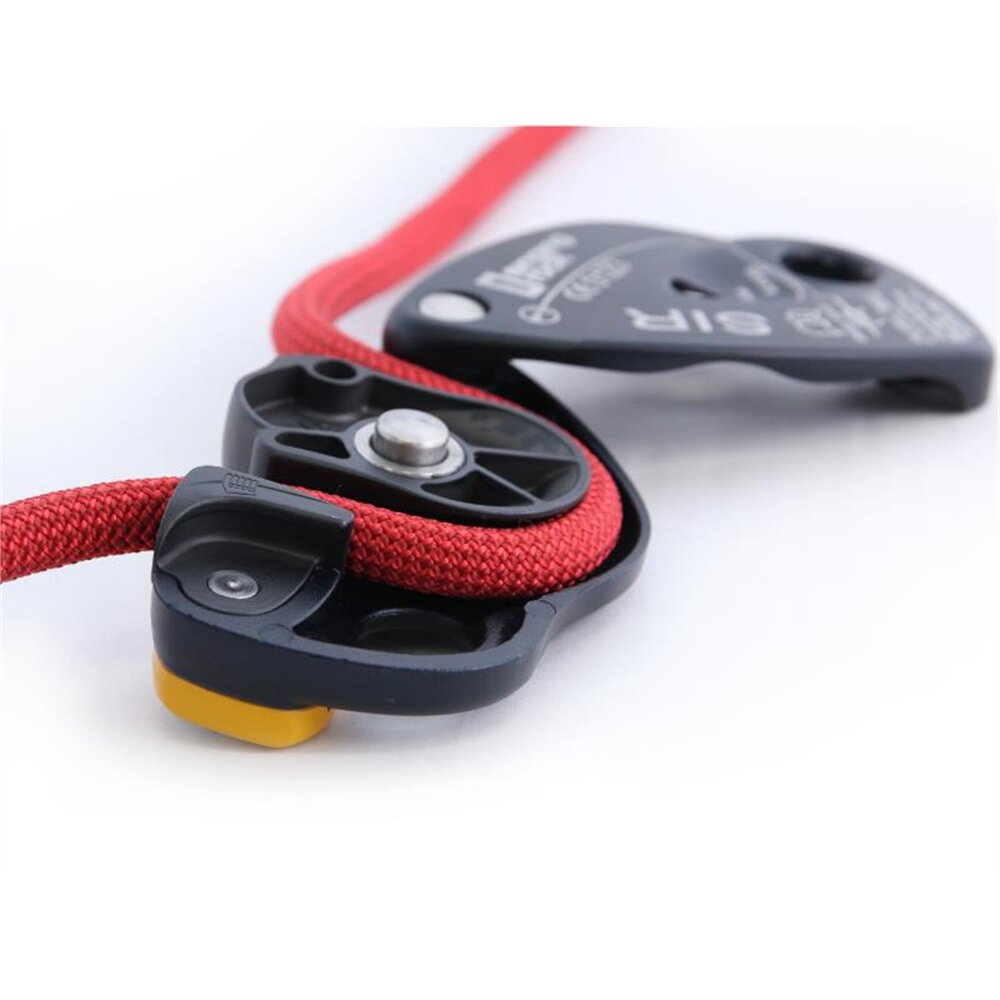

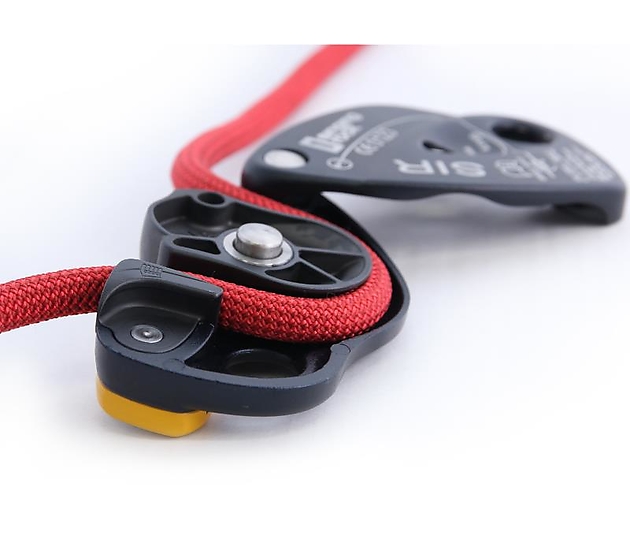

  • easy and intuitive installation of the device onto the rope
    (watch the pictograms and read the instruction of use)
  • no hidden mechanisms for easy inspection
  • metal lever under all industrial conditions tested for 225 kg according to EN 12841 (rope access)

  • EN 12841-C: max. load 225 kg, with static rope 10-12 mm

  • EN 341-A: load range 30-180 kg (max. descent distance 190 m),
    with SINGING ROCK 11 mm static rope STATIC R44 11.0


Color: black body, yellow lever
Weight: 365 g (12.9 oz)
Material: mechanism - stainless steel, lever - coated steel, body - light alloy

Download

high resolution picture instructions of use

0123, EN 341-A, EN 358, EN 795-B, EN 12841-C
